Exploded View : Removal

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

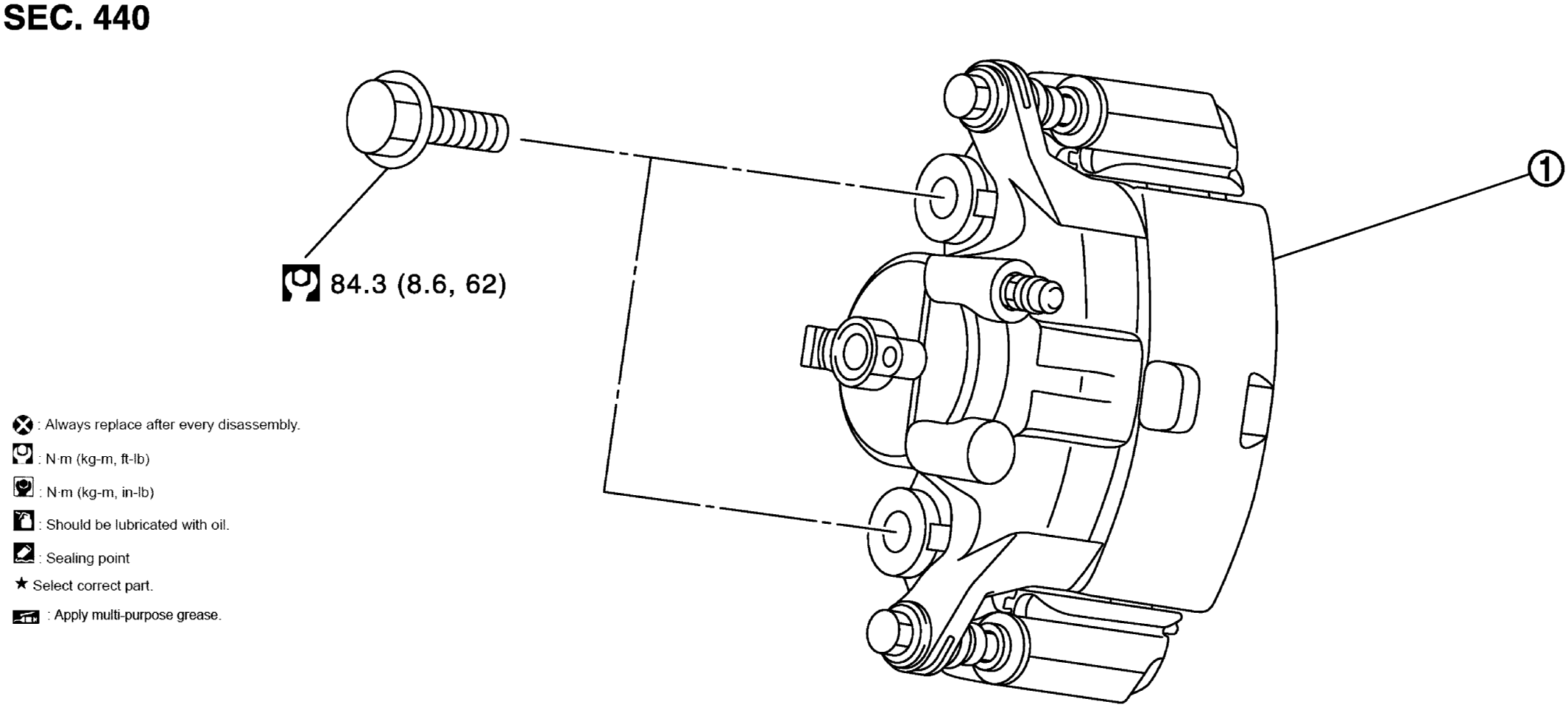

Fig 1: Front Brake Caliper Assembly With Torque Specifications
GNSJPFIA0510GB-510Courtesy of NISSAN NORTH AMERICA, INC.
1. Brake caliper
