Ignition Timing: Inspection

  1. CHECK IGNITION TIMING

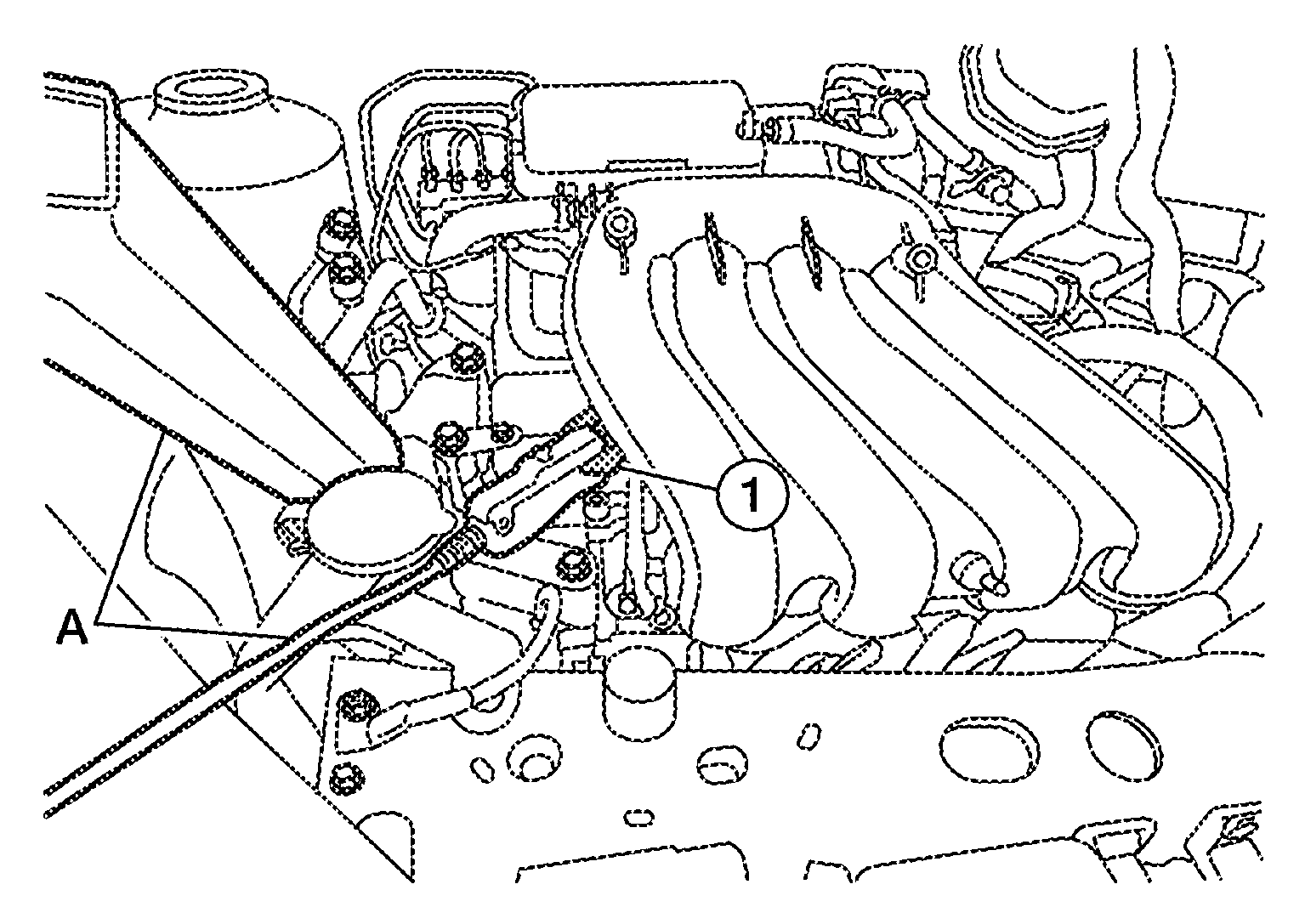

    1. Attach timing light (A) to loop wire (1) as shown below.
      GNSDB123316Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.
      G06537506Courtesy of NISSAN NORTH AMERICA, INC.

      1

      : Timing indicator

    INSPECTION END
