Removal and Installation: Removal

CAUTION: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to Description .
  1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Removal and Installation (Battery) .
  2. Remove instrument lower panel LH. Refer to Removal and Installation .

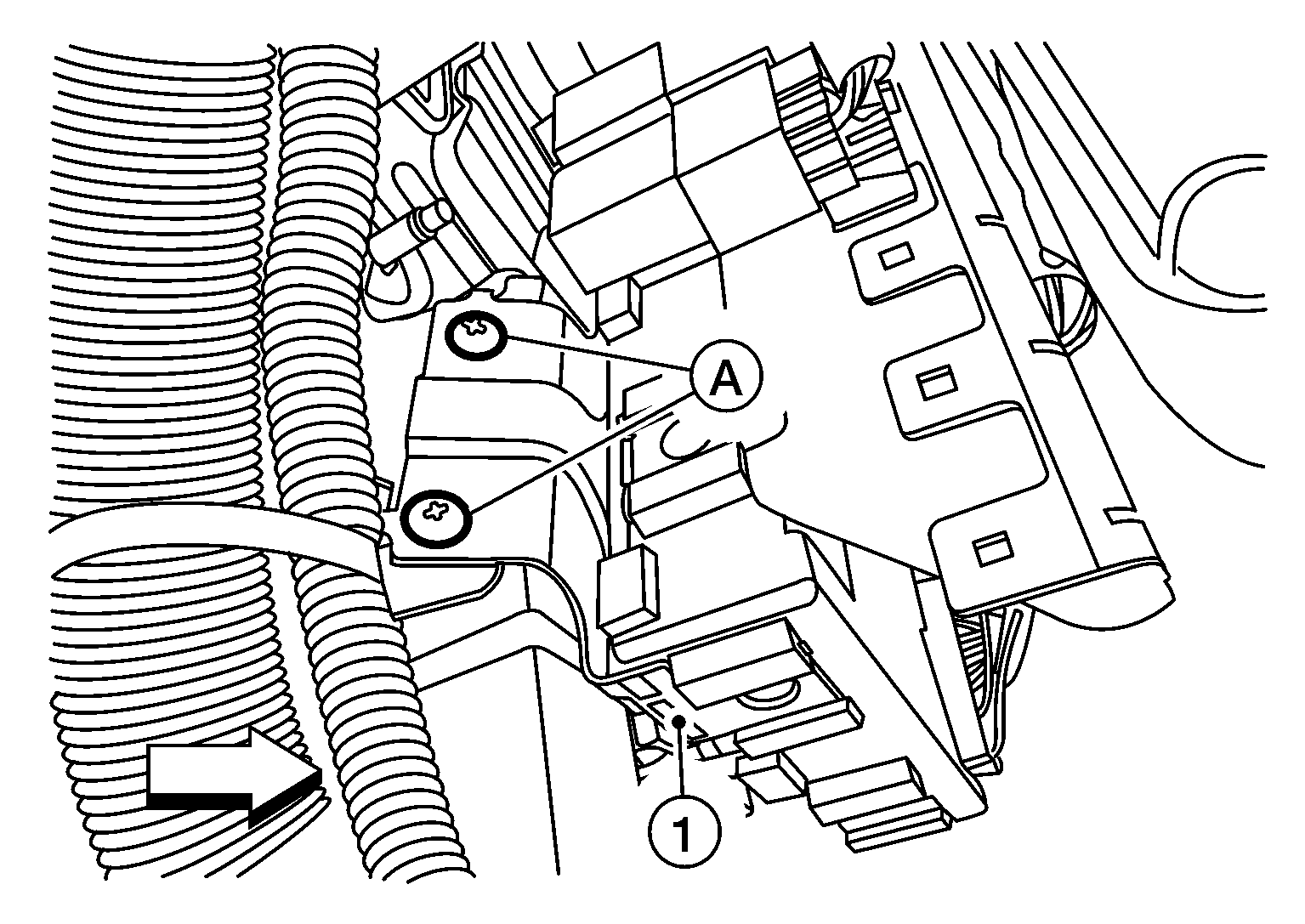

  3. Remove screws (A) and remove the BCM (1) from the steering member and position aside.
    GNSALMIA0656Z-656Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  4. Disconnect the harness connectors from the BCM.
  5. Remove relays from relay bracket.
  6. Remove relay bracket from BCM to transfer to new BCM.
