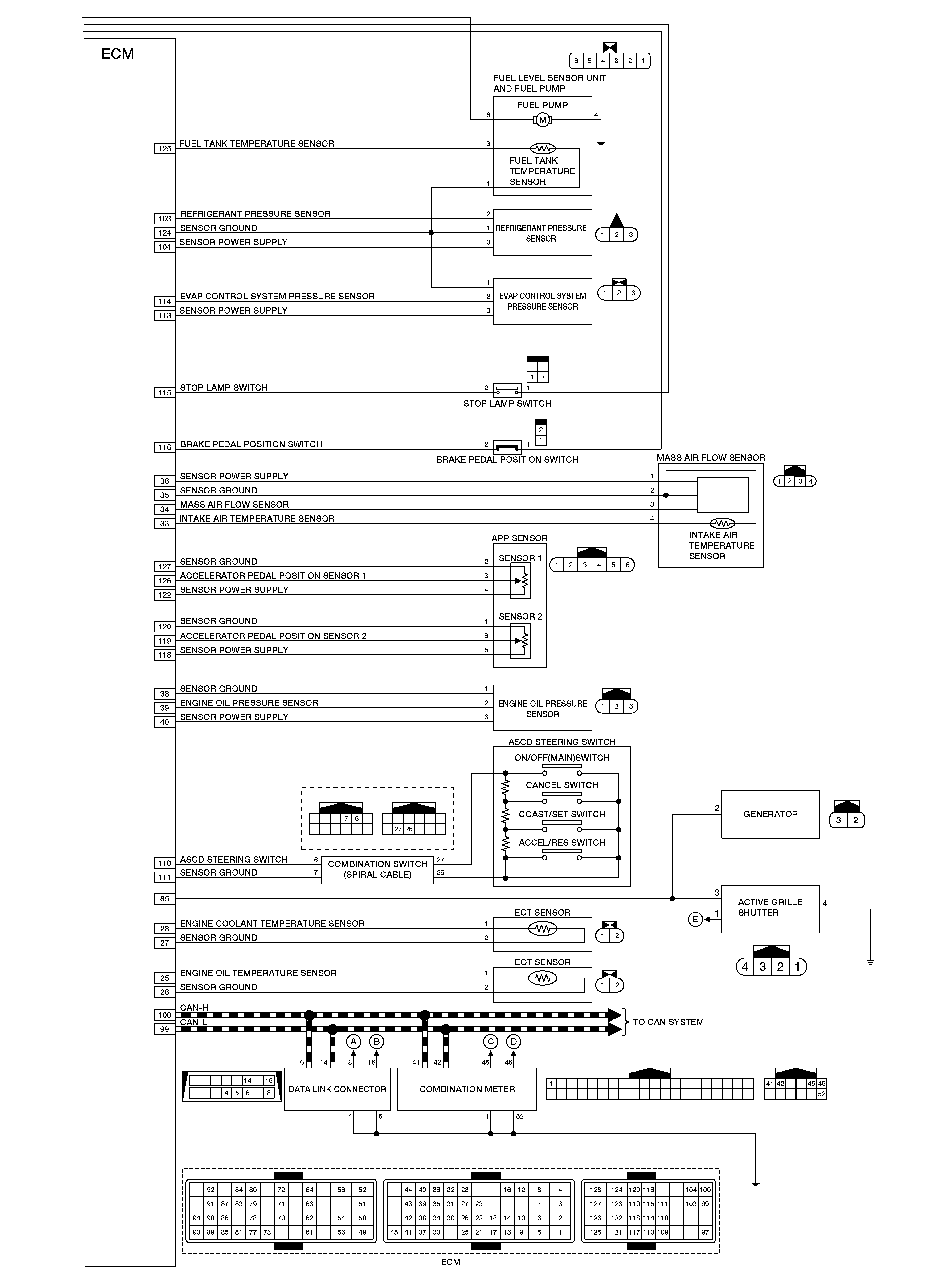

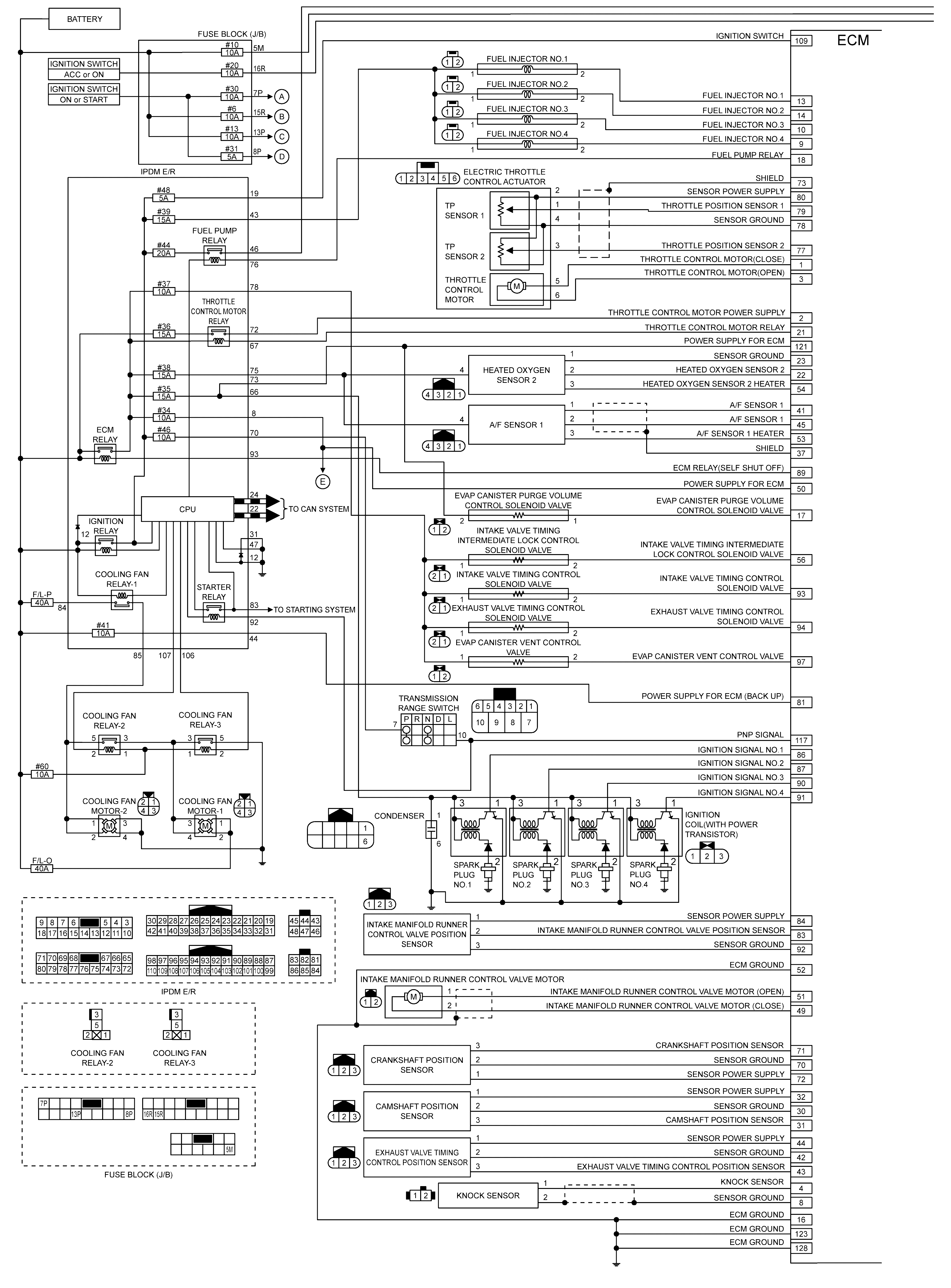

Home >> Nissan-Datsun >> 2019 >> Rogue SL, AWD >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (Introduction And Basic Inspection) (Except Hybrid) >> System Description >> System >> Engine Control System >> Circuit Diagram
