Exploded View

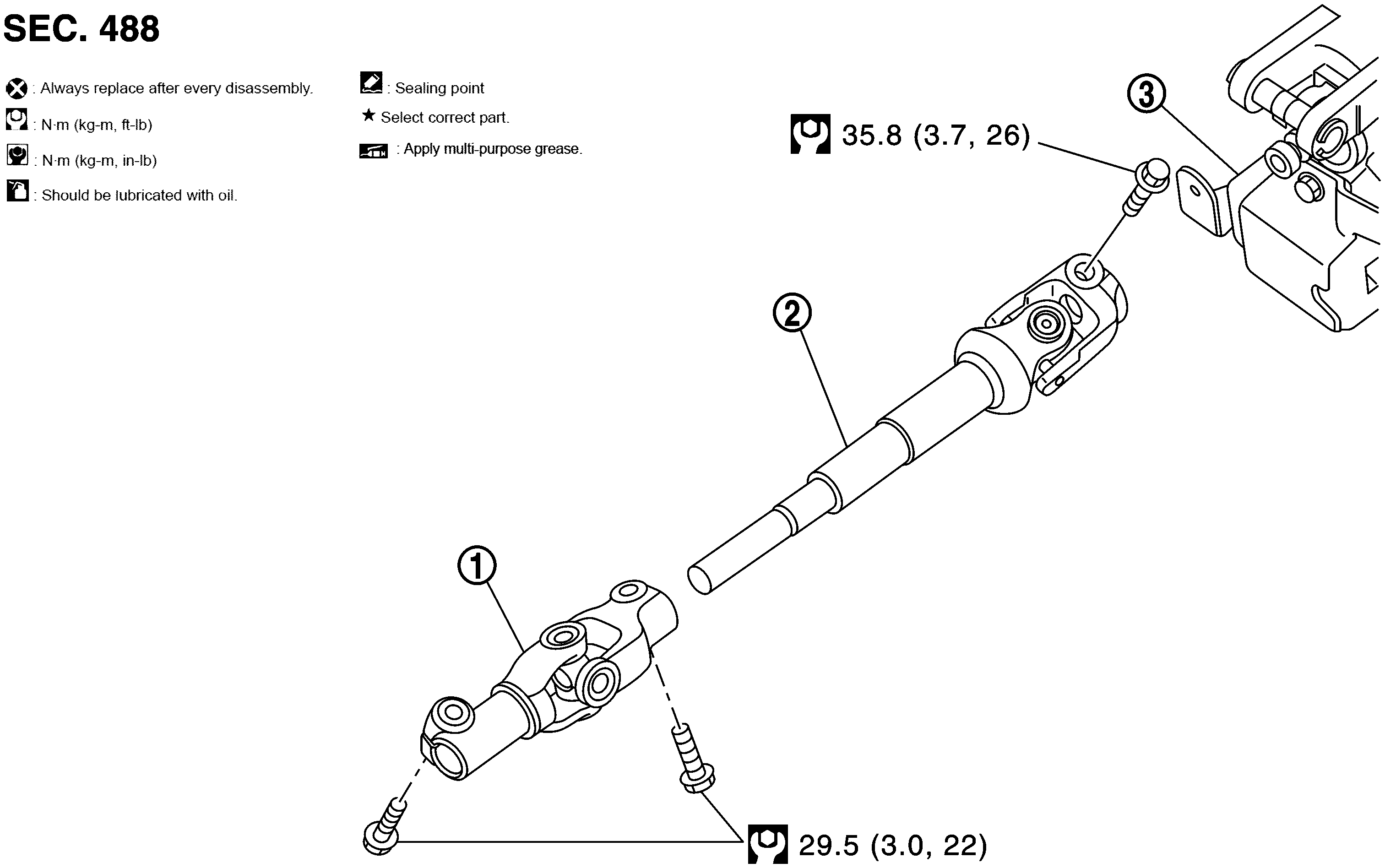

Fig 1: Steering Shaft Components With Torque Specification

GNSJSGIA0979GB-979

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lower joint

2.

Intermediate shaft

3.

Steering column
