Removal and Installation: Removal

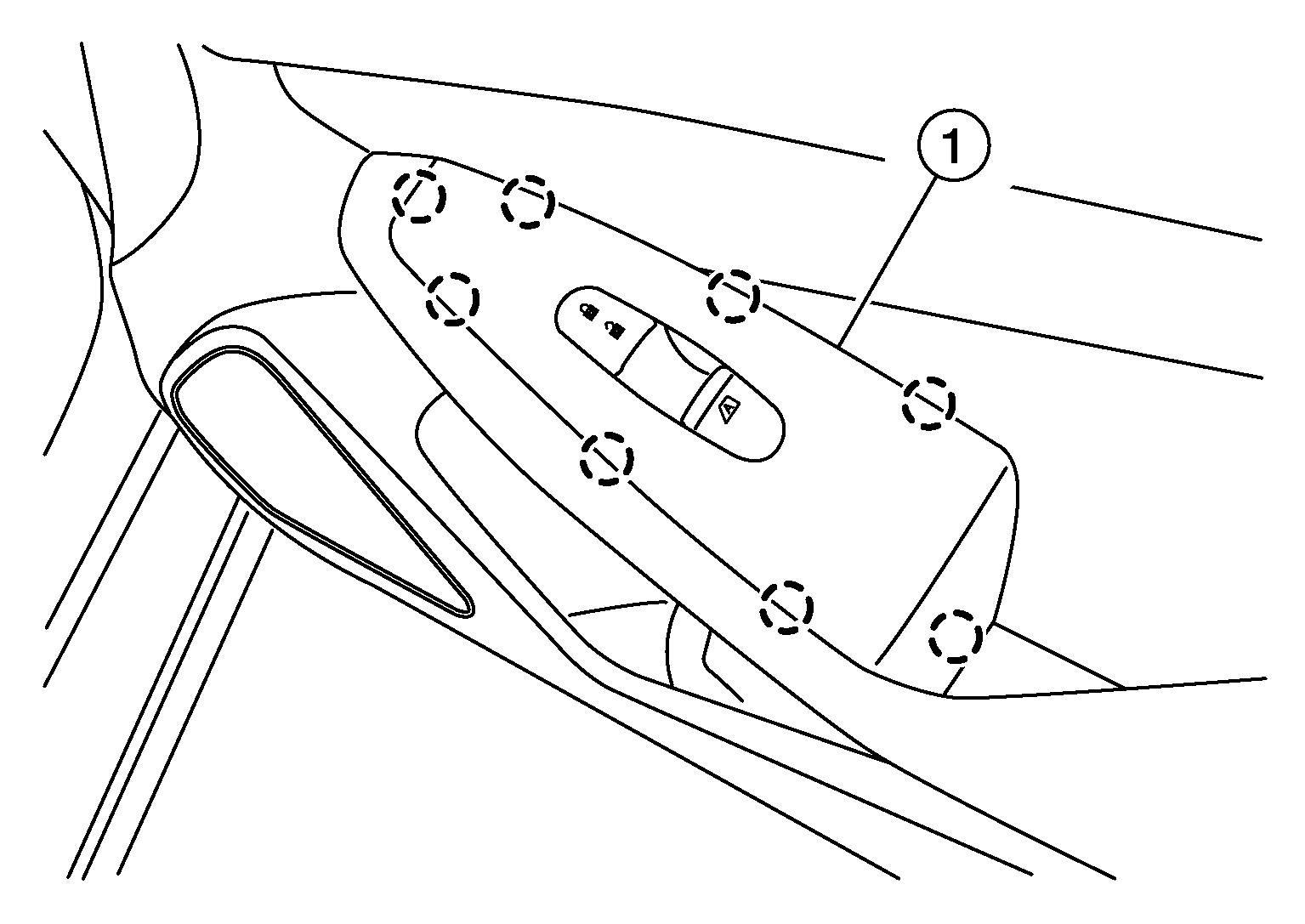

  1. Release pawls using a suitable tool and remove power window and door lock/unlock switch finisher RH (1).
    GNSALKIA3984Z-984Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

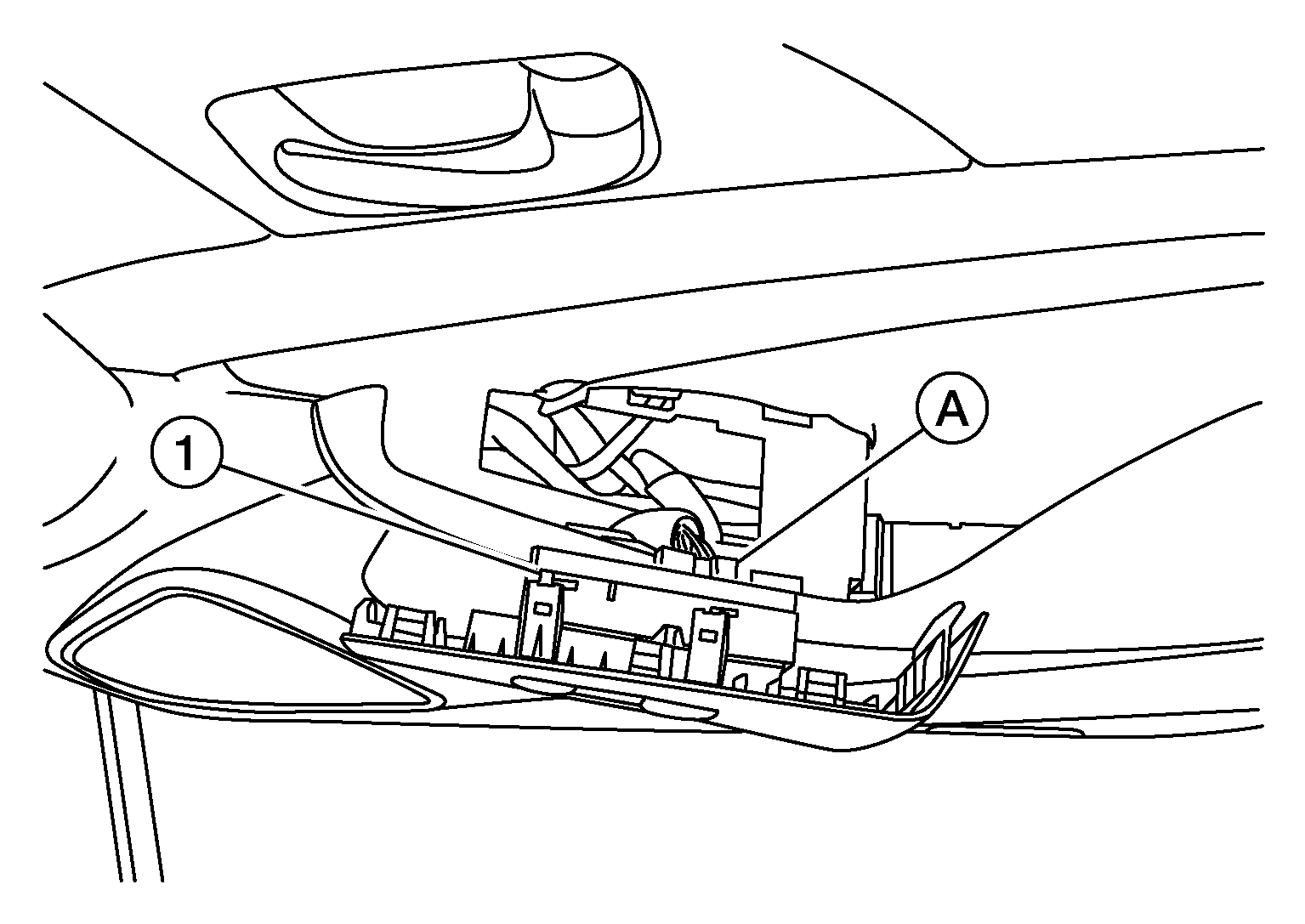

  2. Disconnect the harness connector (A) from the power window and door lock/unlock switch RH (1) and remove.
    GNSALKIA3985Z-985Courtesy of NISSAN NORTH AMERICA, INC.

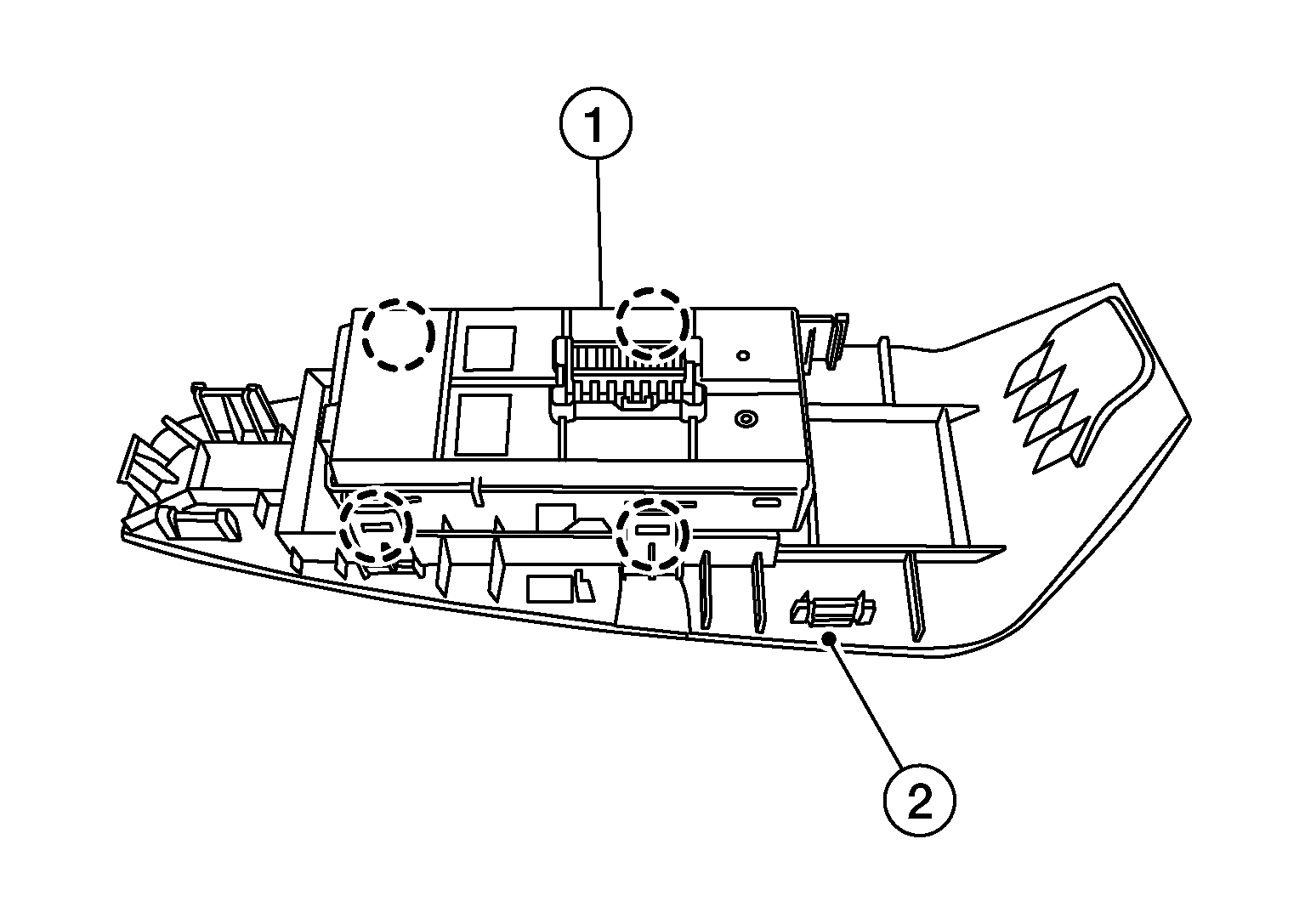

  3. Release pawls, then remove power window and door lock/unlock switch RH (1) from switch finisher (2).
    GNSALKIA3986Z-986Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
