Exploded View

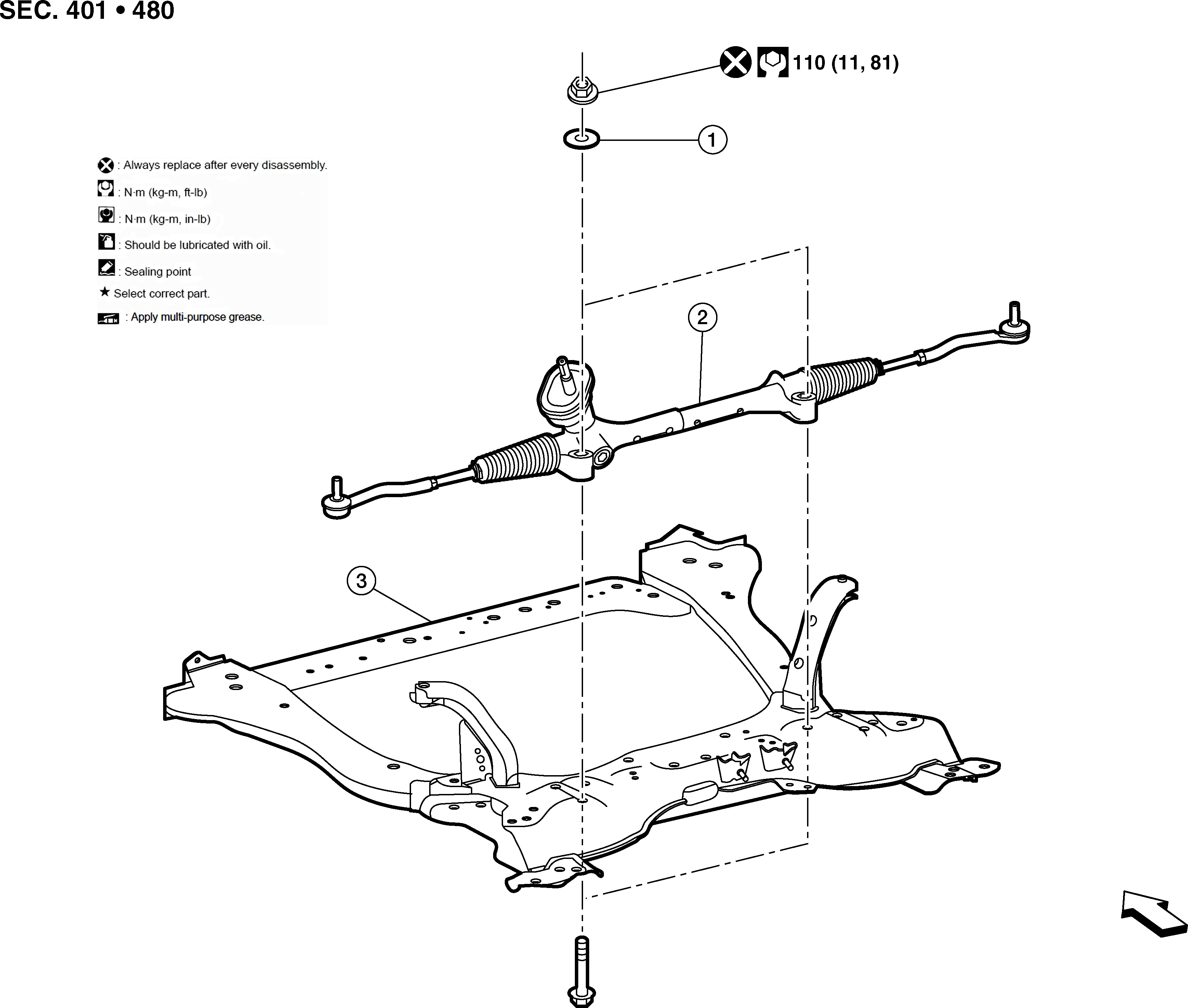

Fig 1: Steering Gear And Linkage Unit Removal And Installation With Torque Specifications
GNSAWGIA0502Z-502Courtesy of NISSAN NORTH AMERICA, INC.

1.

Washer

2.

Steering gear assembly

3.

Front suspension member

SYMBOL />

Front
