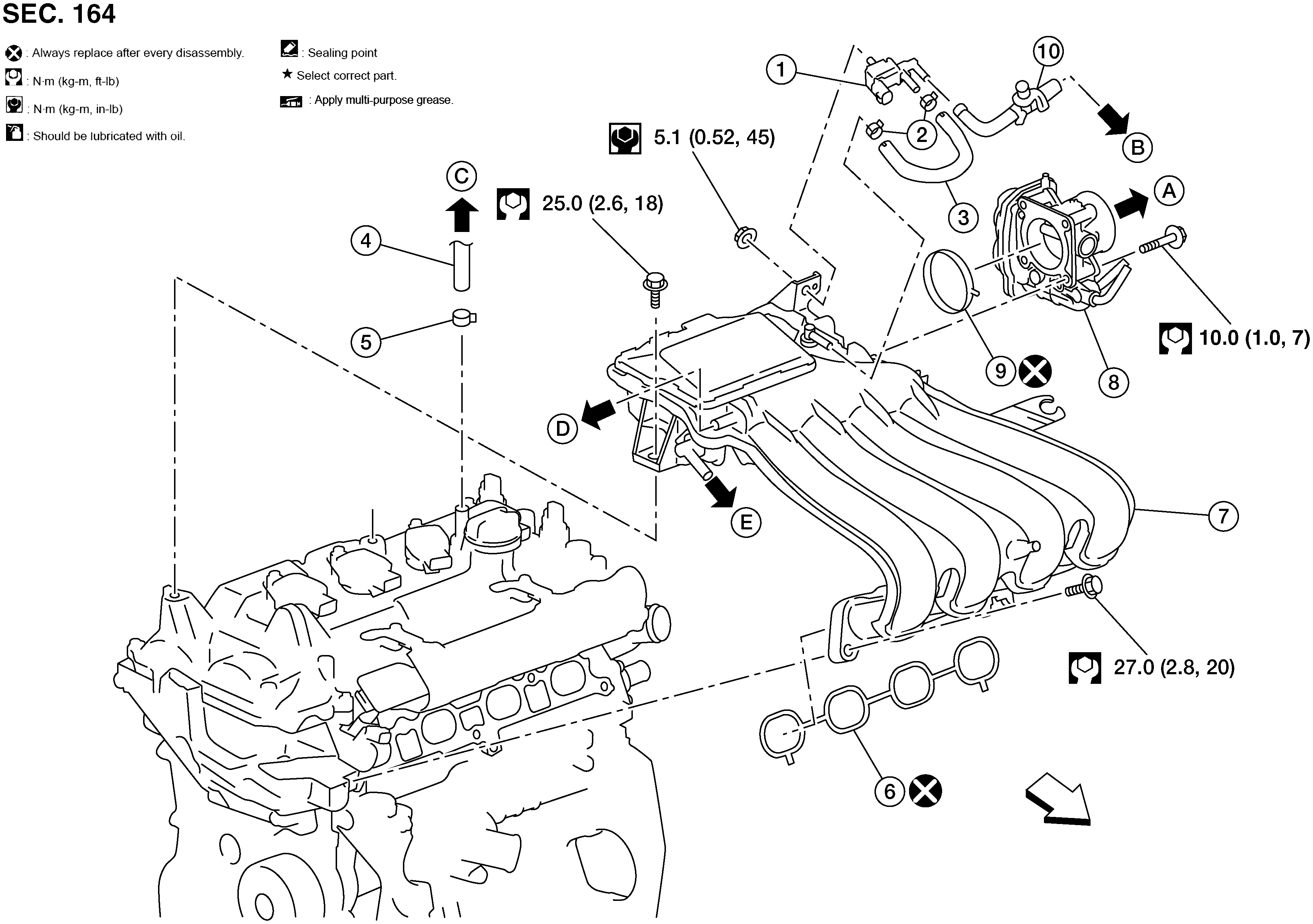

Exploded View

1.

EVAP canister purge volume control solenoid valve

2.

Hose clamp

3.

Vacuum hose

4.

PCV hose

5.

Hose clamp

6.

Intake manifold gasket

7.

Intake manifold

8.

Electric throttle control actuator

9.

Electric throttle control actuator gasket

10.

EVAP service port

A.

To air duct. Refer to Exploded View .

B.

To centralized under-floor piping. Refer to Exploded View .

C.

To air duct. Refer to Exploded View .

D.

To brake booster. Exploded View .

E.

To PCV valve in rocker cover. Refer to Exploded View .

Front
