Exploded View

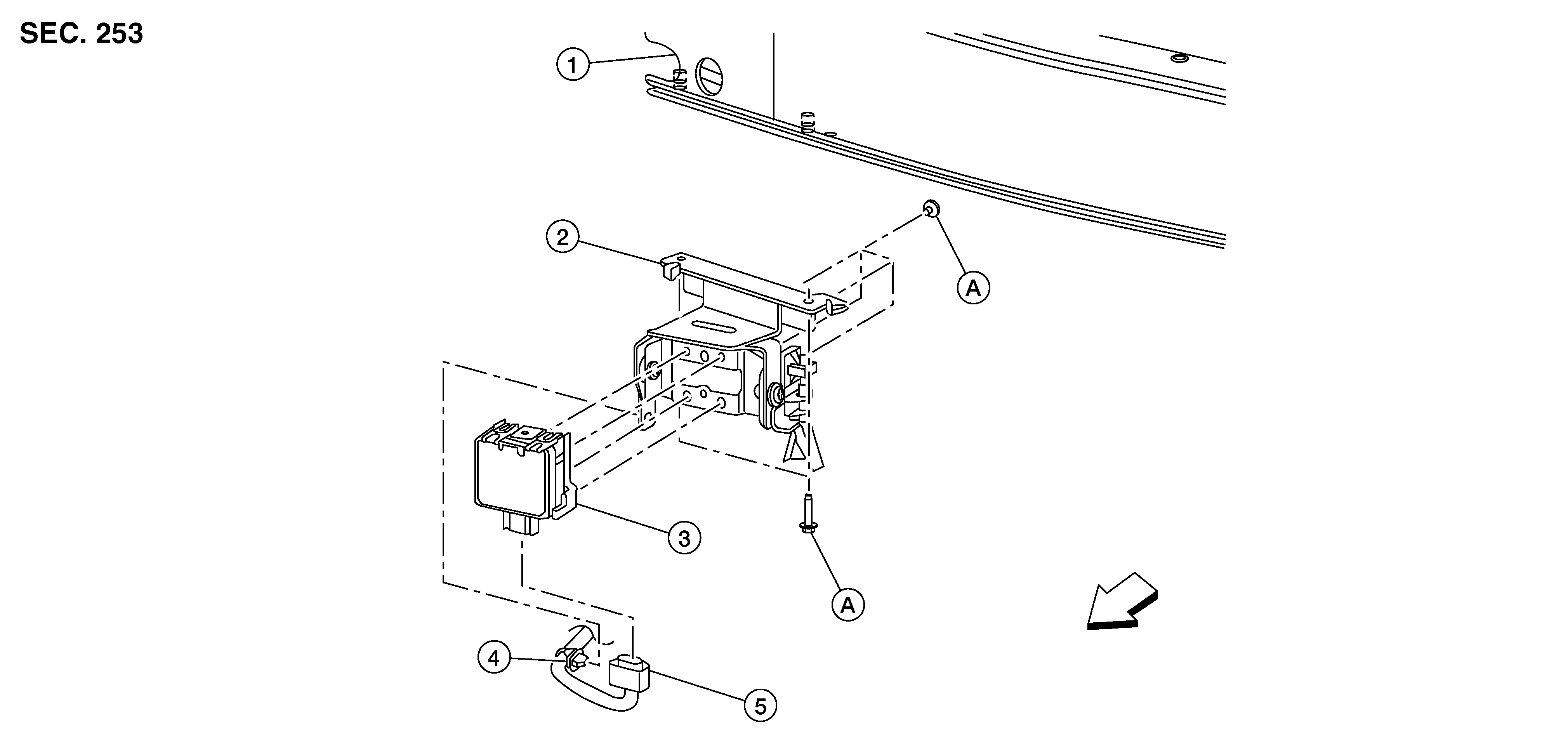

GNSAWOIA0127Z-127Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front bumper reinforcement

2.

ICC sensor bracket

3.

ICC sensor

4.

Clip

5.

ICC sensor harness connector

A.

Refer to INSTALLATION

SYMBOL

Front
