Voluntary Recall Campaign 2018 Gt-R; Av Control Unit (Infotainment) Software Update (NTB19-108)

WARNING: This page is about the GT-R Nismo, which is a different variant/trim than selected.
Publication date: 2019-12-05
Reference number: NTB19-108

VOLUNTARY RECALL CAMPAIGN 2018 GT-R; AV CONTROL UNIT (INFOTAINMENT) SOFTWARE UPDATE

VOLUNTARY RECALL CAMPAIGN 2018 GT-R; AV CONTROL UNIT (INFOTAINMENT) SOFTWARE UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): NTB19-108, Date of Issue:  December 05, 2019
NISSAN: 2018 GT-R
CLASSIFICATION: EL19-061
CAMPAIGN ID #: R1911
NHTSA #: 19V-654
APPLIED VEHICLES: 2018 GT-R (R35)

APPLIED VEHICLE

2018 GT-R (R35)

Check Service COMM or Dealer Business Systems (DBS)

National Service History to confirm campaign eligibility.

INTRODUCTION

Nissan is conducting this voluntary recall campaign on certain specific model year 2018 GT-R vehicles to update the AV Control Unit (Infotainment) software. This service will be performed at no charge to the customer for parts or labor.

IDENTIFICATION NUMBER

Nissan has assigned identification number R1911 to this campaign. This number must appear on all communication and documentation of any nature dealing with this campaign.

DEALER RESPONSIBILITY

It is the dealer's responsibility to check Service COMM or Dealer Business Systems (DBS) National Service History for the campaign status on each vehicle falling within the range of this voluntary recall which for any reason enters the service department. This includes vehicles purchased from private parties or presented by transient (tourist) owners and vehicles in a dealer's inventory. Federal law requires that new vehicles in dealer inventory which are the subject of a recall must be corrected prior to sale. Failure to do so can result in civil penalties by the National Highway Traffic Safety Administration.  While federal law applies only to new vehicles, Nissan strongly encourages dealers to correct any used vehicles in their inventory before they are retailed.

REQUIRED SPECIAL TOOL

SD CARD J-52812-27

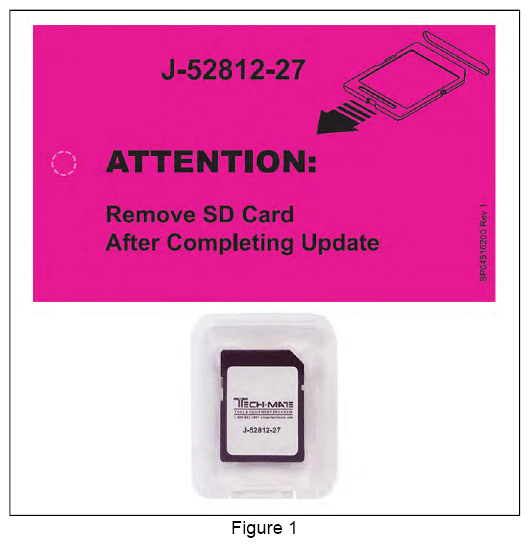

  • Special tool SD Card J-52812-27 has been shipped to each dealer (see Figure 1).
  • Additional SD cards are available from Tech.Mate: nissantechmate.com or 1-800-662-2001.
G16668367
IMPORTANT: It is highly recommended that the provided campaign SD card, J-52812-27, be used.

HINT:

  • If unavailable, the reprogramming software may be downloaded onto special tool SD card J-52727-2 using the Infotainment Software Download procedure.
    • Special tool SD card J-52727-2 has also been shipped to each dealer.
    • Click here  to access the Infotainment Software Download procedure. After the software has been downloaded, continue to step 1 in this bulletin.

SERVICE PROCEDURE

UPDATE AV CONTROL UNIT

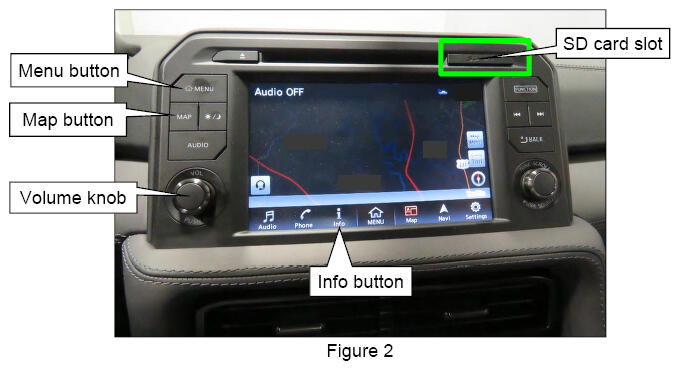

NOTE: Refer to Figure 2 below for location of controls and SD card slot.
G16668368
  1. Make sure the MAP SD card (not the software update card) is inserted in the SD card slot before starting the software update procedure.
  2. Turn the ignition to ON/ACC.
  3. Turn the hazard warning lamps ON to prevent the BCM from entering battery saver mode.
  4. Ensure the map is displayed on the screen by pressing the MAP button.
  5. Ensure the audio system is OFF (Audio OFF should be displayed in the top left corner of the MAP screen as shown in Figure 2).
  6. Access the System Diagnostic Menu  .

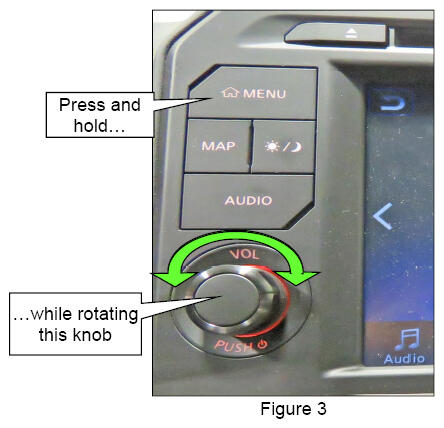

    • Press and hold down the MENU button and at the same time rotate the volume knob (Figure 3) more than three clicks in each direction (back and forth) until System Diagnostic Menu  displays (Figure 4).
      NOTE: The audio system must be OFF in order to enter the System Diagnostic Menu  .
    G16668369

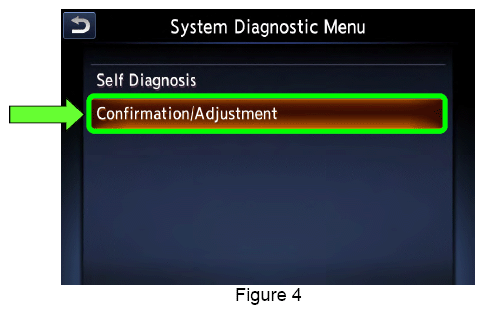

  7. Select Confirmation/Adjustment  (Figure 4).
    G16668370

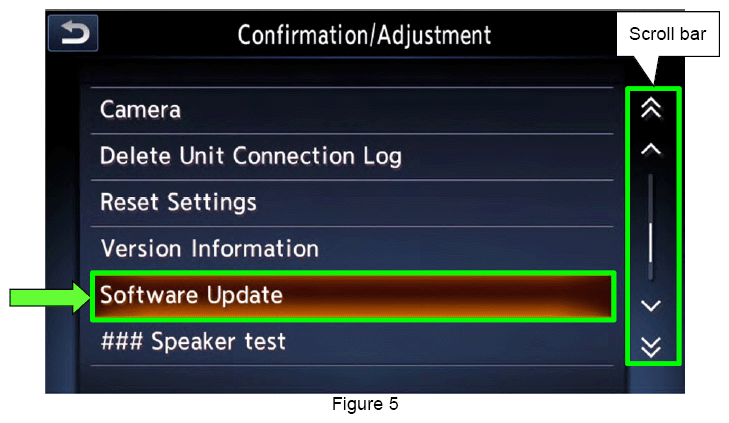

  8. Use the scroll bar to scroll down, and then select Software Update  (Figure 5).
    G16668371

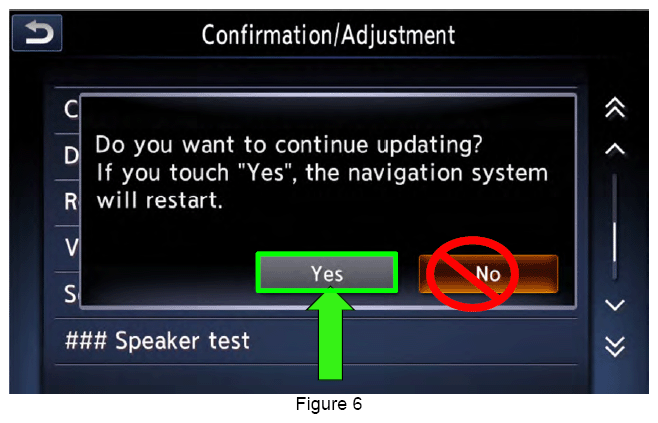

  9. Select YES  (Figure 6).
    • The system will reboot automatically.
      G16668372

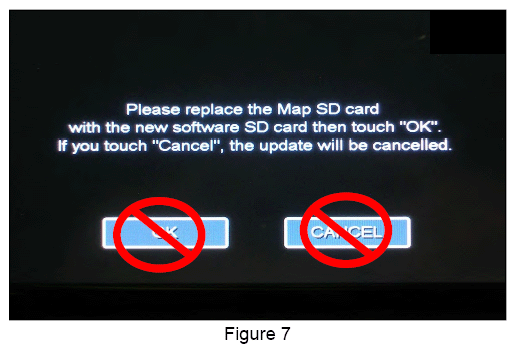

    • The reboot is complete when the message in Figure 7 displays. DO NOT select "OK" or "CANCEL" at this time.
    G16668373
  10. Remove the MAP SD card.
    • Refer to Figure 2 on page 3 for the SD card location.
    • The SD card slot has a small cover. To access the MAP SD card, open the cover with a suitable tool.
    • Push on the MAP SD card, and then it will eject.

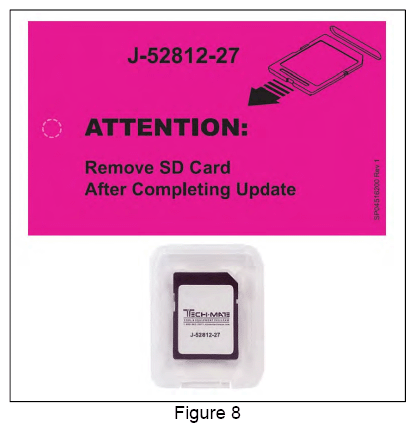

  11. Install special tool J-52812-27 (provided; Figure 8) into the SD card slot.
    G16668374

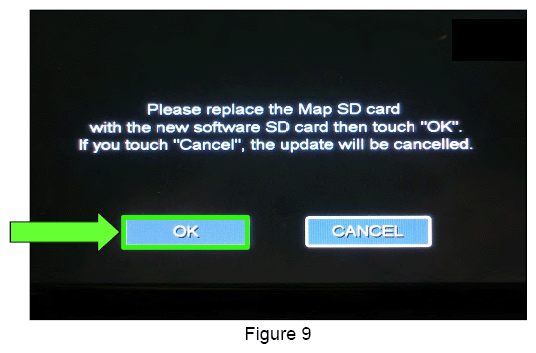

  12. Select OK  (Figure 9).
    G16668375

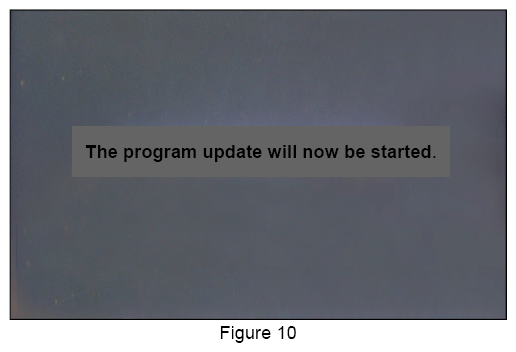

    • Once OK has been selected, the message in Figure 10 should appear.
      G16668376

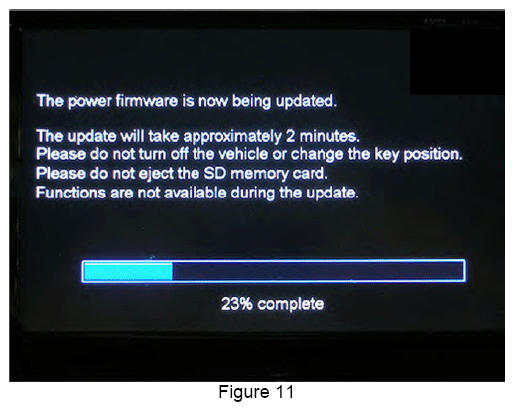

    • An update status progress bar will appear (Figure 11).
    • The software update will take approximately 5-7 minutes.
      G16668377

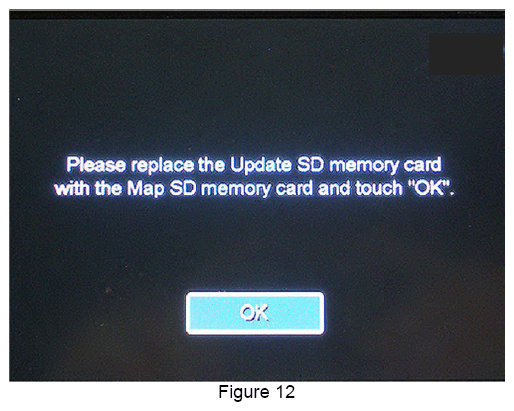

    • After the update has completed, the screen in Figure 12 should display.
    G16668378
  13. Remove J-52812-27 from the SD card slot.
  14. Insert the MAP SD card.

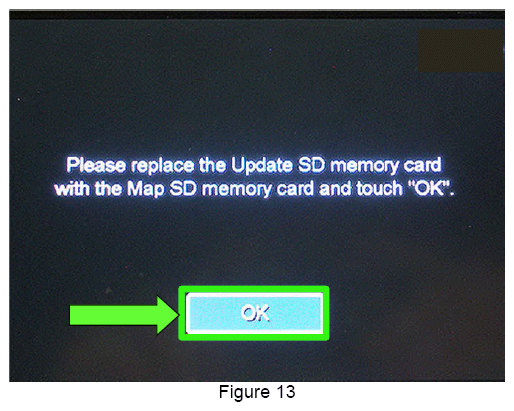

  15. Select OK  (Figure 13).
    G16668379

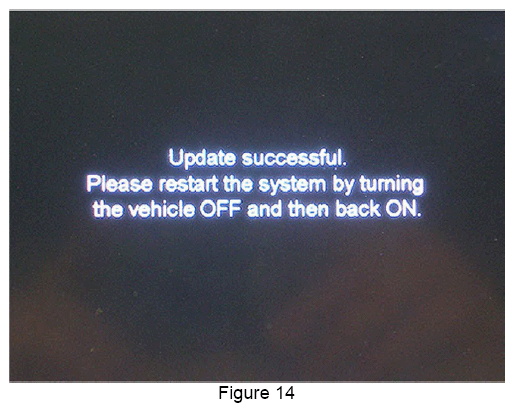

    • After selecting OK  , the screen in Figure 14 should display after 1-2 minutes.
    G16668380
  16. Turn the hazard warning lamps OFF.
  17. Turn the ignition OFF.
  18. Turn the ignition ON.

The procedure is complete.

CLAIMS INFORMATION

Submit a "CM" line claim using the following claims coding:

CLAIMS INFORMATION

CAMPAIGN ("CM") ID DESCRIPTION OP CODE FRT
R1911 Reprogram AV Control Unit R1911G 0.3 hrs
Reprogram not needed R19113 0.2 hrs

AMENDMENT HISTORY

AMENDMENT HISTORY

PUBLISHED DATE REFERENCE DESCRIPTION
December 5, 2019 NTB19-108 Original bulletin published
