CVT Position: Adjustment

  1. Move the shift selector to the "P" position.
    CAUTION:

    Rotate the wheels at least a quarter turn and be certain the transaxle is locked in the "P" position.

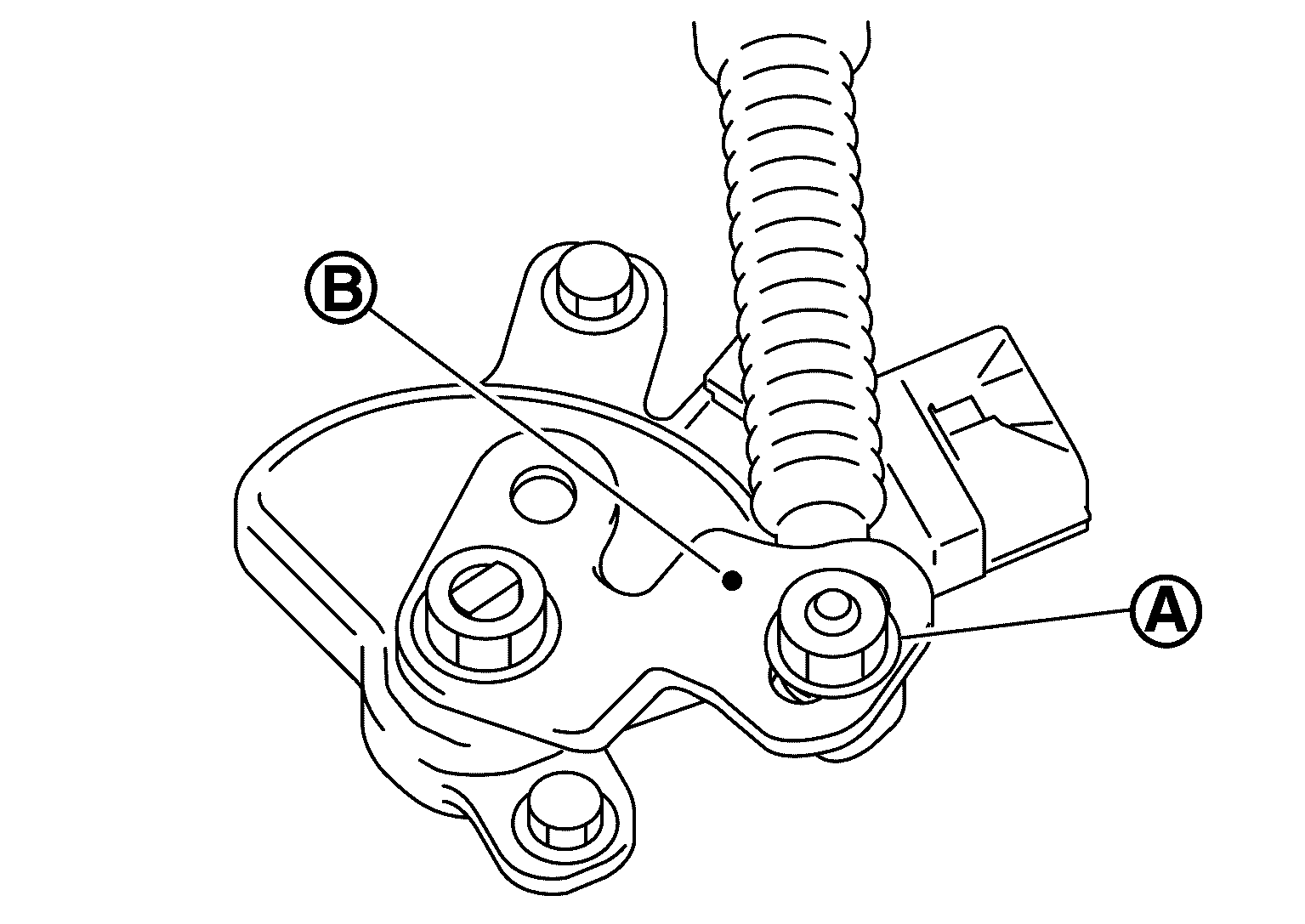

  2. Remove nut (A) and set manual lever (B) to the "P" position.
    G08199983Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Do not apply force to the manual lever.

  3. Tighten nuts to the specified torque. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .
    CAUTION:

    Do not move the manual lever when tightening.
