WIRE TO WIRE Connector End View (M93)

Connector Color:  WHITE

Fig 1: Terminal-side
GNSW90015Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Harness-side
GNSW90014Courtesy of NISSAN NORTH AMERICA, INC.
Terminal No. Color of Wire Signal Name (Specification)
1 - -
2 - -
3 - -
4 LG -
5 R -
6 W -
7 GR -
8 V -
9 W -
10 BG -
11 R -
12 V -
13 - -
14 - -
15 - -
16 SHIELD -
17 V -
18 GR -
19 BR -
20 Y -
21 V -
22 P -
23 GR -
24 B -

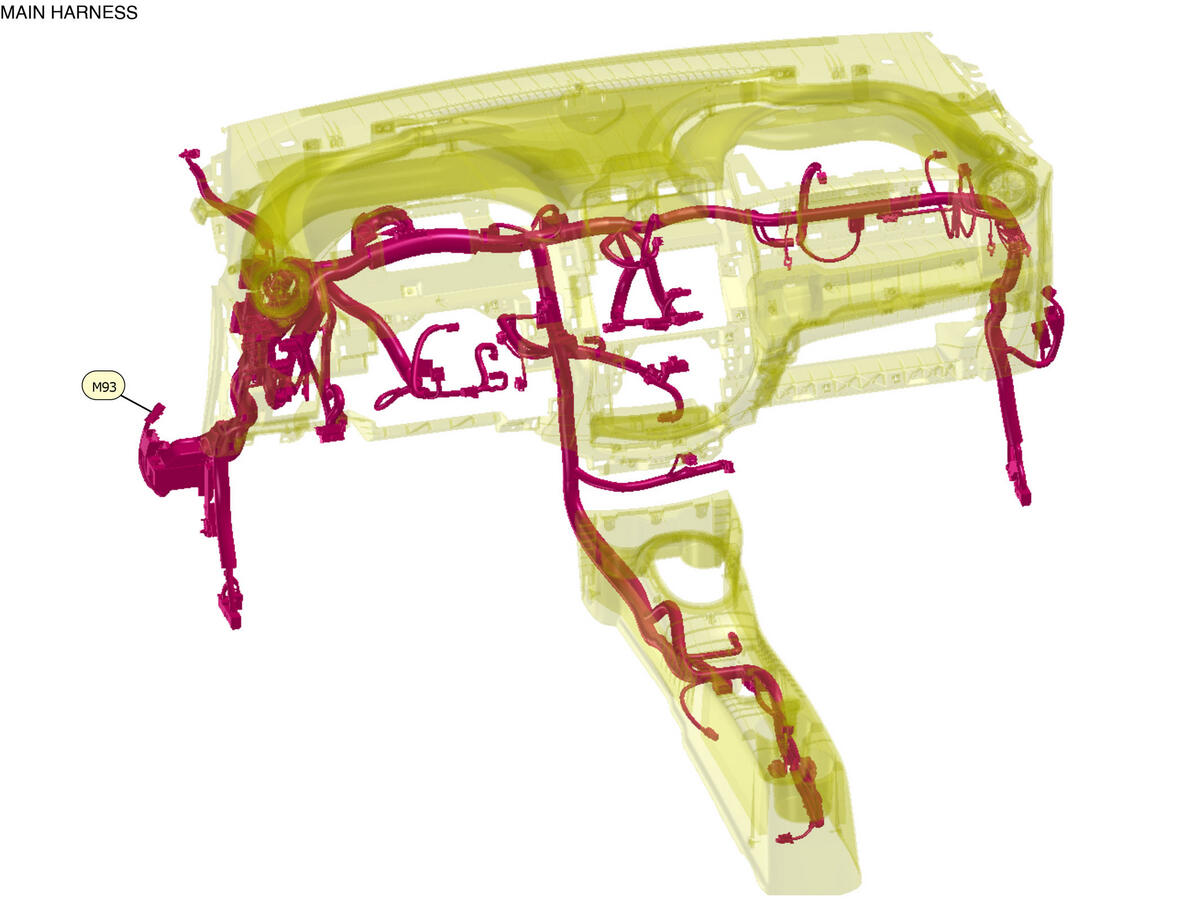

Harness Layout

Fig 3: MAIN HARNESS
GNSW90108_LK_M093Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types:  TH24MW-NH
