WIRE TO WIRE Connector End View (F33)

Connector Color: WHITE

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	GR	-
2	G	-
3	GR	-
4	W	- (M/T WITHOUT INTELLIGENT KEY SYSTEM)
4	R	- (WITH CVT OR M/T WITH INTELLIGENT KEY SYSTEM)
5	-	-
6	Y	-

Harness Layout

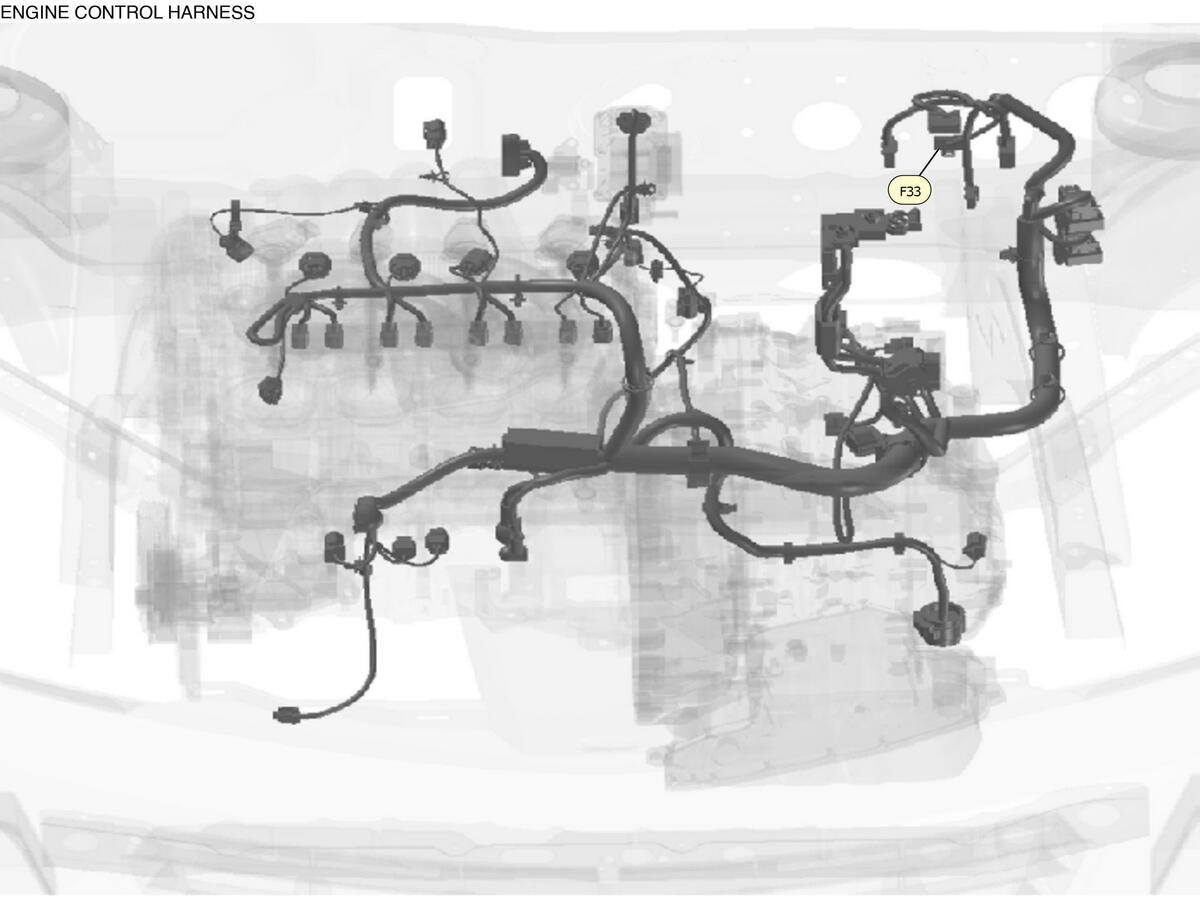

Fig 3: ENGINE CONTROL HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: M06FW-LC
