WIRE TO WIRE Connector End View (E8)

Connector Color:  WHITE

Fig 1: Terminal-side
GNSW90015Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Harness-side
GNSW90014Courtesy of NISSAN NORTH AMERICA, INC.
Terminal No. Color of Wire Signal Name (Specification)
1 - -
2 GR -
3 B/R -
4 - -
5 B -
6 P -
7 L -
8 SB -
9 L -
10 R -
11 L -
12 BR -
13 - -
14 G -
15 V -
16 Y -
17 LG -
18 R -
19 V -
20 BR -
21 - -
22 - -
23 - -
24 Y/R -

Harness Layout

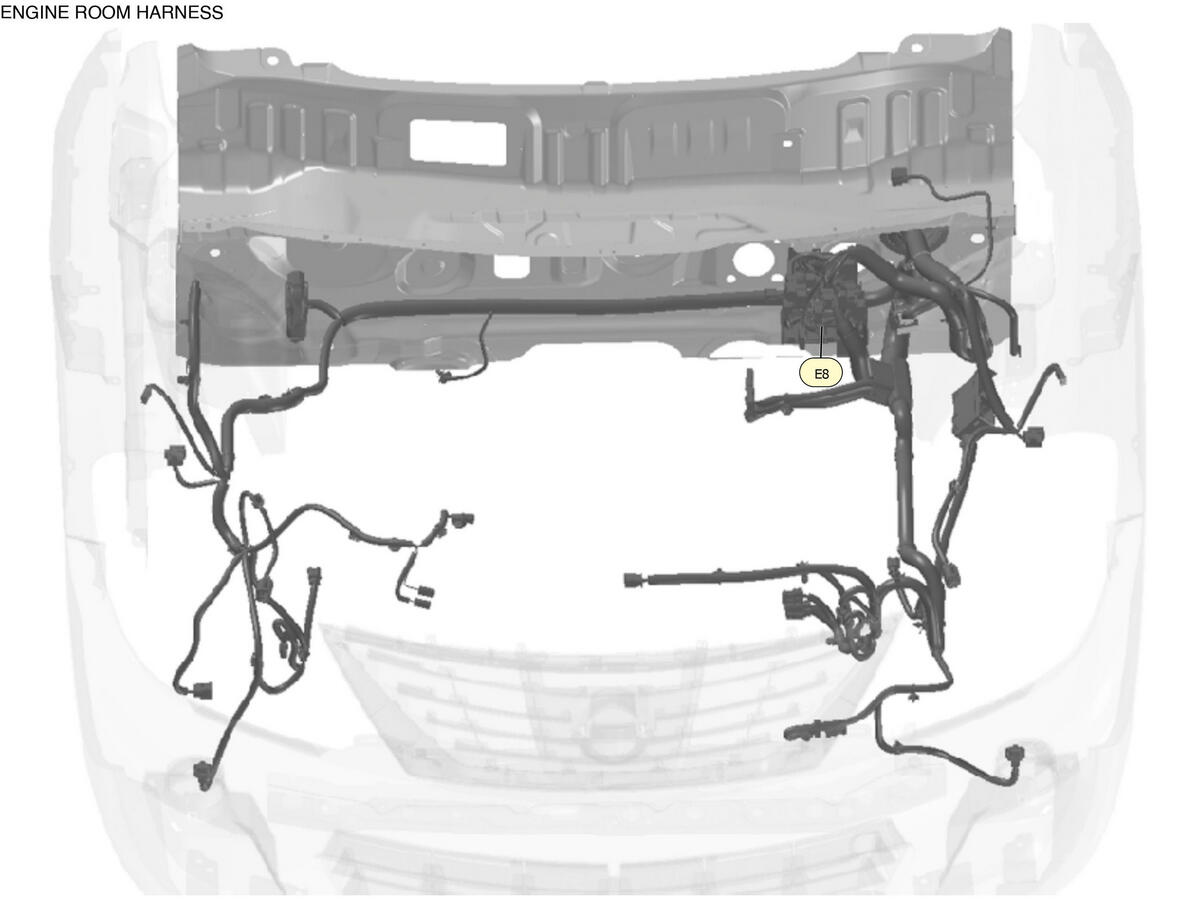

Fig 3: ENGINE ROOM HARNESS
GNSW90109_LK_E008Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types:  TH24MW-NH
