WIRE TO WIRE Connector End View (E21)
Connector Color:
GRAY
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
B |
- |
| 2 |
SHIELD |
- |
| 3 |
B/R |
- |
| 4 |
GR |
- |
| 5 |
BR |
- |
| 6 |
B |
- |
| 7 |
SB |
- |
| 8 |
W |
- |
| 9 |
R |
- |
| 10 |
Y/R |
- |
| 11 |
BR |
- |
| 12 |
L |
- |
| 13 |
P |
- |
| 14 |
G |
- |
| 15 |
W |
- |
| 16 |
V |
- |

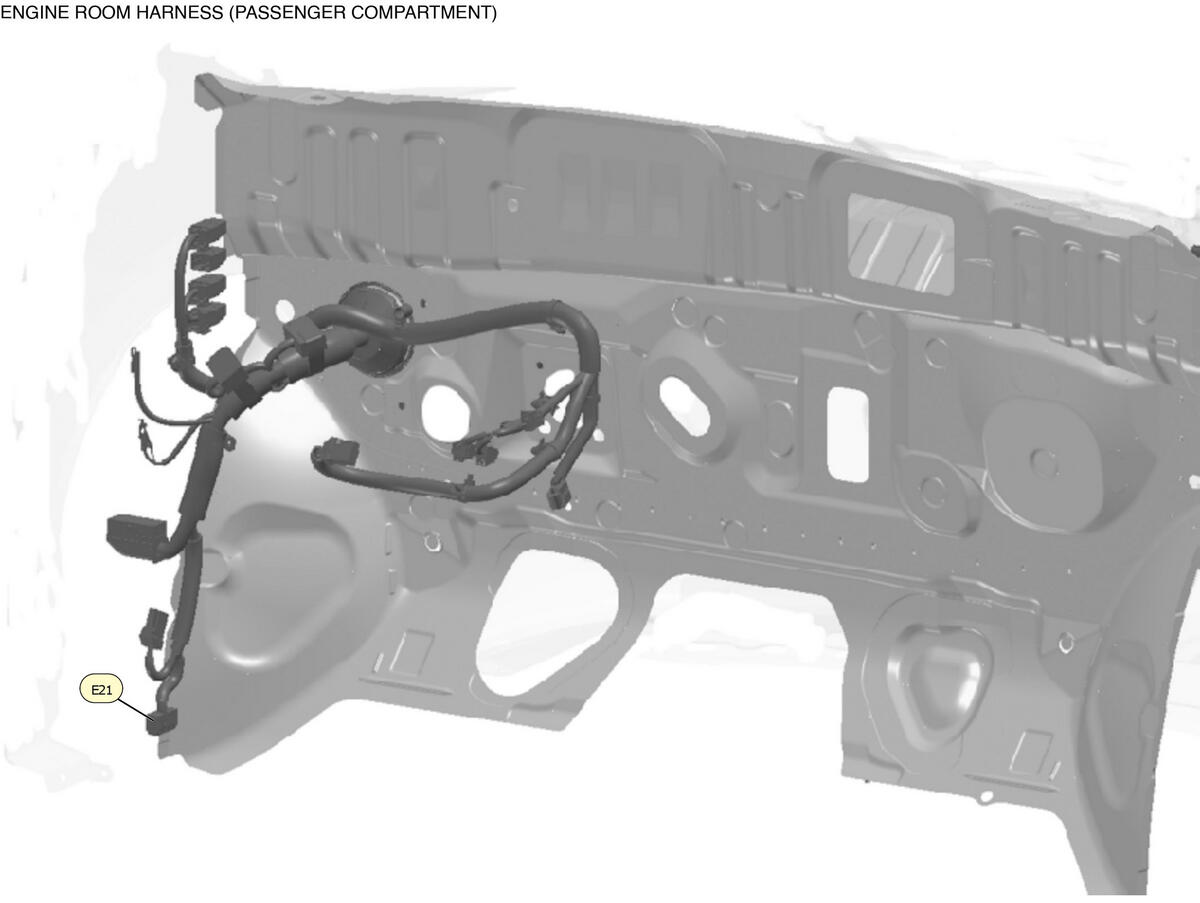

Harness Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Connector Types:
NS16FGY-CS
