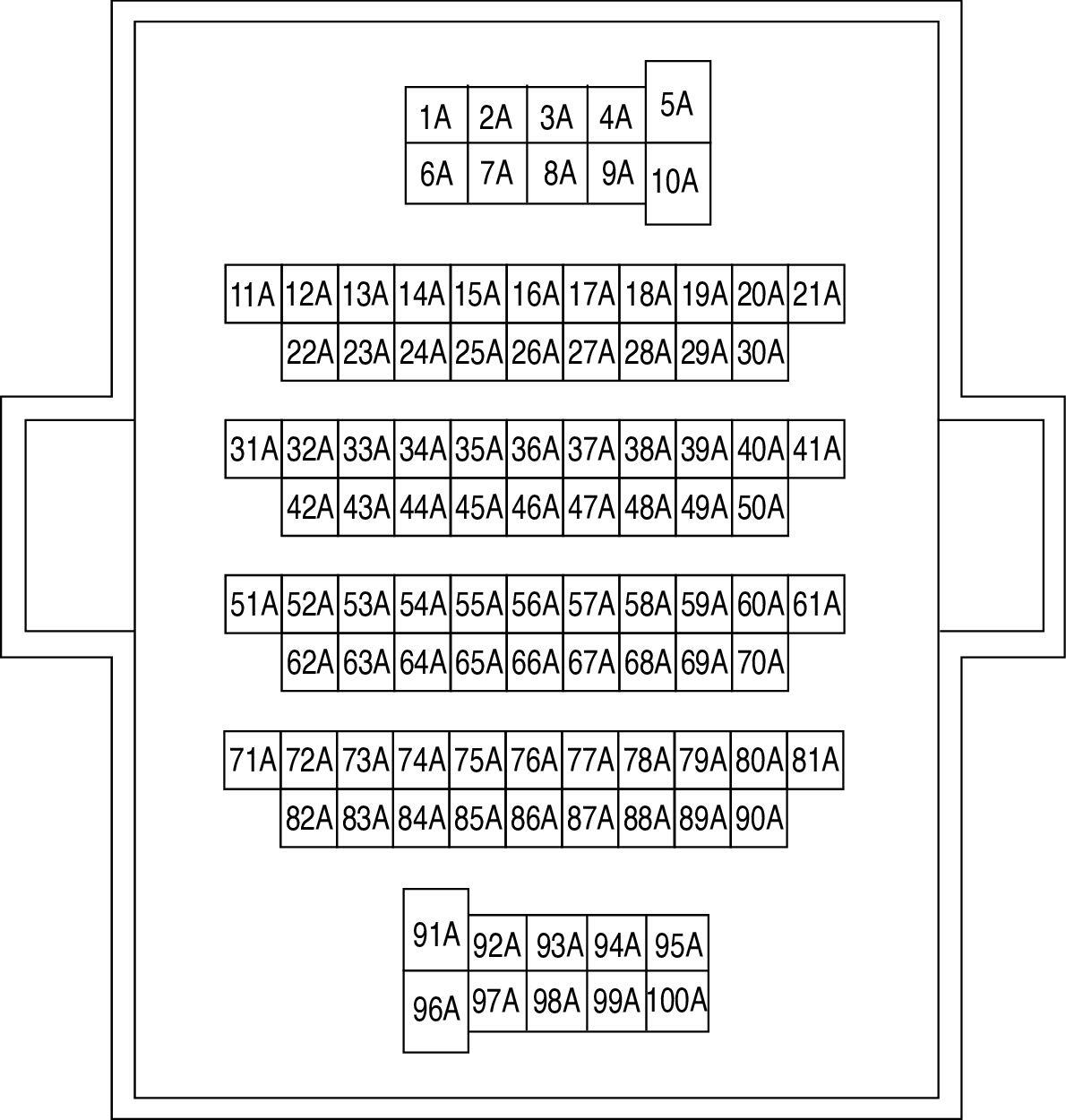

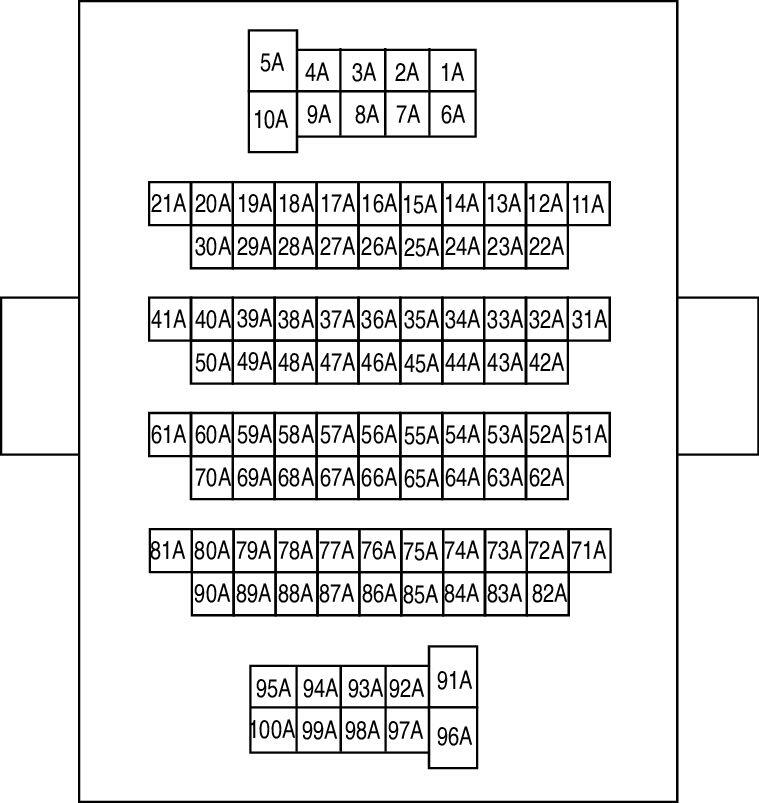

WIRE TO WIRE Connector End View (E7)
Connector Color: WHITE
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1A | GR | - |
| 2A | P | - |
| 3A | SB | - |
| 4A | SB | - |
| 5A | W | - |
| 6A | W | - |
| 7A | V | - |
| 8A | - | - |
| 9A | Y | - |
| 10A | L | - |
| 11A | - | - |
| 12A | - | - |
| 13A | - | - |
| 14A | - | - |
| 15A | - | - |
| 16A | - | - |
| 17A | V | - |
| 18A | LG | - |
| 19A | GR | - |
| 20A | P | - |
| 21A | L | - |
| 22A | - | - |
| 23A | - | - |
| 24A | - | - |
| 25A | LG | - |
| 26A | V | - |
| 27A | BR | - |
| 28A | R | - |
| 29A | R | - |
| 30A | R | - |
| 31A | LG | - |
| 32A | Y | - |
| 33A | R | - |
| 34A | - | - |
| 35A | Y | - |
| 36A | Y | - |
| 37A | W | - |
| 38A | R | - |
| 39A | SB | - |
| 40A | - | - |
| 41A | G | - |
| 42A | P | - |
| 43A | R | - |
| 44A | - | - |
| 45A | L | - |
| 46A | B | - |
| 47A | SB | - |
| 48A | LG | - |
| 49A | Y | - |
| 50A | V | - |
| 51A | L | - |
| 52A | - | - |
| 53A | - | - |
| 54A | - | - |
| 55A | - | - |
| 56A | - | - |
| 57A | - | - |
| 58A | - | - |
| 59A | - | - |
| 60A | - | - |
| 61A | - | - |
| 62A | P | - |
| 63A | SHIELD | - |
| 64A | - | - |
| 65A | - | - |
| 66A | - | - |
| 67A | - | - |
| 68A | - | - |
| 69A | - | - |
| 70A | - | - |
| 71A | - | - |
| 72A | - | - |
| 73A | - | - |
| 74A | - | - |
| 75A | - | - |
| 76A | - | - |
| 77A | - | - |
| 78A | - | - |
| 79A | - | - |
| 80A | - | - |
| 81A | - | - |
| 82A | - | - |
| 83A | - | - |
| 84A | - | - |
| 85A | - | - |
| 86A | - | - |
| 87A | - | - |
| 88A | - | - |
| 89A | - | - |
| 90A | - | - |
| 91A | Y | - |
| 92A | LG | - |
| 93A | L | - |
| 94A | - | - |
| 95A | LG | - |
| 96A | - | - |
| 97A | G/B | - |
| 98A | SB | - |
| 99A | - | - |
| 100A | G | - |

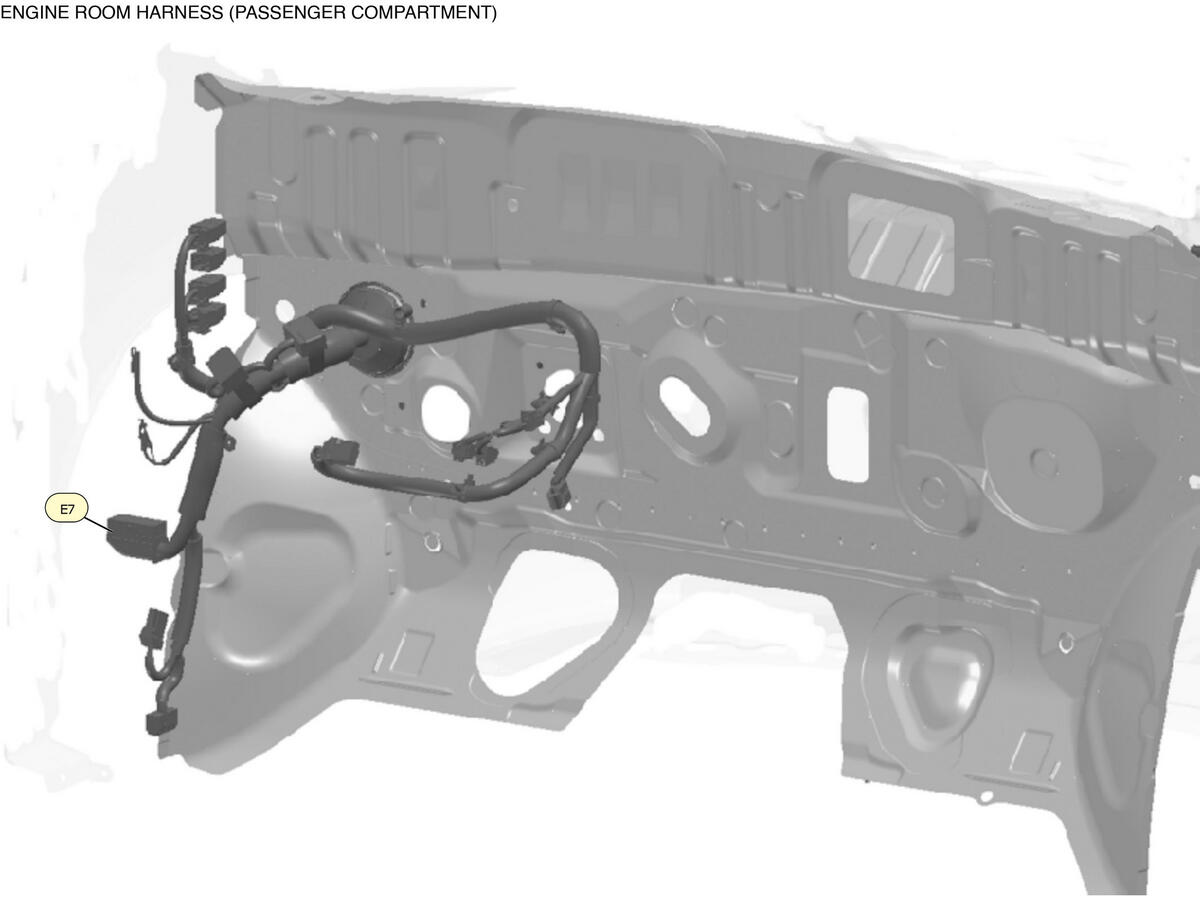

Harness Layout
Connector Types: TH80FW-CS16-TM4
