WIRE TO WIRE Connector End View (E35)
Connector Color:
BLACK
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
L |
- |
| 2 |
B |
- |
| 3 |
- |
- |
| 4 |
BR |
- |

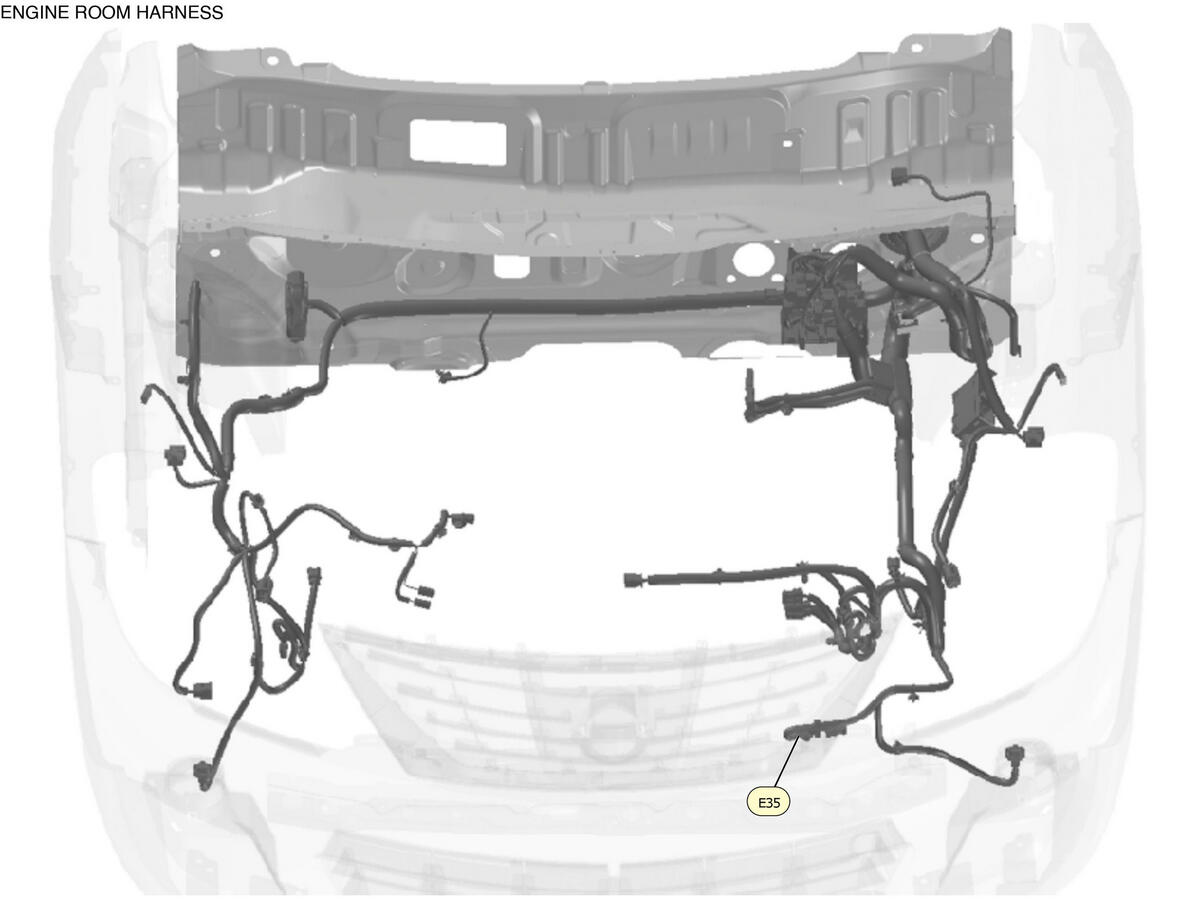

Harness Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Connector Types:
RS04FB-PR
