WIRE TO WIRE Connector End View (E11)

Connector Color: BLACK

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	G	-
2	-	-

Harness Layout

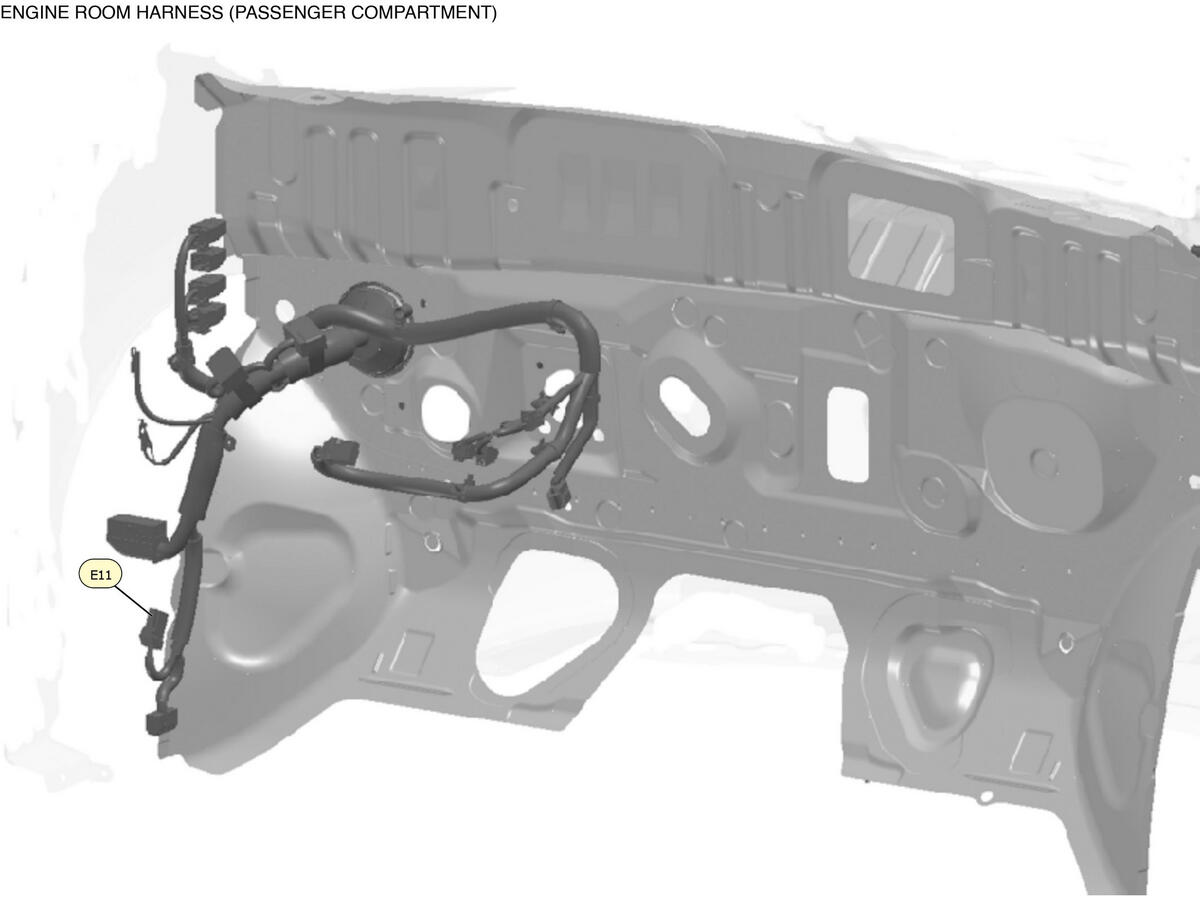

Fig 3: ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: L02MB-MC
