MAP LAMP Connector End View (R2)

Connector Color:  WHITE

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Circuit Diagram

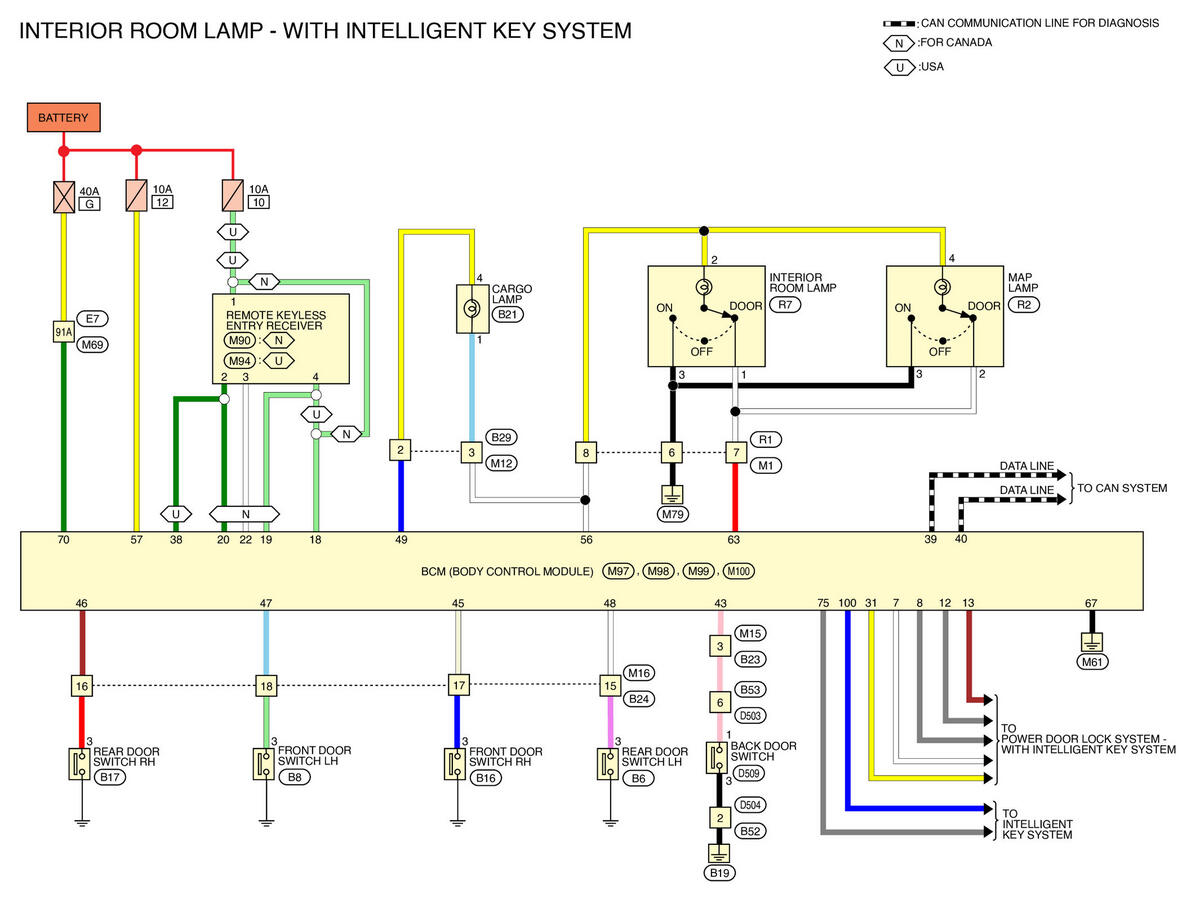

Fig 3: INTERIOR ROOM LAMP - WITH INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: BCM (BODY CONTROL MODULE) - WITH INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: BCM (BODY CONTROL MODULE) - WITHOUT INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

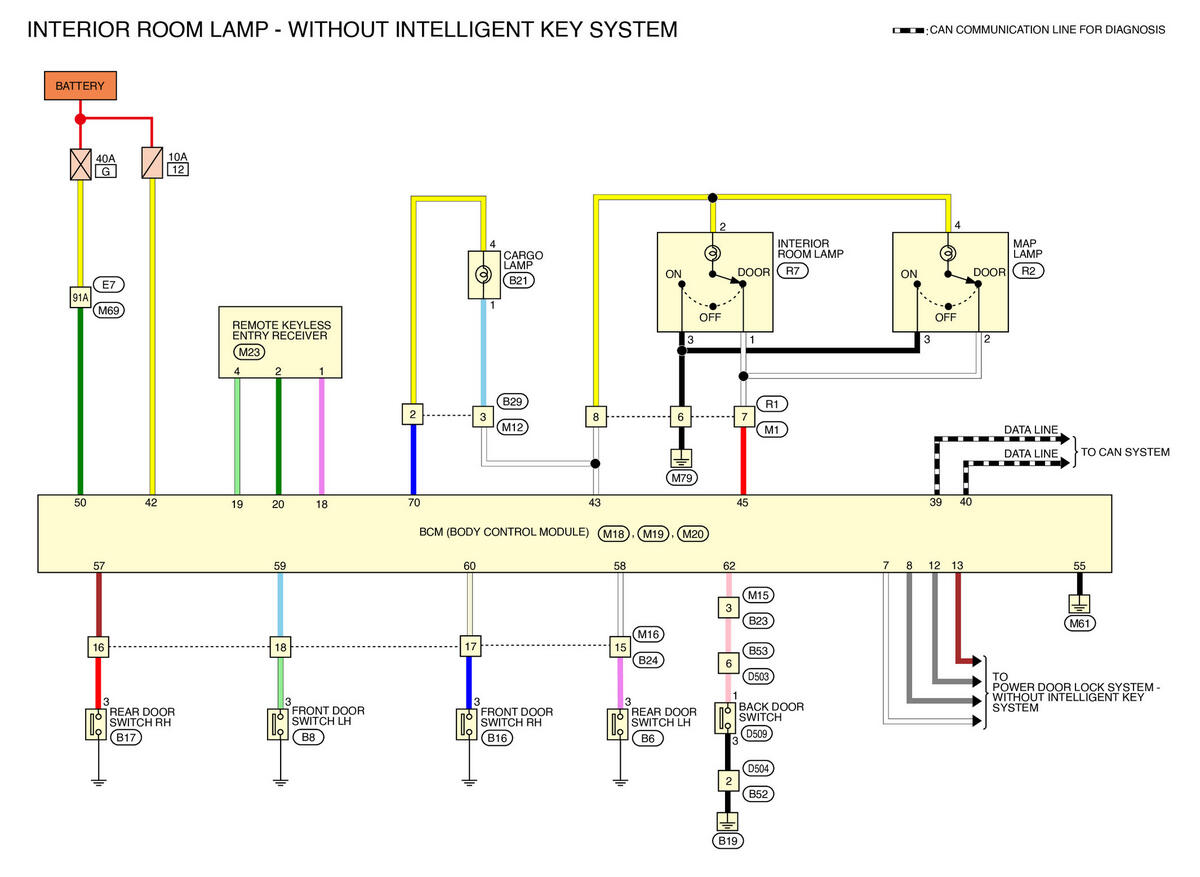

Fig 6: INTERIOR ROOM LAMP - WITHOUT INTELLIGENT KEY SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

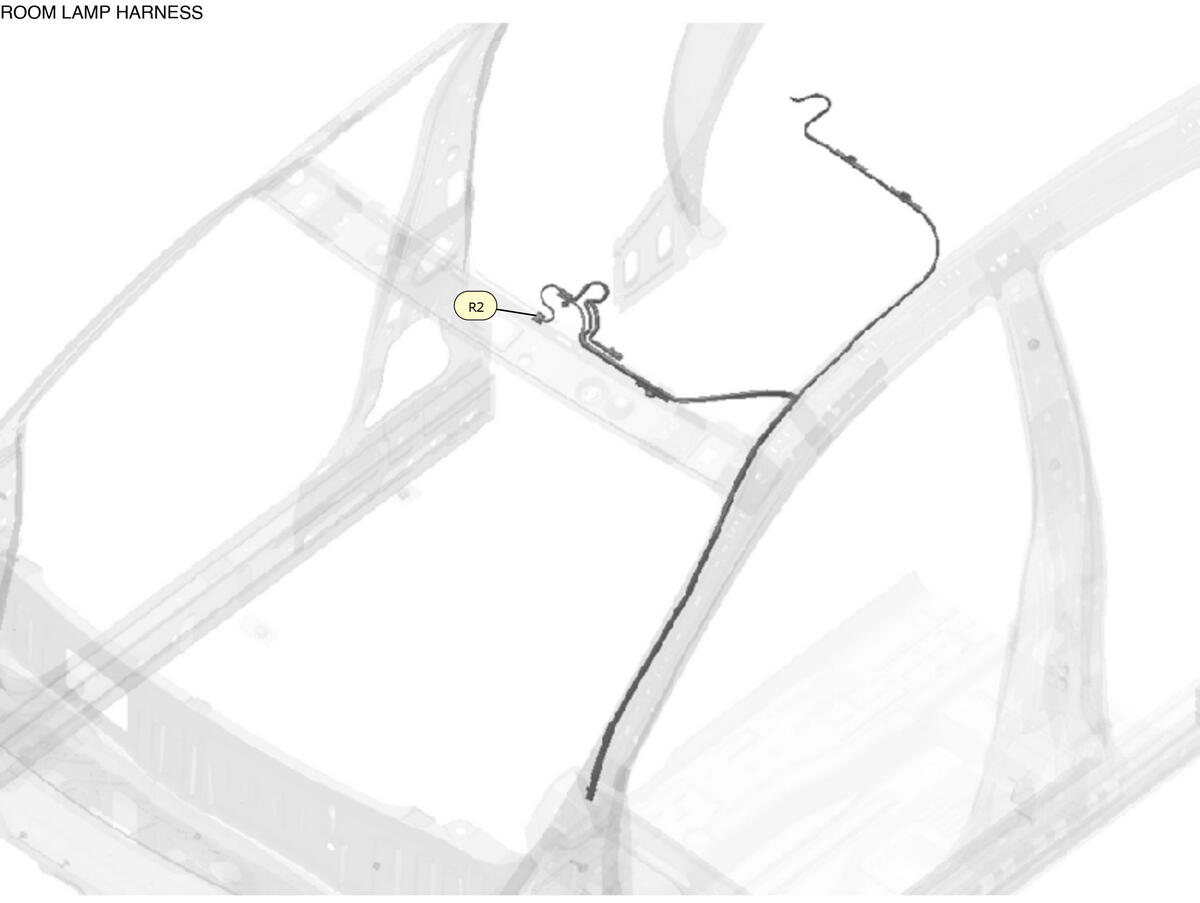

Fig 7: ROOM LAMP HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types:  GAA06FW
