ACCESSORY RELAY-2 Connector End View (M39)

Connector Color:  BLUE

Fig 1: Terminal-side
GNSW89855Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Harness-side
GNSW89854Courtesy of NISSAN NORTH AMERICA, INC.
Terminal No. Color of Wire Signal Name (Specification)
1 SB ACC RELAY CONTROL
2 B GROUND
3 L ACCESSORY RELAY-2 OUTPUT
5 BG BATTERY

Circuit Diagram

Fig 3: BCM (BODY CONTROL MODULE) - WITH INTELLIGENT KEY SYSTEM
GNSW89722Courtesy of NISSAN NORTH AMERICA, INC.

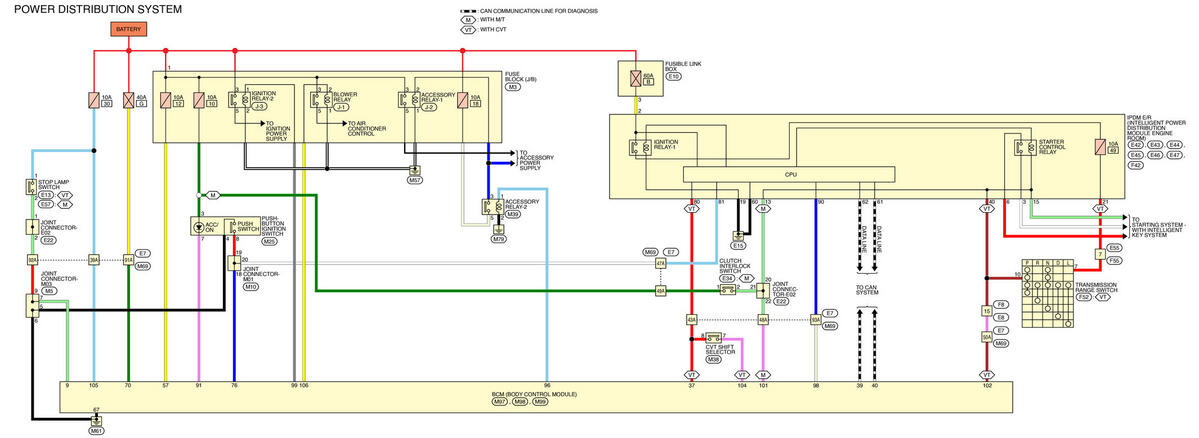

Fig 4: POWER DISTRIBUTION SYSTEM
GNSW89723Courtesy of NISSAN NORTH AMERICA, INC.

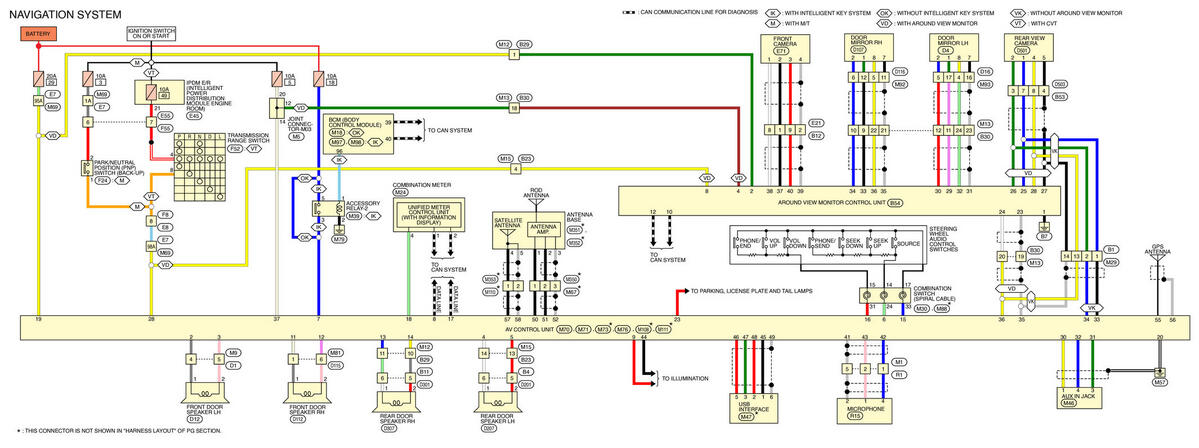

Fig 5: NAVIGATION SYSTEM
GNSW89730Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: METER - TYPE B
GNSW89731Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

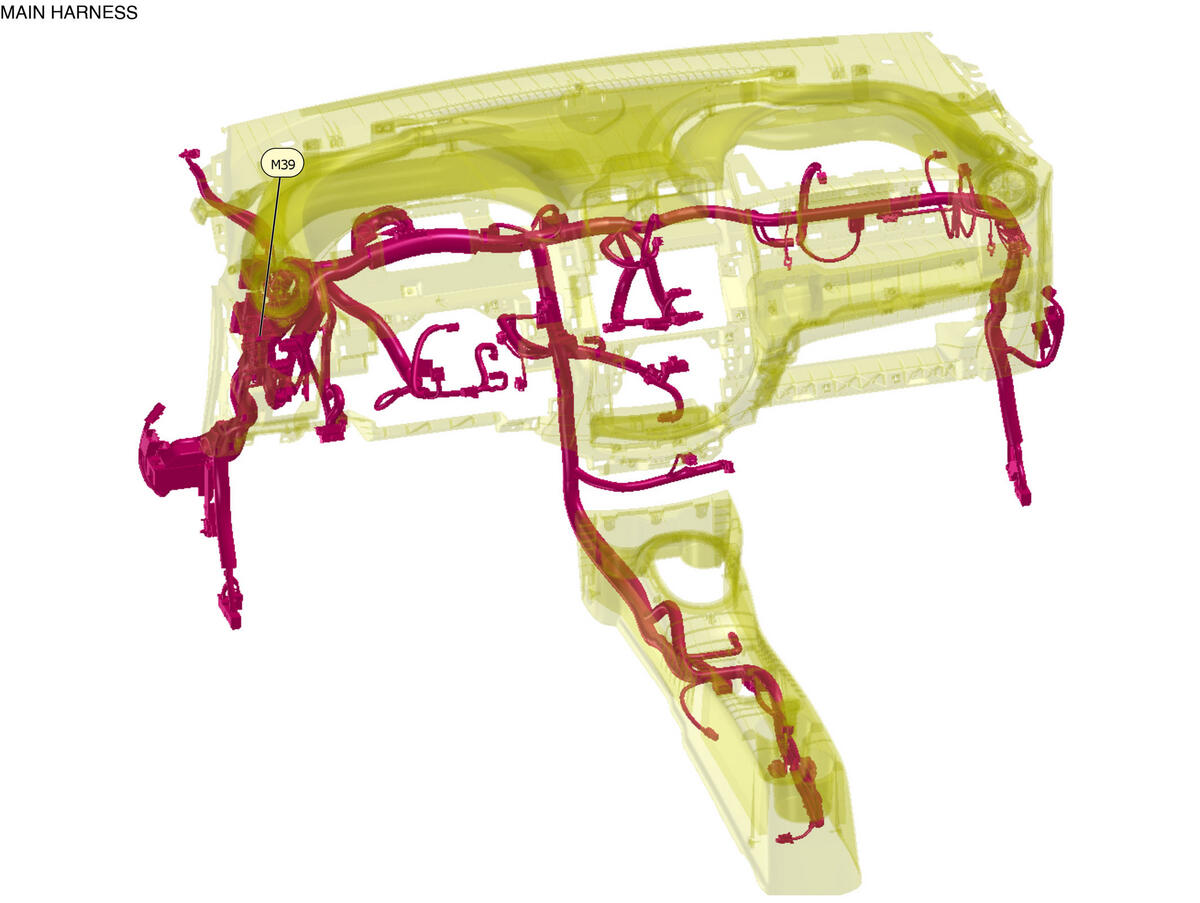

Fig 7: MAIN HARNESS
GNSW90108_LK_M039Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

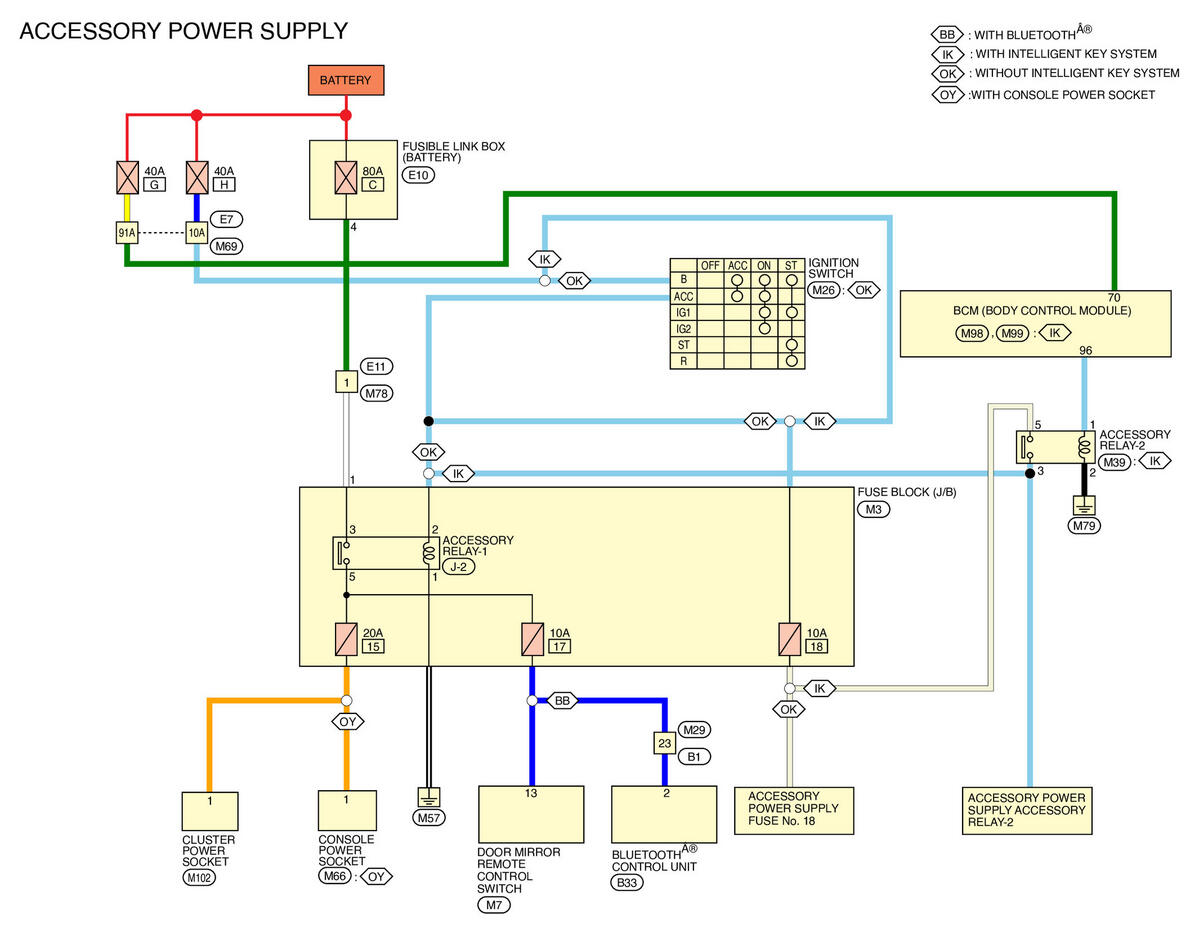

Fig 8: ACCESSORY POWER SUPPLY
GNSW90130Courtesy of NISSAN NORTH AMERICA, INC.

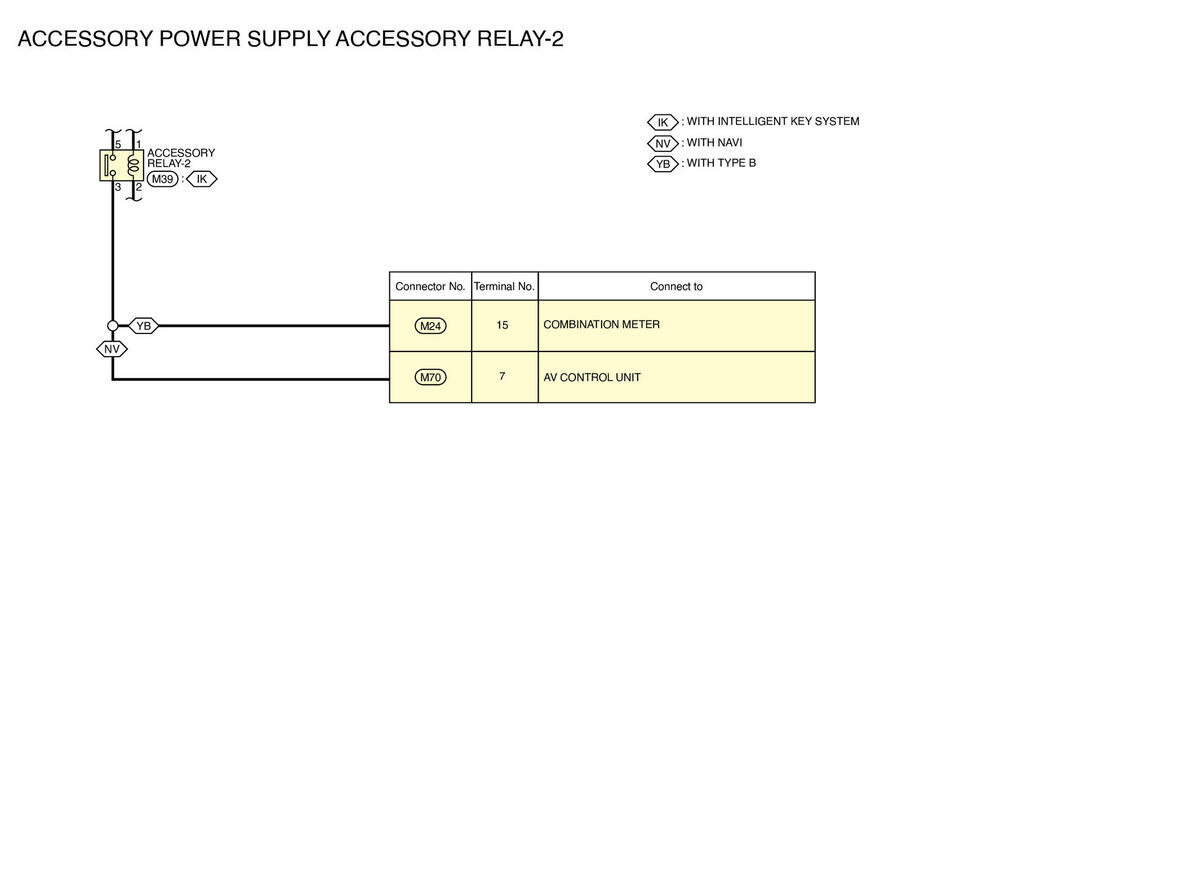

Fig 9: ACCESSORY POWER SUPPLY ACCESSORY RELAY-2
GNSW90146Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types:  MS02FL-M2-LC
