Front Axle
>>
Removal And Installation
>>
Front Wheel Hub And Knuckle
>>
Exploded View
Exploded View

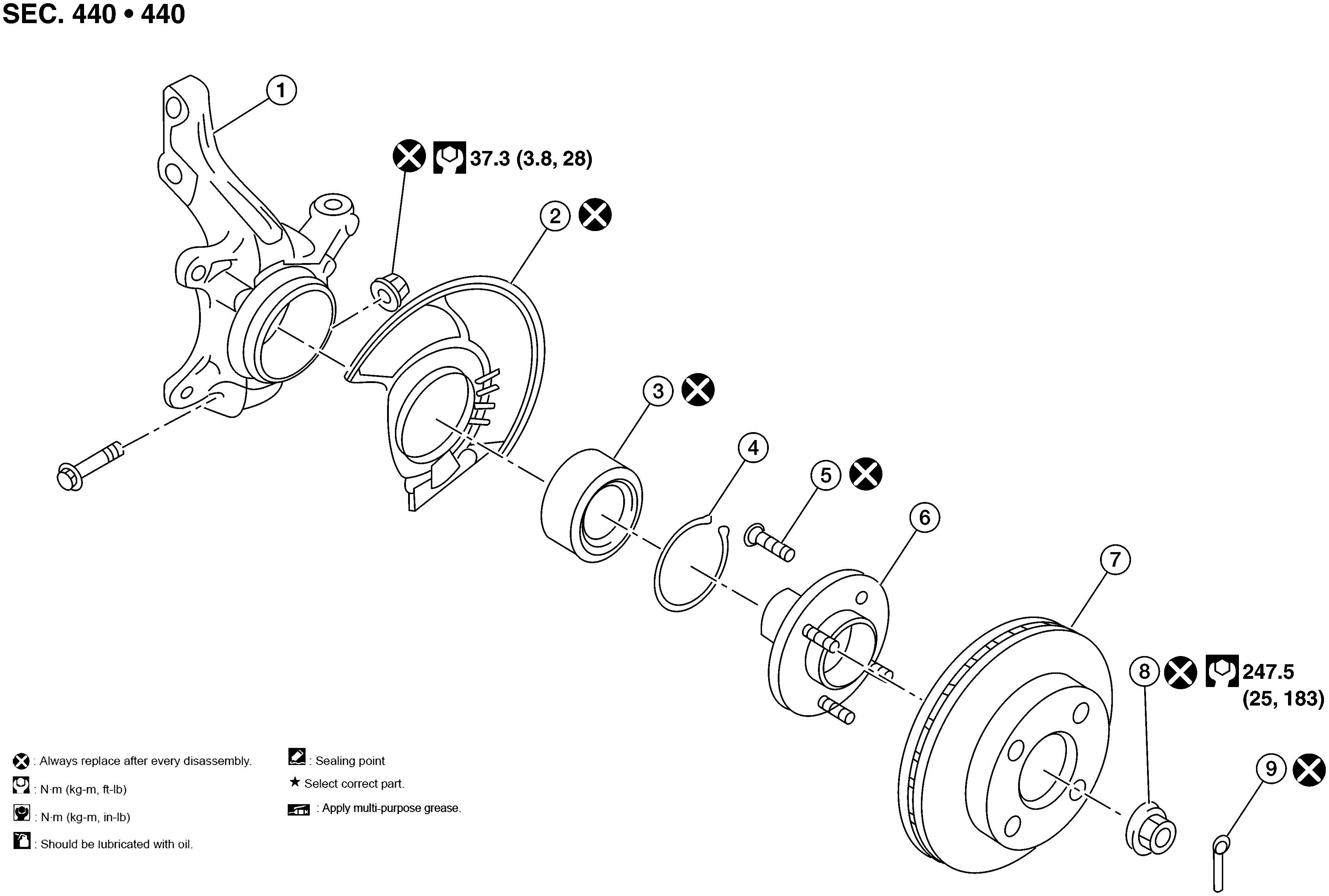

Fig 1: Front Wheel Hub And Knuckle With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering knuckle
2.
Splash guard
3.
Wheel bearing
4.
Snap ring
5.
Wheel stud
6.
Wheel hub
7.
Disc brake rotor
8.
Wheel hub lock nut
9.
Cotter pin
Courtesy of NISSAN NORTH AMERICA, INC.
