Electronically Controlled Power Steering System: Wiring Diagram

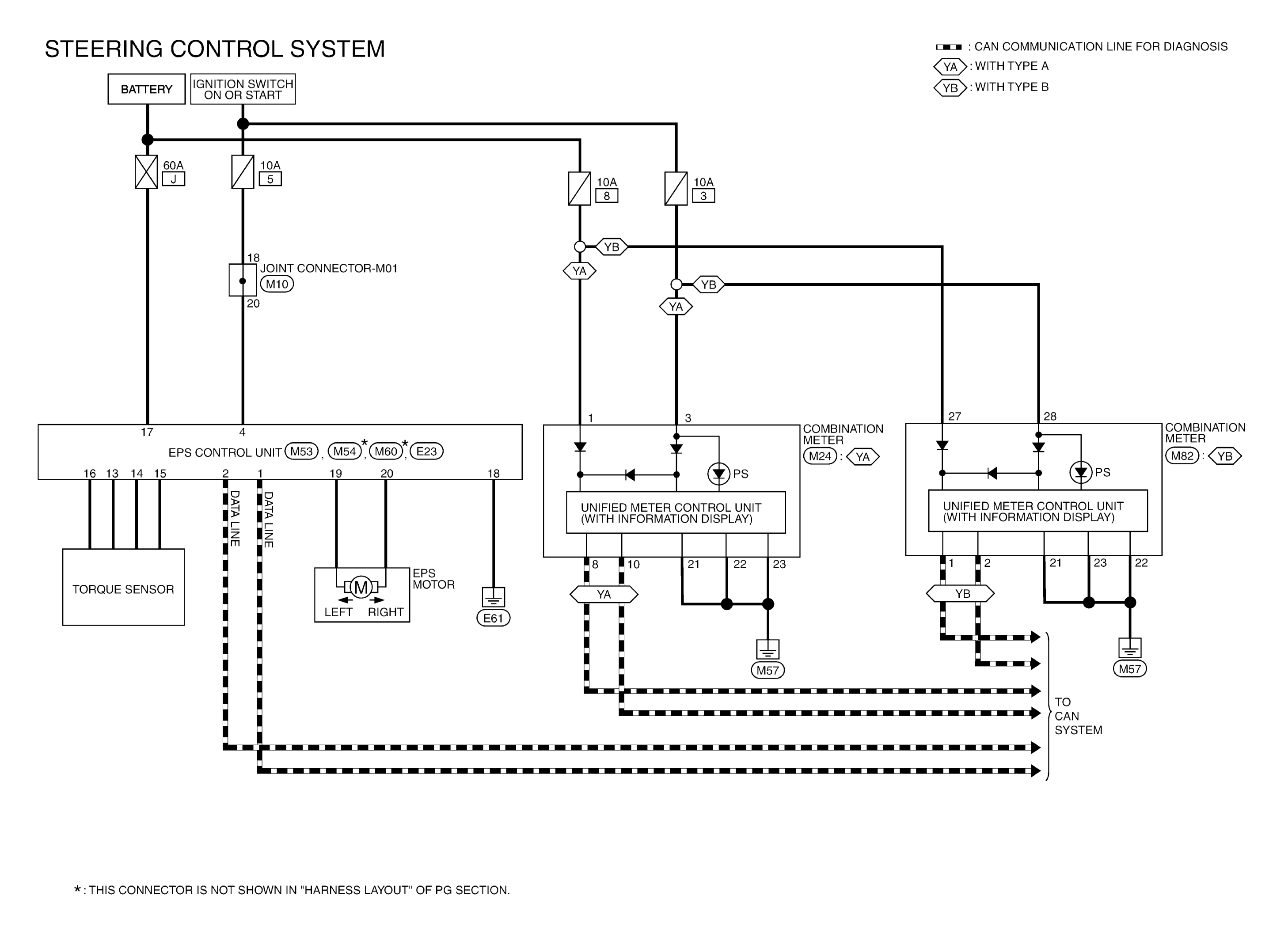

GNSABGWA0134GB-134

Courtesy of NISSAN NORTH AMERICA, INC.

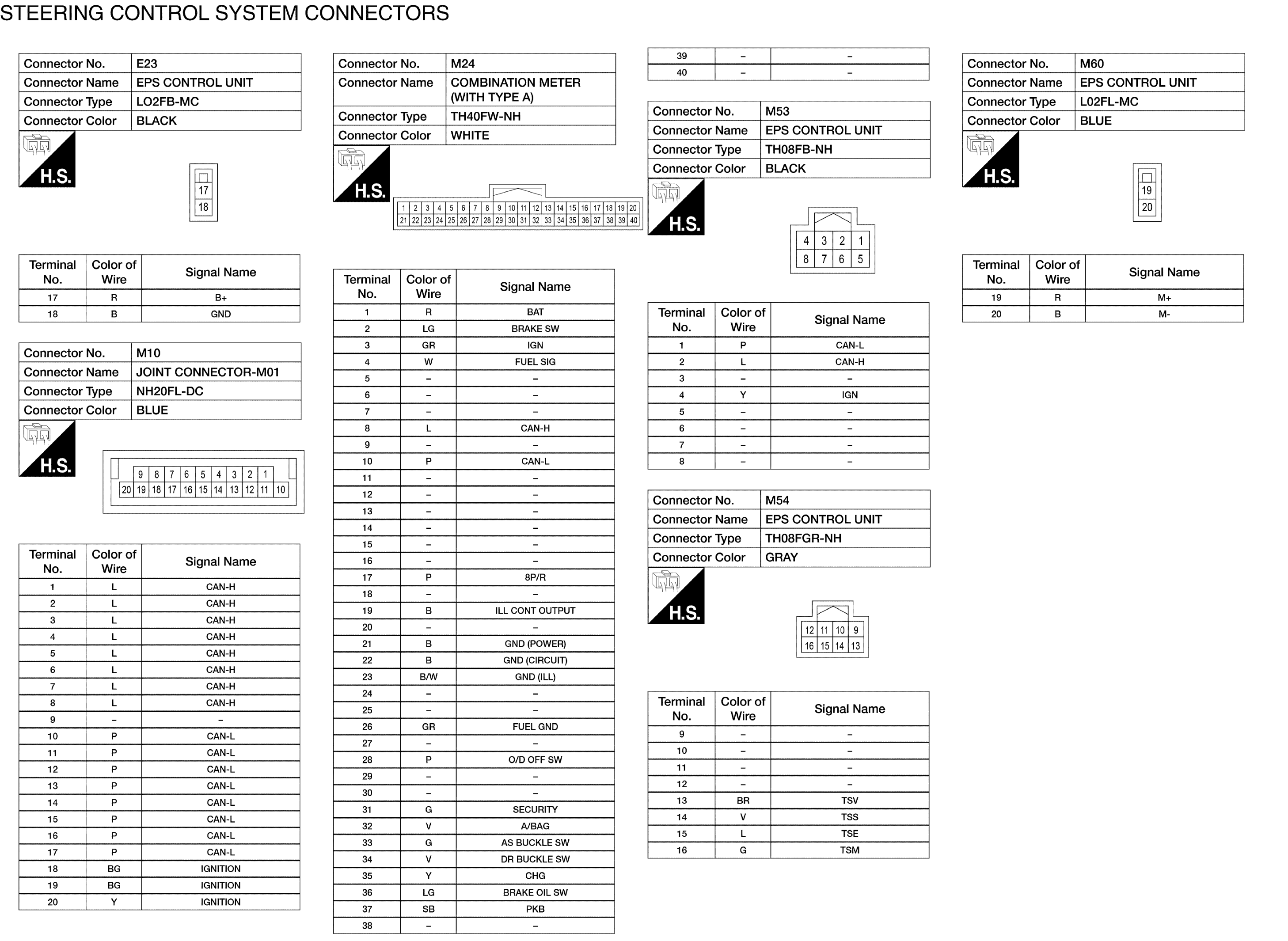

GNSABGIA0252GB-252

Courtesy of NISSAN NORTH AMERICA, INC.

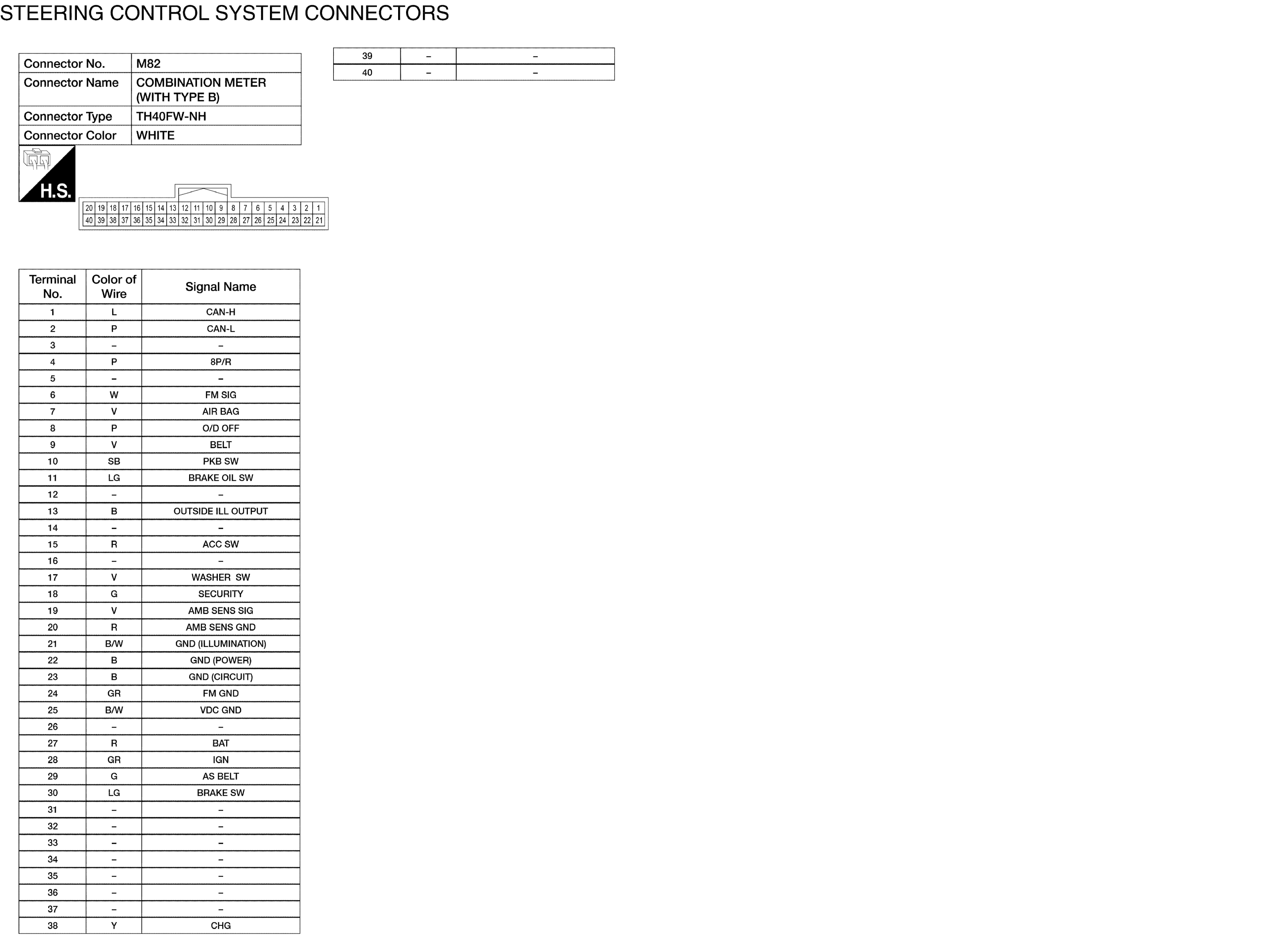

GNSABGIA0253GB-253

Courtesy of NISSAN NORTH AMERICA, INC.
