Engine Lubrication System
WARNING: This page is about a different variant/trim than selected.
- An oil pump integrated in the oil pan and that uses a chain-driven system is adopted.
- A small-sized oil filter is adopted and is installed directly to the oil pan.
- An oil cooler is adopted and is installed directly to the oil pan.

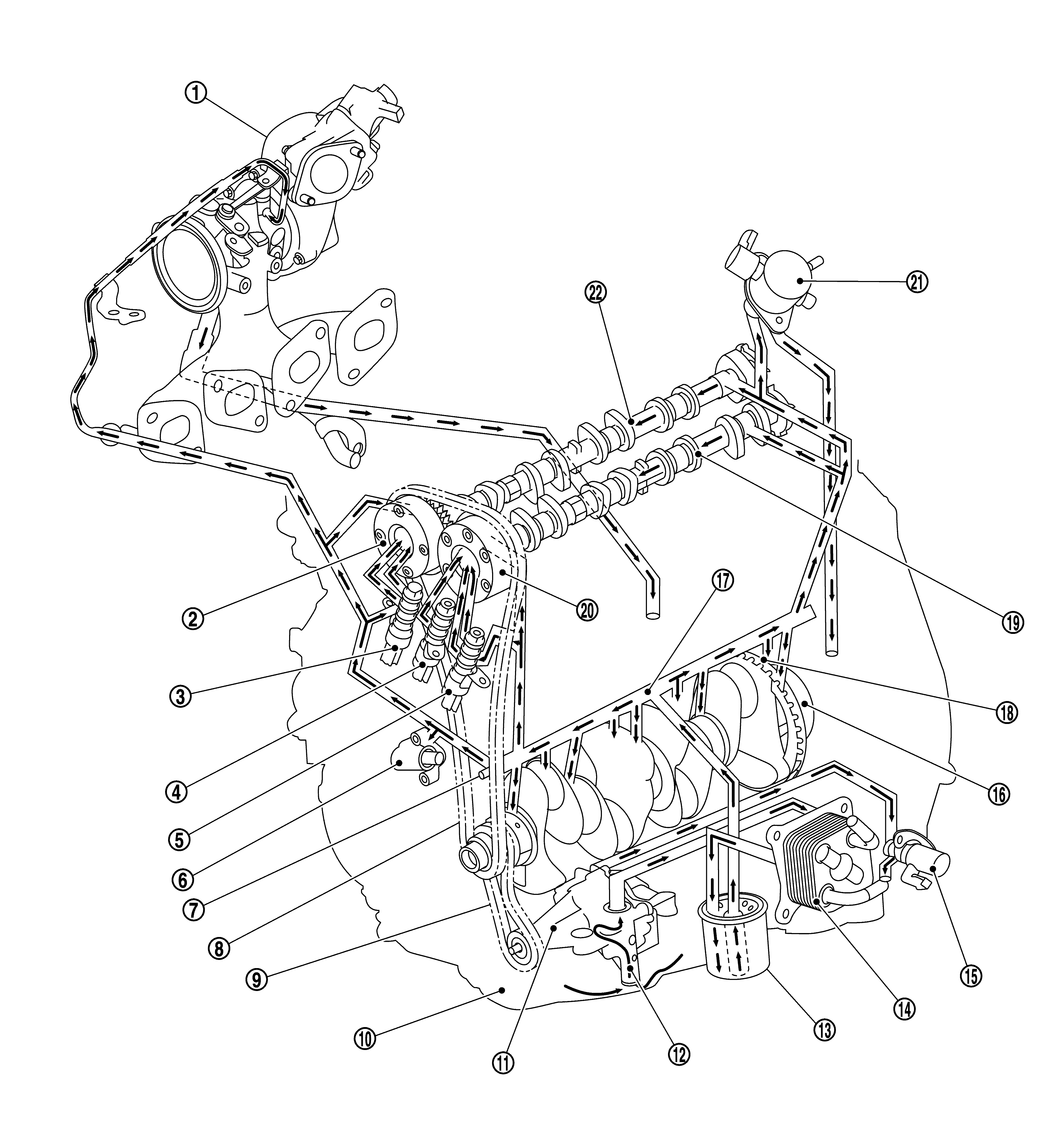

| 1. | Turbocharger | 2. | Camshaft sprocket (EXH) | 3. | Exhaust valve timing control solenoid valve |
| 4. | Intake valve timing intermediate lock control solenoid valve | 5. | Intake valve timing control solenoid valve | 6. | Chain tensioner |
| 7. | Chain oil jet | 8. | Timing chain | 9. | Oil pump drive chain |
| 10. | Oil pan | 11. | Oil pump | 12. | Oil strainer |
| 13. | Oil filter | 14. | Oil cooler | 15. | Engine oil pressure control solenoid valve |
| 16. | Crankshaft | 17. | Main gallery | 18. | Piston oil jet |
| 19. | Camshaft (INT) | 20. | Camshaft sprocket (INT) | 21. | High-pressure fuel pump |
| 22. | Camshaft (EXH) |
