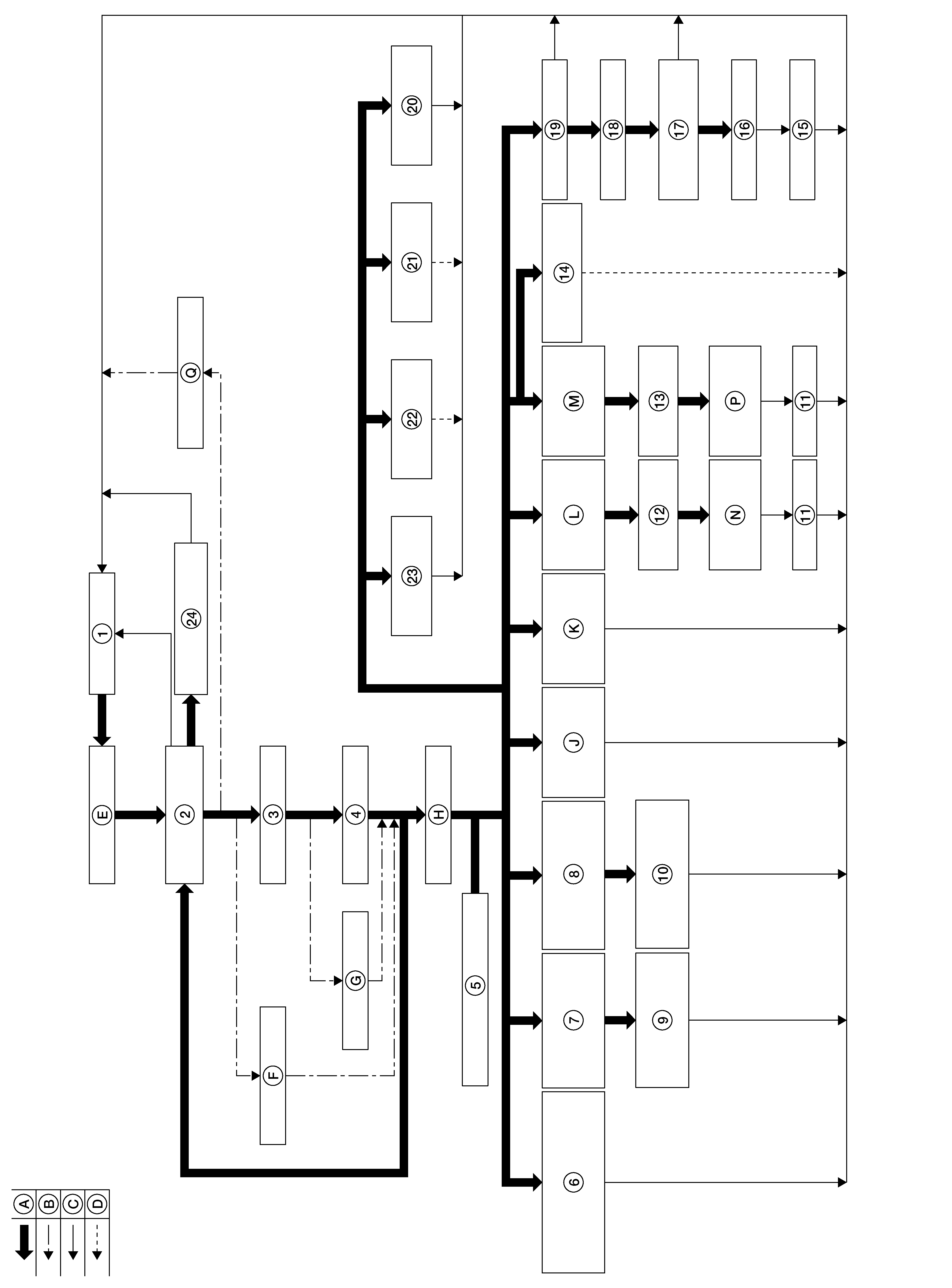

Engine Lubrication System Schematic
WARNING: This page is about a different variant/trim than selected.
| 1. | Oil pan | 2. | Oil pump | 3. | Oil cooler |
| 4. | Oil filter | 5. | Engine oil pressure sensor | 6. | Intake valve timing intermediate lock control solenoid valve |
| 7. | Intake valve timing control solenoid valve | 8. | Exhaust valve timing control solenoid valve | 9. | Intake valve timing controller |
| 10. | Exhaust valve timing controller | 11. | Valve lifter | 12. | Camshaft (INT) |
| 13. | Camshaft (EXH) | 14. | High-pressure fuel pump | 15. | Piston |
| 16. | Connecting rod | 17. | Connecting rod bearing | 18. | Crankshaft |
| 19. | Main bearing | 20. | Exhaust manifold and turbocharger assembly | 21. | Piston oil jet |
| 22. | Timing chain oil jet | 23. | Chain tensioner | 24. | Engine oil pressure control solenoid valve |
| A. | Oil passage | B. | By-pass passage | C. | To oil pan |
| D. | Oil injection | E. | Oil strainer | F. | Relief valve |
| G. | Relief valve | H. | Main gallery | J. | Camshaft journal [INT (No. 1)] |
| K. | Camshaft journal [EXH (No. 1)] | L. | Camshaft journal [INT (No. 5)] | M. | Camshaft journal [EXH (No. 5)] |
| N. | Camshaft journal (INT) | P. | Camshaft journal (EXH) | Q. | Regulator valve |
