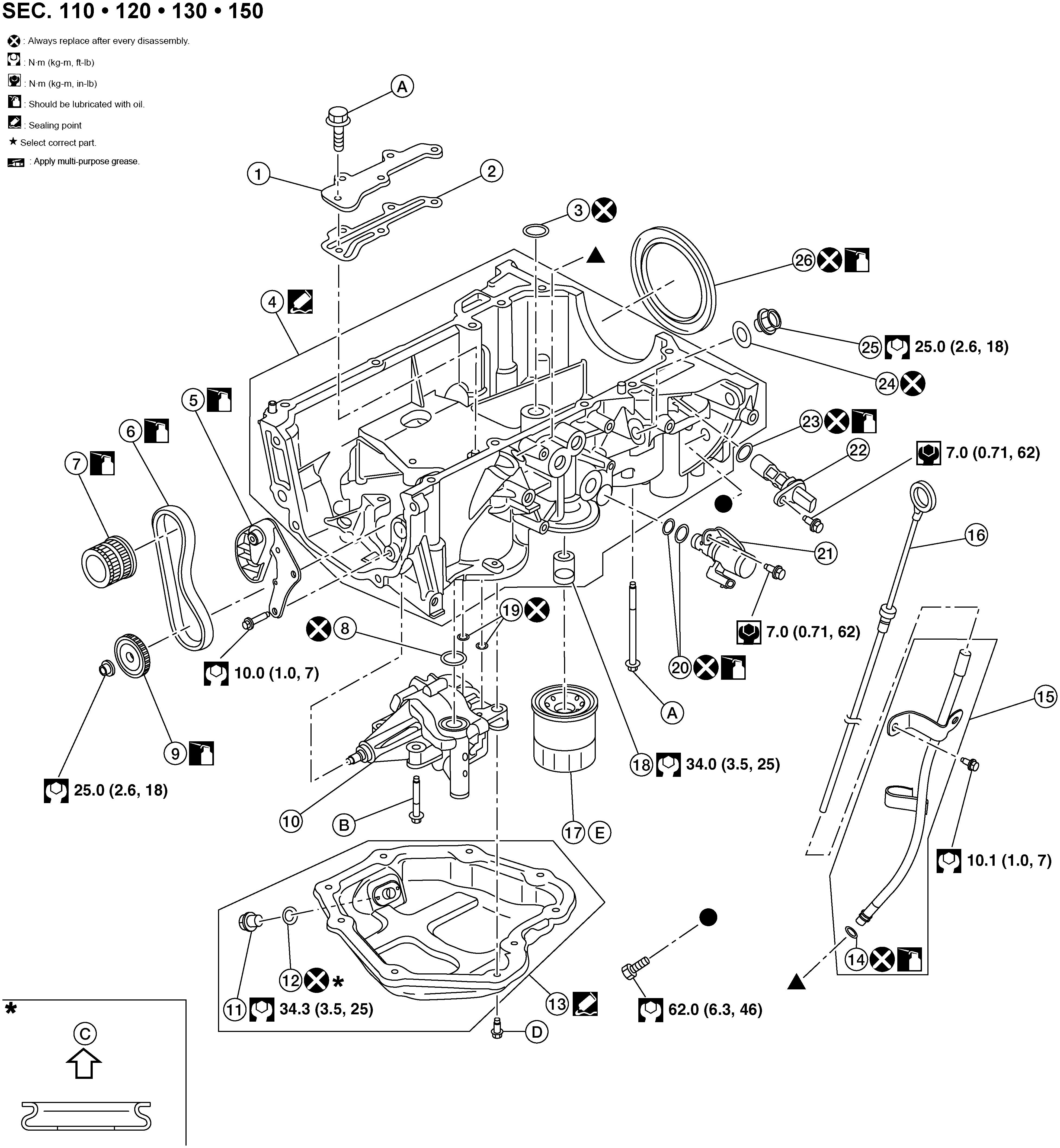

Exploded View
WARNING: This page is about a different variant/trim than selected.
| 1. | Oil gallery cover | 2. | Oil gallery cover gasket | 3. | O-ring |
| 4. | Oil pan (upper) | 5. | Oil pump drive chain tensioner | 6. | Oil pump drive chain |
| 7. | Crankshaft sprocket | 8. | O-ring | 9. | Oil pump sprocket |
| 10. | Oil pump | 11. | Oil pan drain plug | 12. | Drain plug washer |
| 13. | Oil pan (lower) | 14. | O-ring | 15. | Oil level gauge |
| 16. | Oil level gauge guide | 17. | Oil filter | 18. | Oil filter stud |
| 19. | O-rings | 20. | O-rings | 21. | Engine oil pressure control solenoid valve |
| 22. | Crankshaft position sensor | 23. | O-ring | 24. | Gasket |
| 25. | Plug | 26. | Rear oil seal | A. | Refer to REMOVAL AND INSTALLATION . |
| B. | Refer to INSTALLATION | C. | Oil pan side | D. | Refer to REMOVAL AND INSTALLATION . |
| E. | Refer to REMOVAL AND INSTALLATION . |
