Exploded View
WARNING: This page is about a different variant/trim than selected.

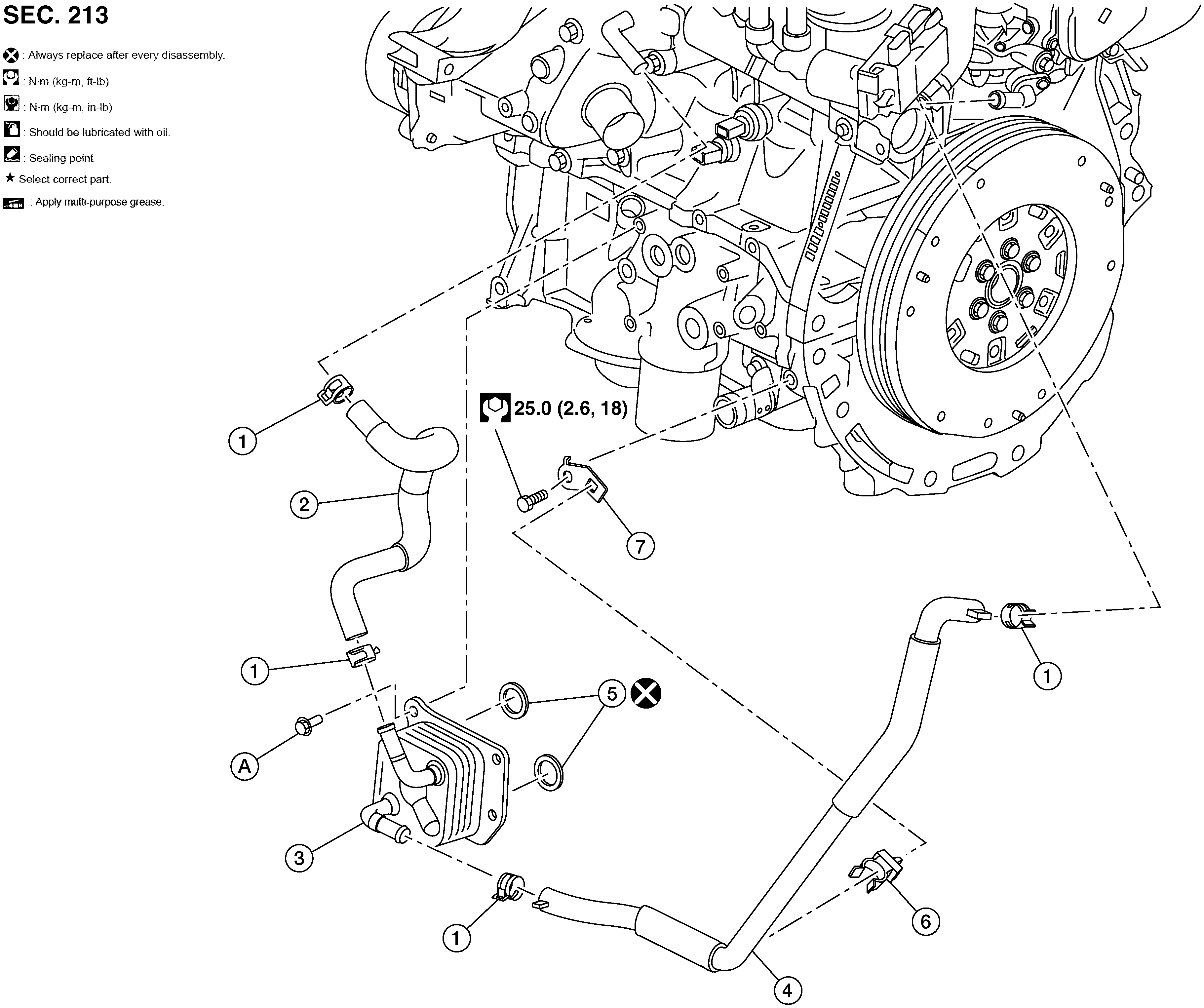

M/T models
| 1. | Clamp | 2. | Oil cooler outlet hose | 3. | Oil cooler |
| 4. | Oil cooler inlet hose | 5. | O-ring | 6. | Hose clip |
| 7. | Water hose bracket | A. | Refer to INSTALLATION |

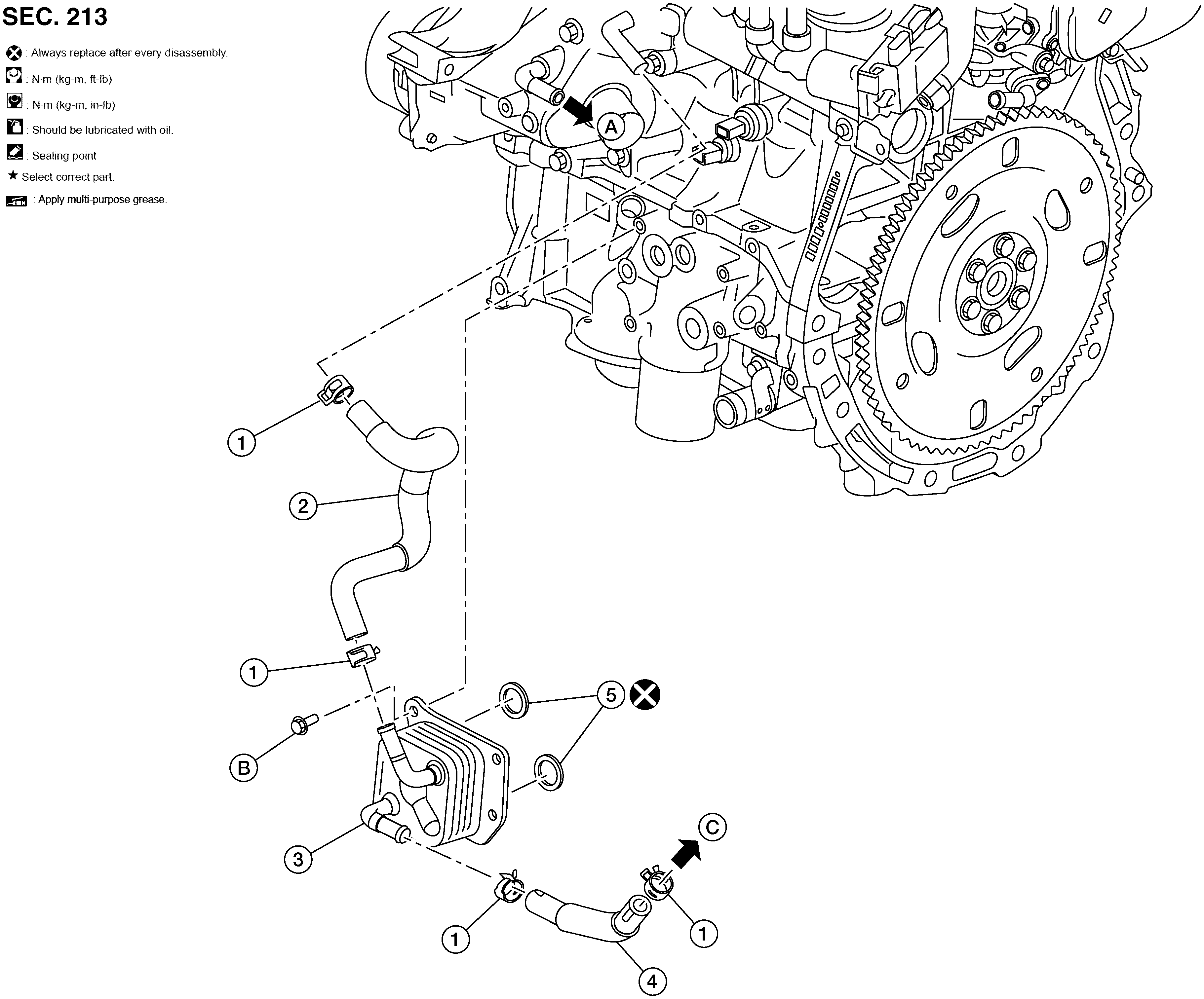

CVT models
| 1. | Clamp | 2. | Water hose | 3. | Oil cooler |
| 4. | Water hose | 5. | O-ring | A. | To CVT fluid warmer |
| B. | Refer to INSTALLATION | C. | To multi-way valve |
