Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

(LH)

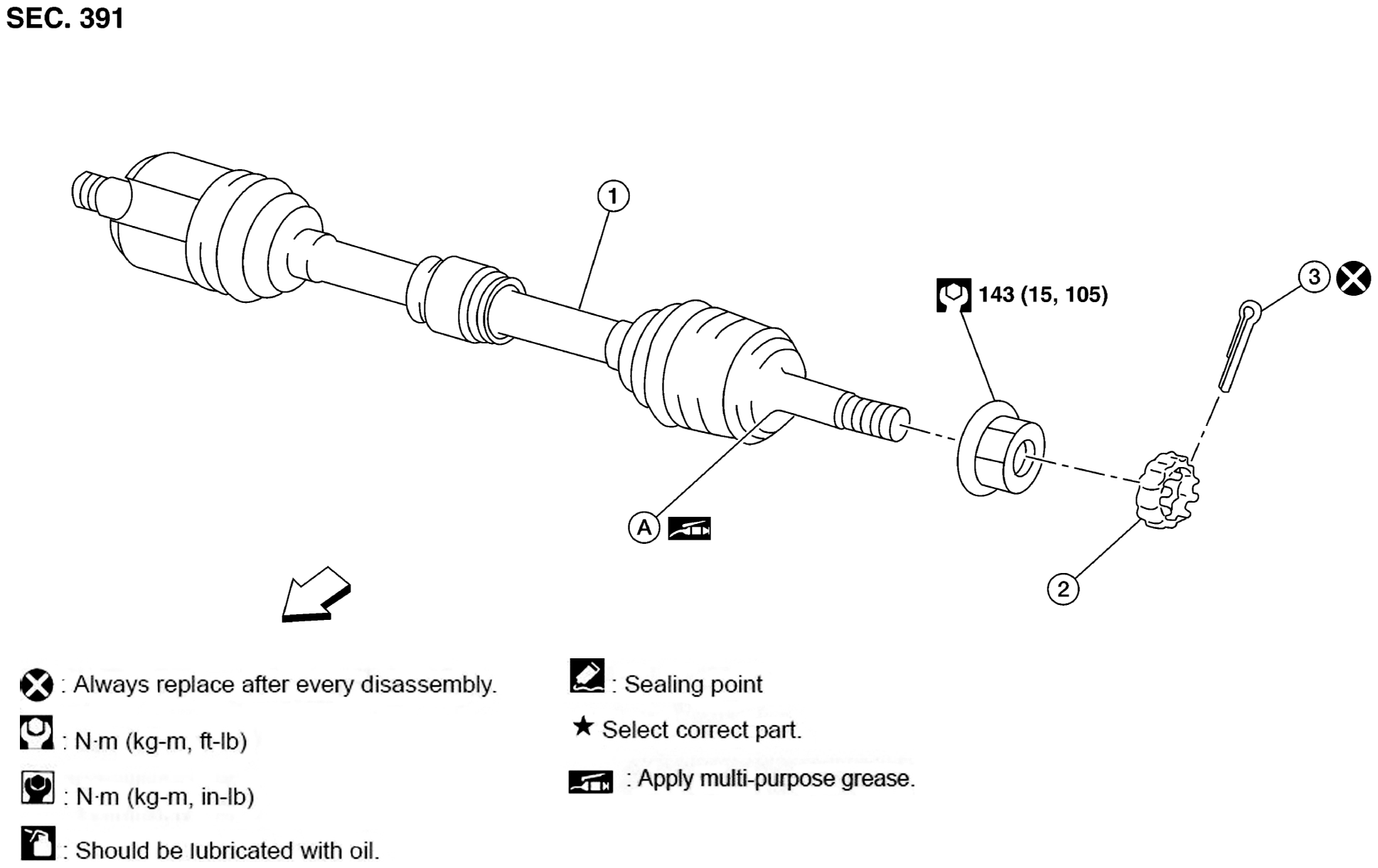

Fig 1: Exploded View Of Front Drive Shaft (LH) With Torque Specifications (1 Of 2)
GNSAWDIA1207ZZ-207Courtesy of NISSAN NORTH AMERICA, INC.
1. Front drive shaft 2. Nut retainer 3. Cotter pin
A. Molykote M77 ARROW Front

(RH)

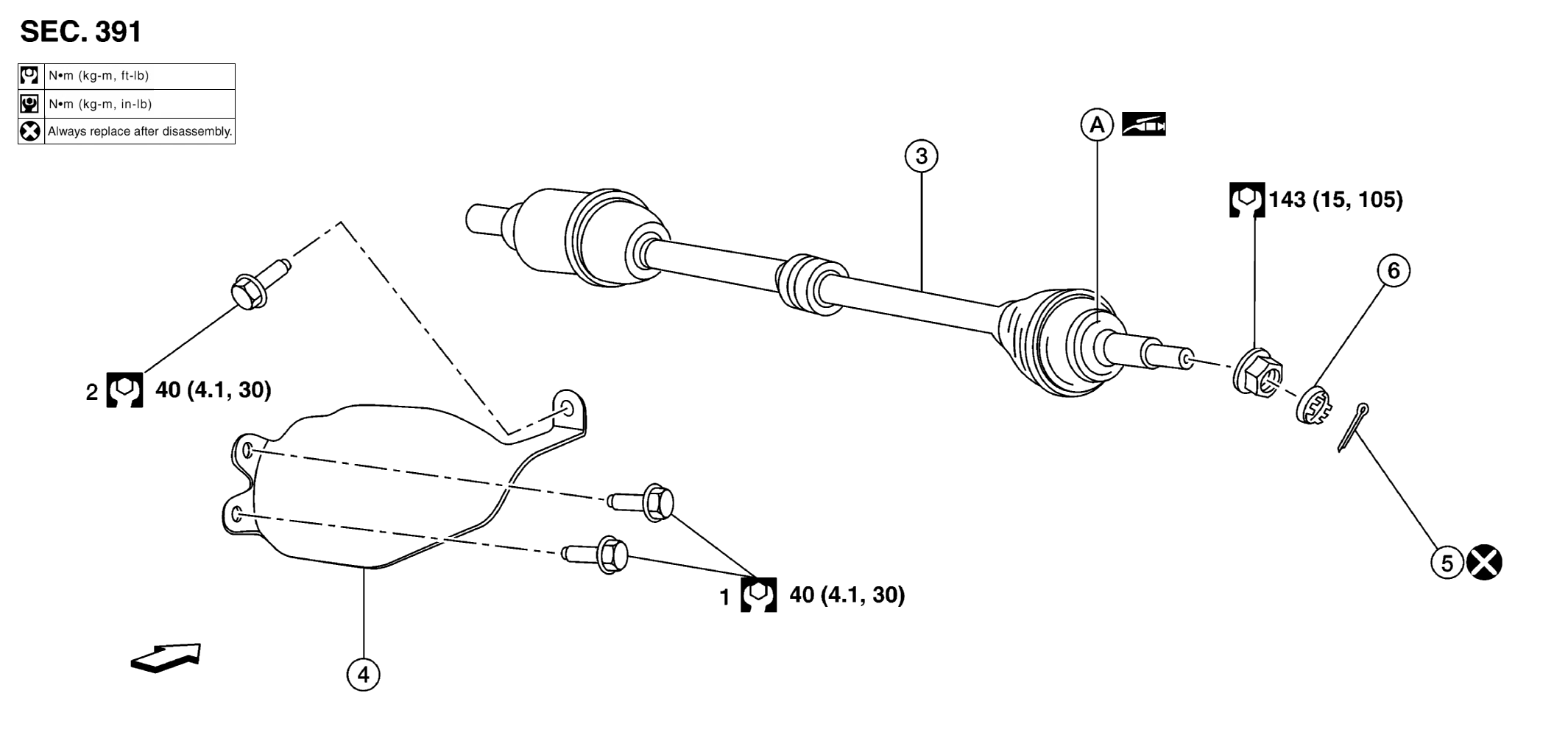

Fig 2: Exploded View Of Front Drive Shaft (LH) With Torque Specifications (2 Of 2)
GNSAWDIA1209ZZ-209ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1-2 Tightening order 3. Front drive shaft 4. Heat shield
5. Cotter pin 6. Nut retainer A. Molykote M77
ARROW Front
