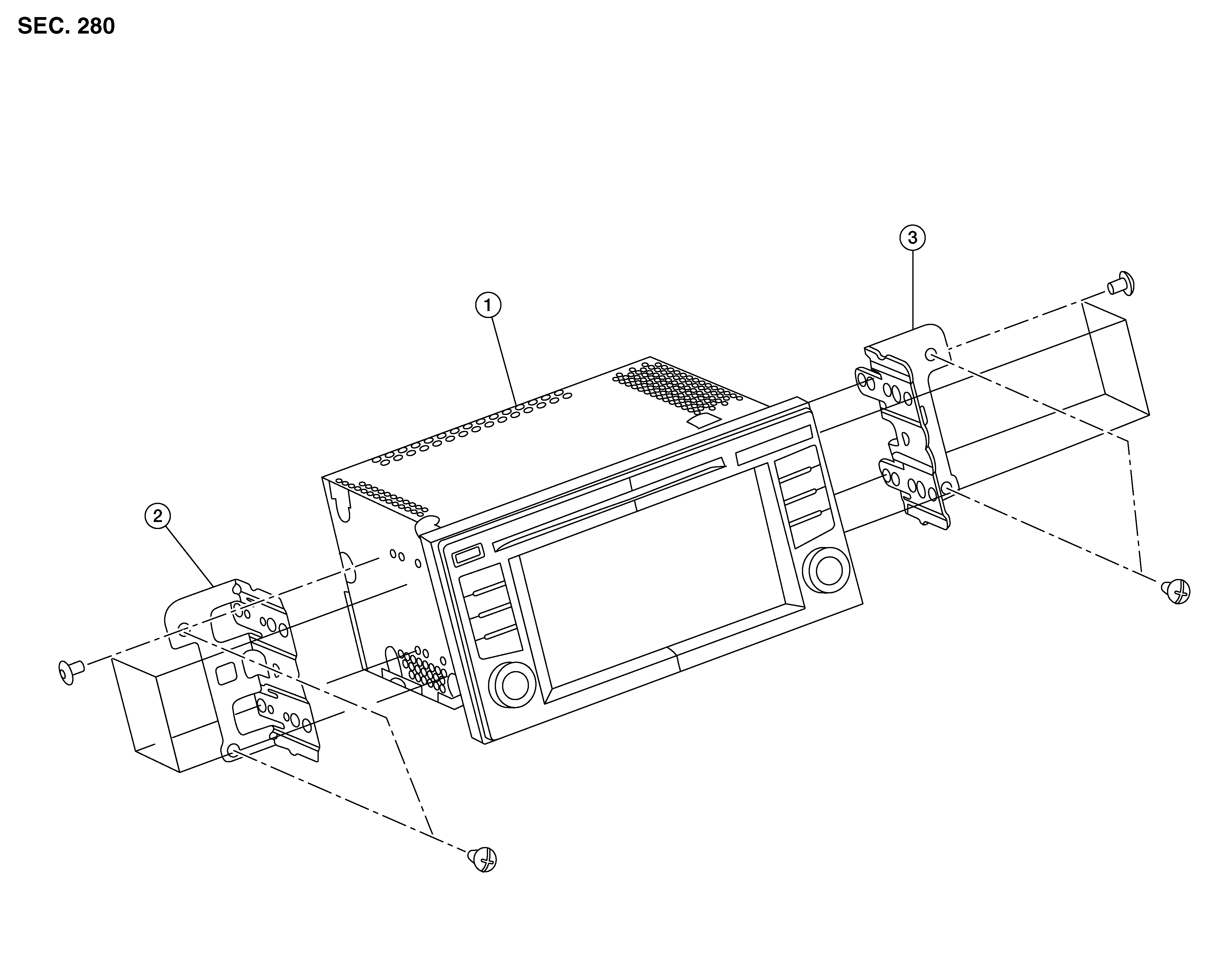

Exploded View With Torque Specifications

GNSAWNIA3949ZZ-949

Courtesy of NISSAN NORTH AMERICA, INC.

1.

AV control unit

2.

AV control unit bracket (LH)

3.

AV control unit bracket (RH)
