Av Control Unit Confirmation/Adjustment

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Select Confirmation/Adjustment.
  2. Select each switch on the Confirmation/Adjustment screen to display the relevant trouble diagnosis screen. Press the BACK switch to return to the initial Confirmation/Adjustment screen.

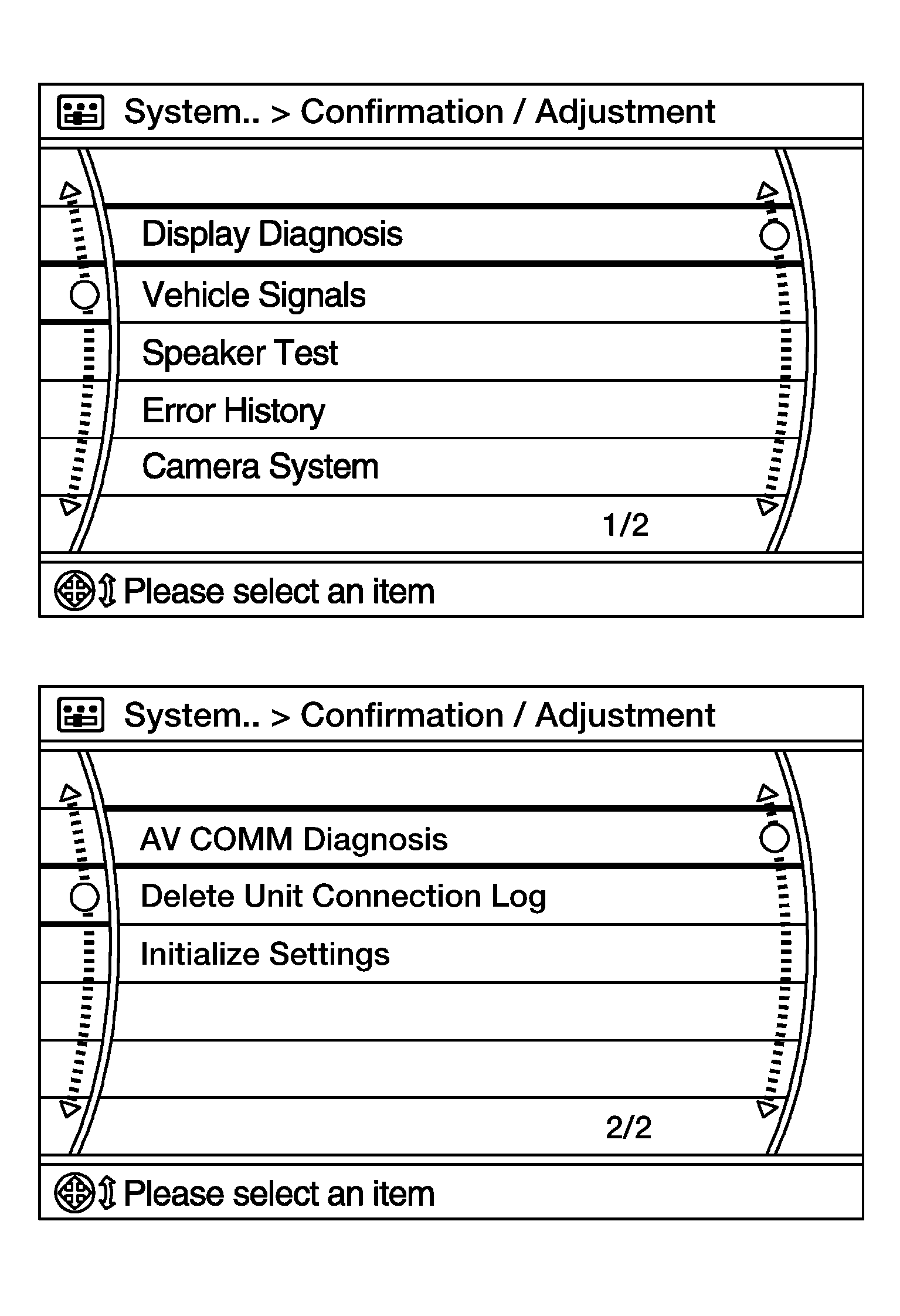

    Fig 1: System Diagnostic Menu Confirmation/Adjustment Screen Display
    G08689796Courtesy of NISSAN NORTH AMERICA, INC.
