Section 77 (Accelerator Control System (Hybrid))
>>
Removal And Installation
>>
Accelerator Pedal Assembly
>>
Exploded View

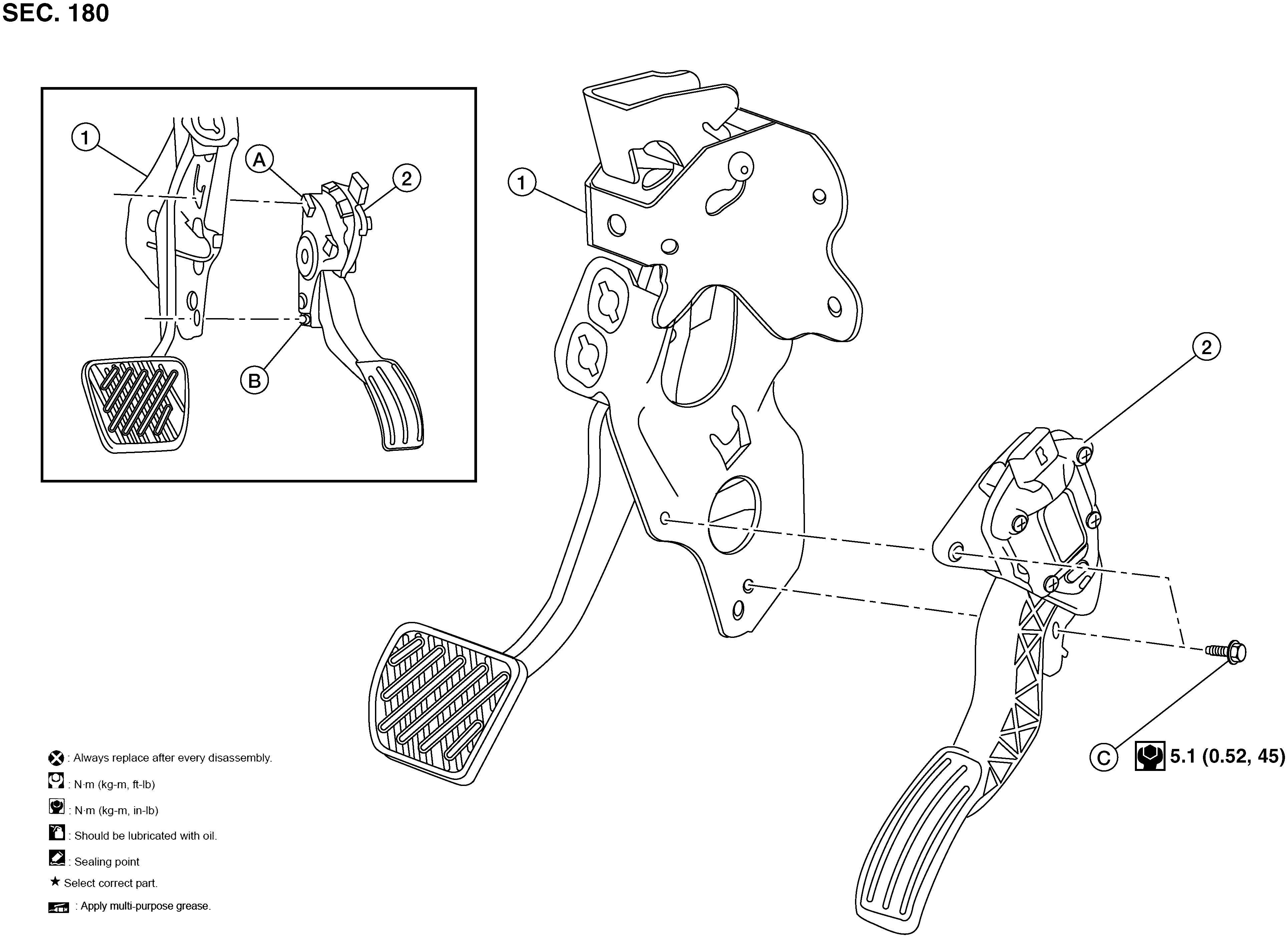

Exploded View
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Brake pedal
2.
Accelerator pedal assembly
A.
Locator hook
B.
Locator pin
C.
Bolt
Courtesy of NISSAN NORTH AMERICA, INC.
