Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

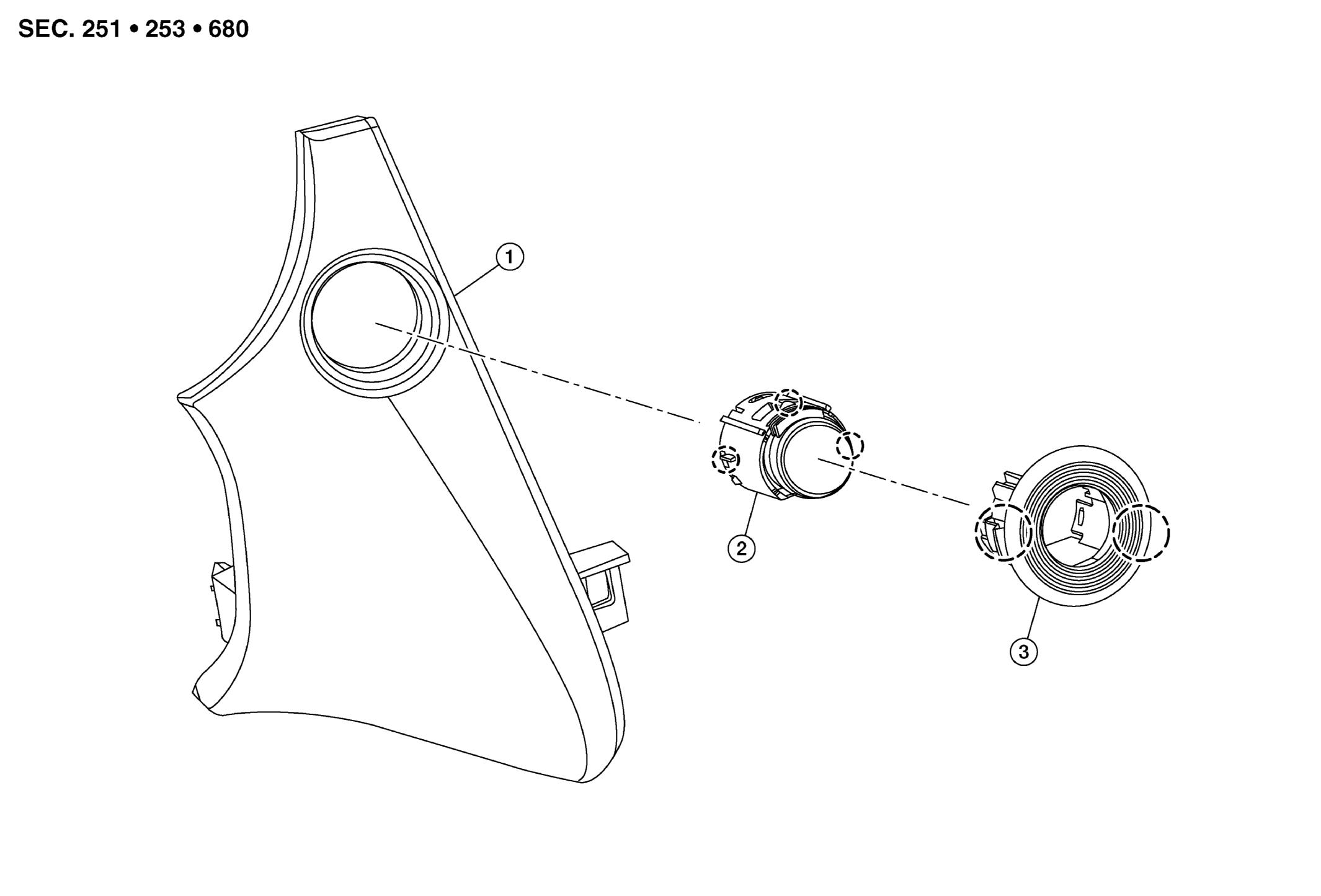

GNSAWMIA1891ZZ-891Courtesy of NISSAN NORTH AMERICA, INC.
1. Instrument finisher B 2. Push button ignition switch 3. NATS antenna amp.
MARU-H Pawl
