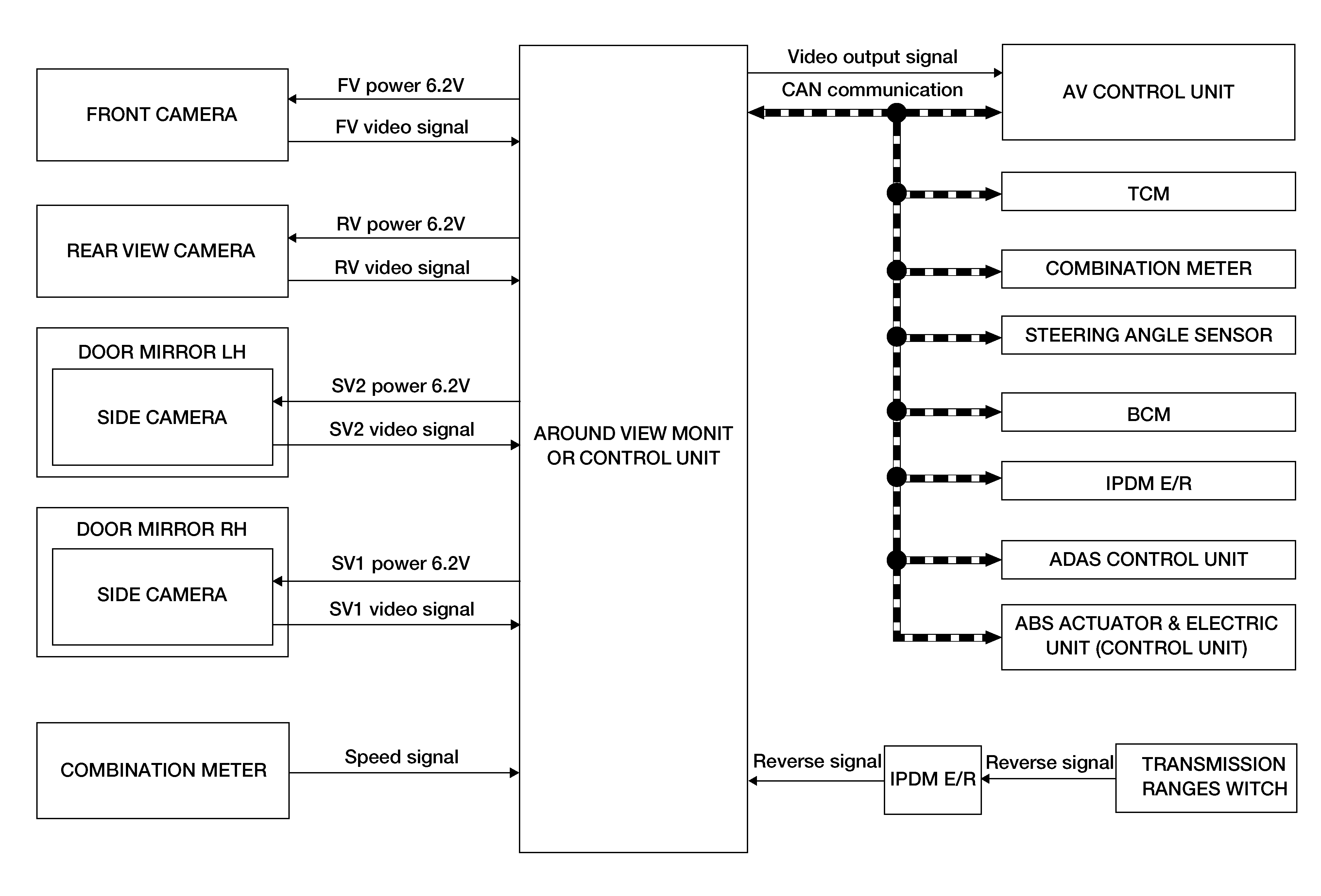

System Diagram

WARNING: This page is about a different variant/trim than selected.

GNSAWNIA4588GB-588

Courtesy of NISSAN NORTH AMERICA, INC.
