Section 32 (Audio, Visual & Navigation System (Around View Monitor System) (Hybrid))
>>
Removal And Installation
>>
Av Control Unit
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.

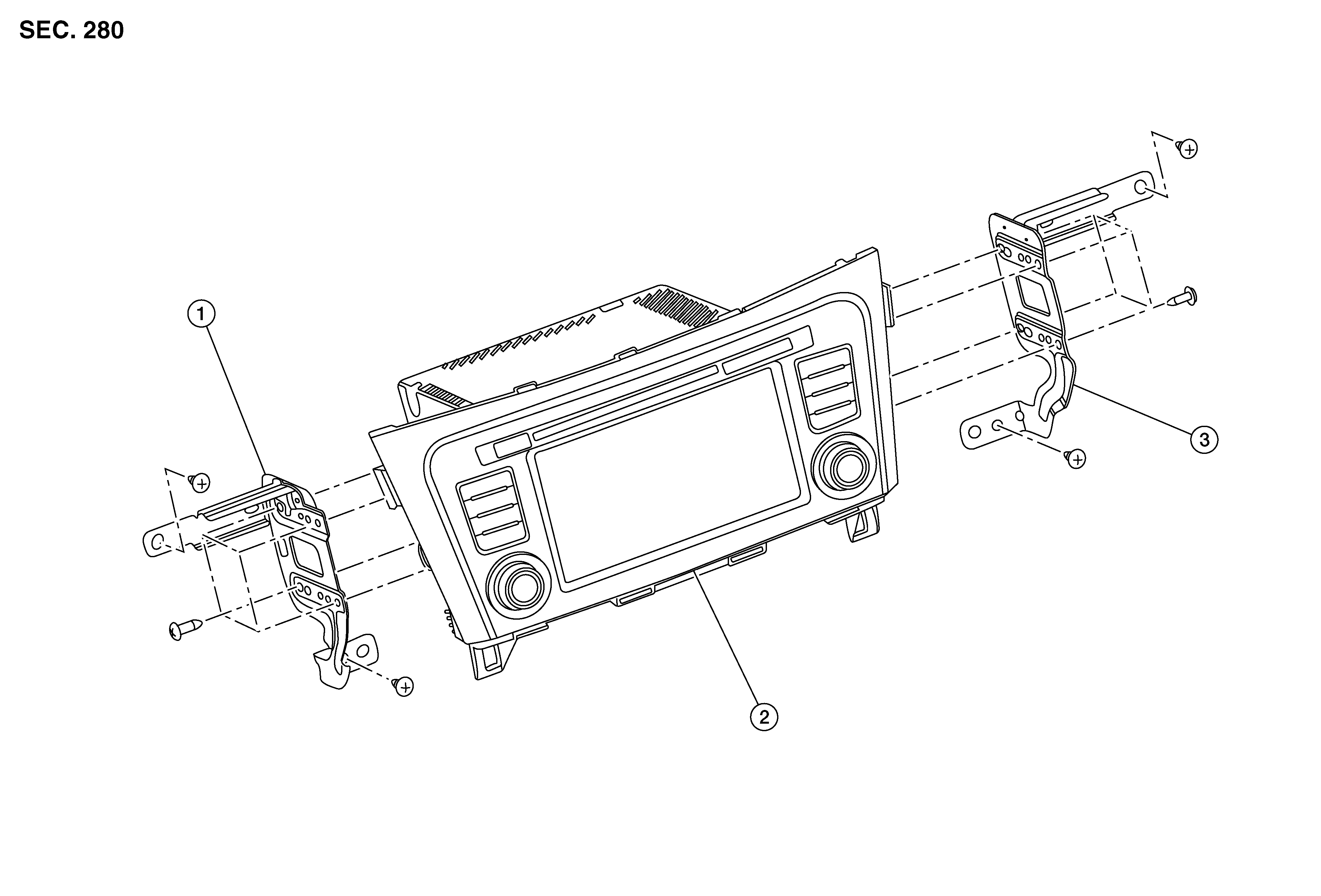

1.
AV control unit bracket (LH)
2.
AV control unit
3.
AV control unit bracket (RH)
