Section 32 (Audio, Visual & Navigation System (Around View Monitor System) (Hybrid))
>>
Removal And Installation
>>
Around View Monitor Control Unit
>>

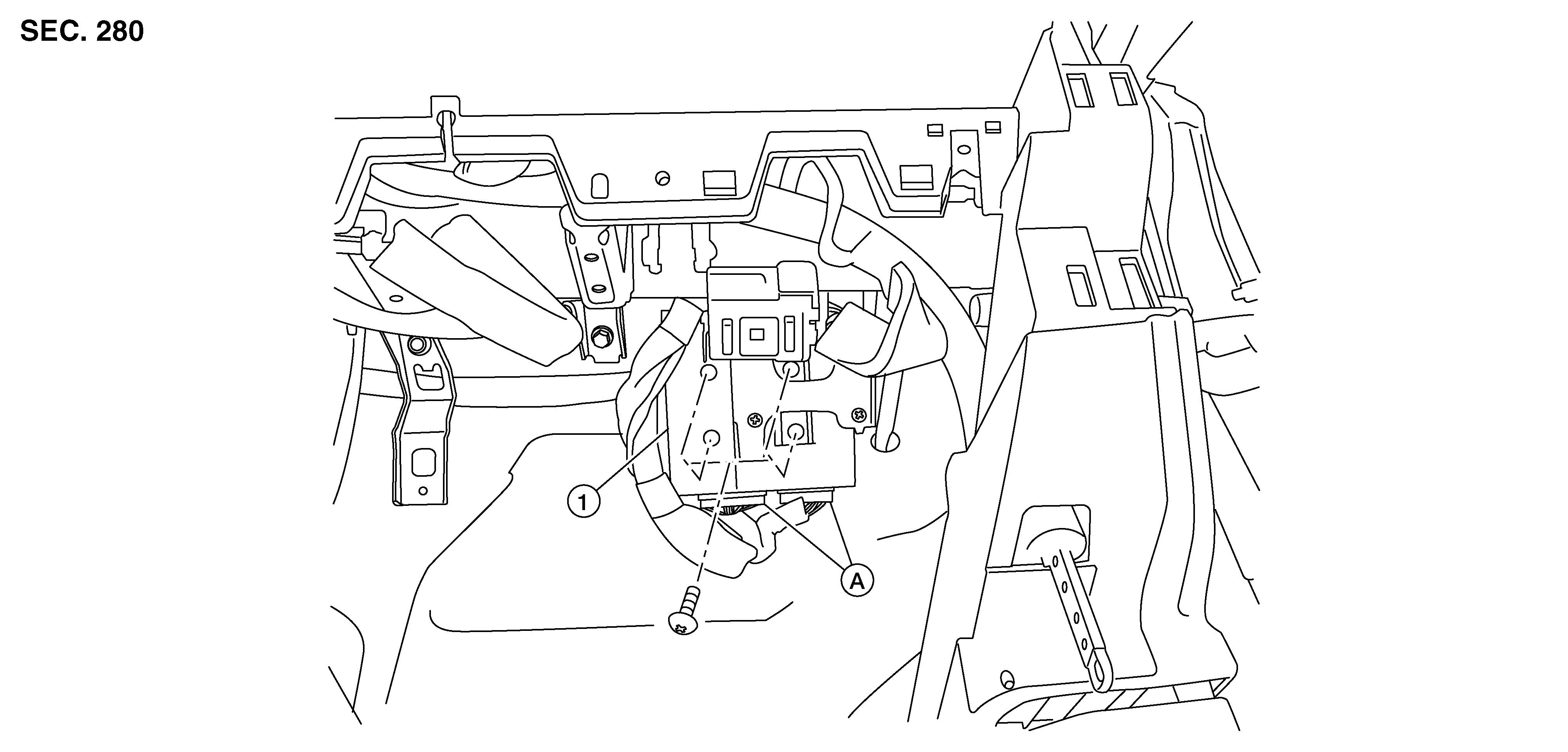

Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Around view monitor control unit
A.
Harness connector
