Component Location

WARNING: This page is about a different variant/trim than selected.

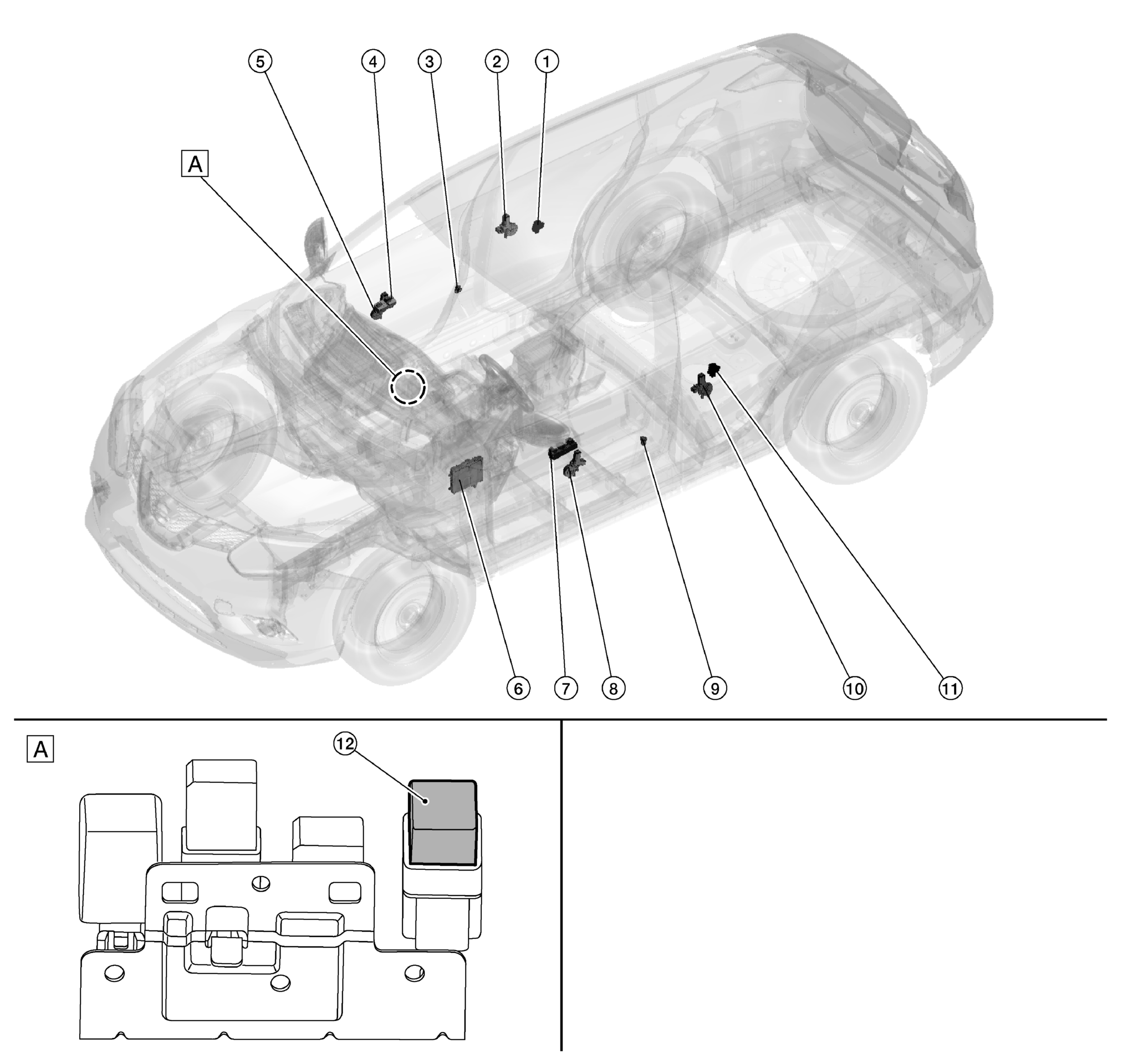

GNSALKIA4690ZZ-690Courtesy of NISSAN NORTH AMERICA, INC.
A. Relay block (shown with AC control unit removed)
No. COMPONENT Function
1. Rear power window switch RH Refer to REAR POWER WINDOW SWITCH .
2. Rear power window motor RH Refer to POWER WINDOW MOTOR .
3. Front door switch RH
4. Power window and door lock/unlock switch RH Refer to POWER WINDOW SWITCH RH .
5. Front power window motor RH Refer to POWER WINDOW MOTOR .
6. BCM
  • Supplies power supply to power window relay.
  • Controls retained power.
  • Refer to COMPONENT LOCATION for detailed installation

    location.
7. Main power window and door lock/unlock switch Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH .
8. Front power window motor LH Refer to POWER WINDOW MOTOR .
9. Front door switch LH
10. Rear power window motor LH Refer to POWER WINDOW MOTOR .
11. Rear power window switch LH Refer to REAR POWER WINDOW SWITCH .
12. Power window relay Operates the power window system with the control signal from the BCM.
