System Control Condition Display

Quickly push (less than 1.5 seconds) and release the ICC MAIN switch.

Condition Display on ICC system display

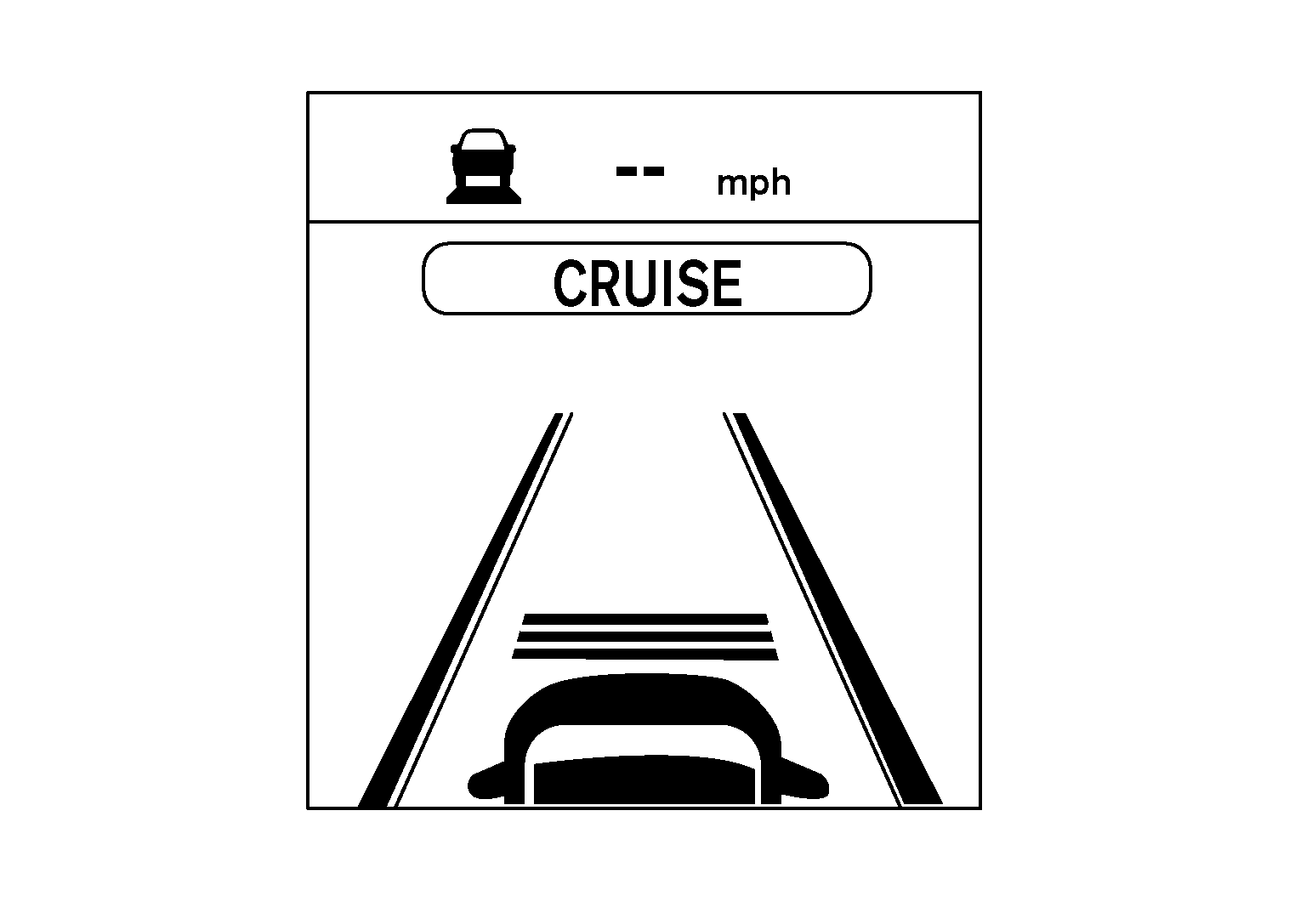

Standby mode
GNSALOIA0545ZZ-545Courtesy of NISSAN NORTH AMERICA, INC.

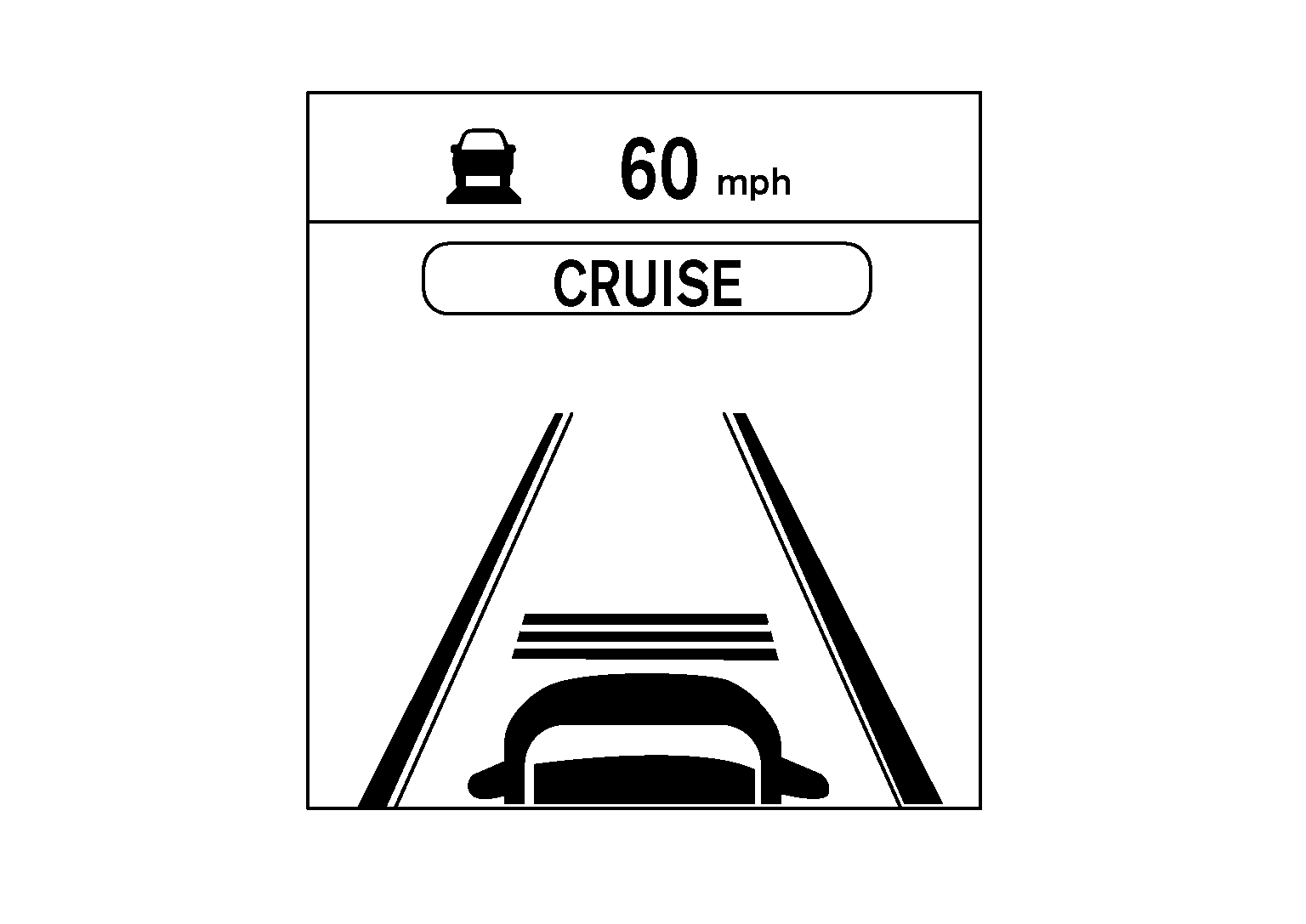

Control mode Without a vehicle ahead Set vehicle distance (Long)
GNSALOIA0546ZZ-546Courtesy of NISSAN NORTH AMERICA, INC.

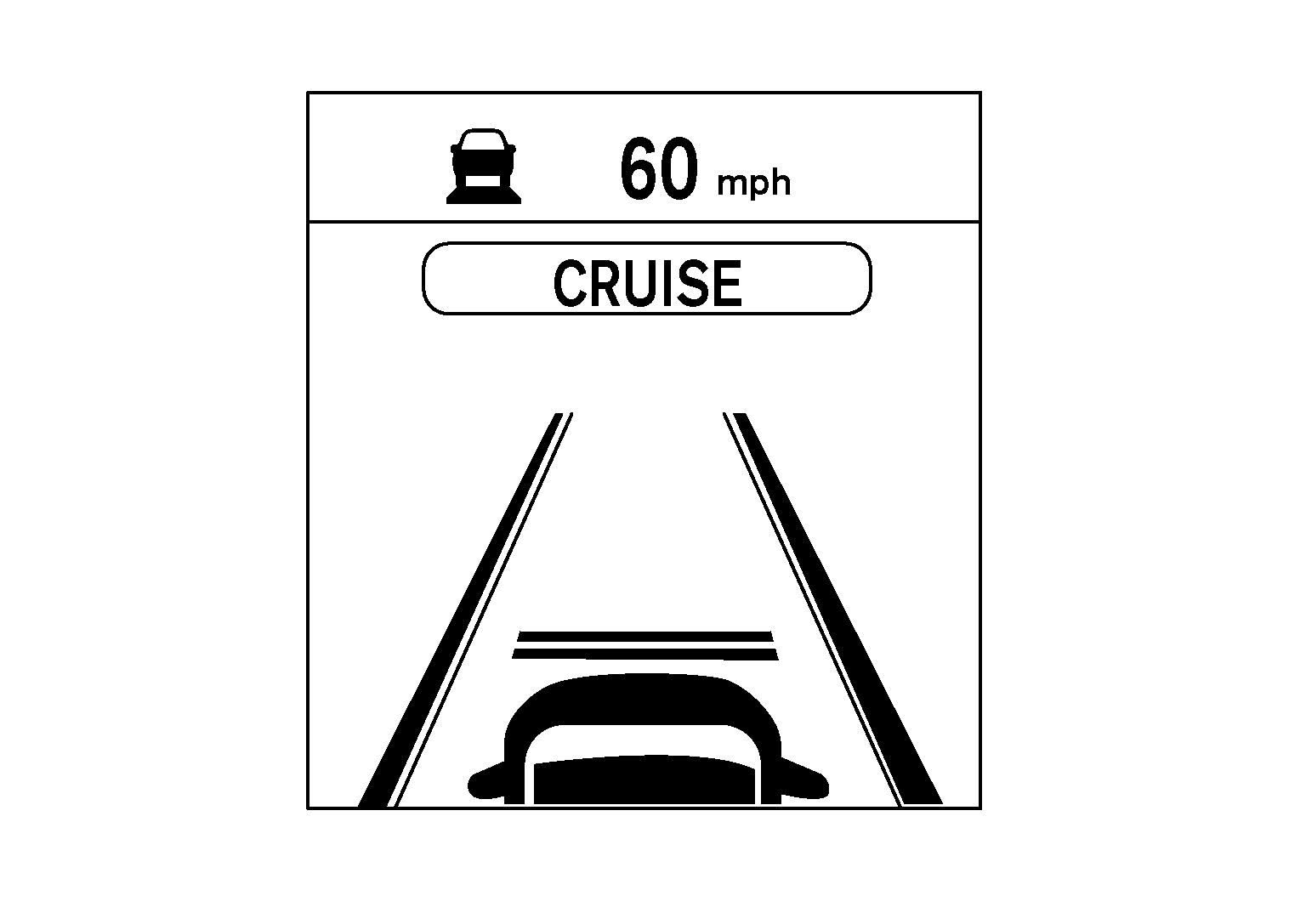

Set vehicle distance (Middle)
GNSALOIA0547ZZ-547Courtesy of NISSAN NORTH AMERICA, INC.

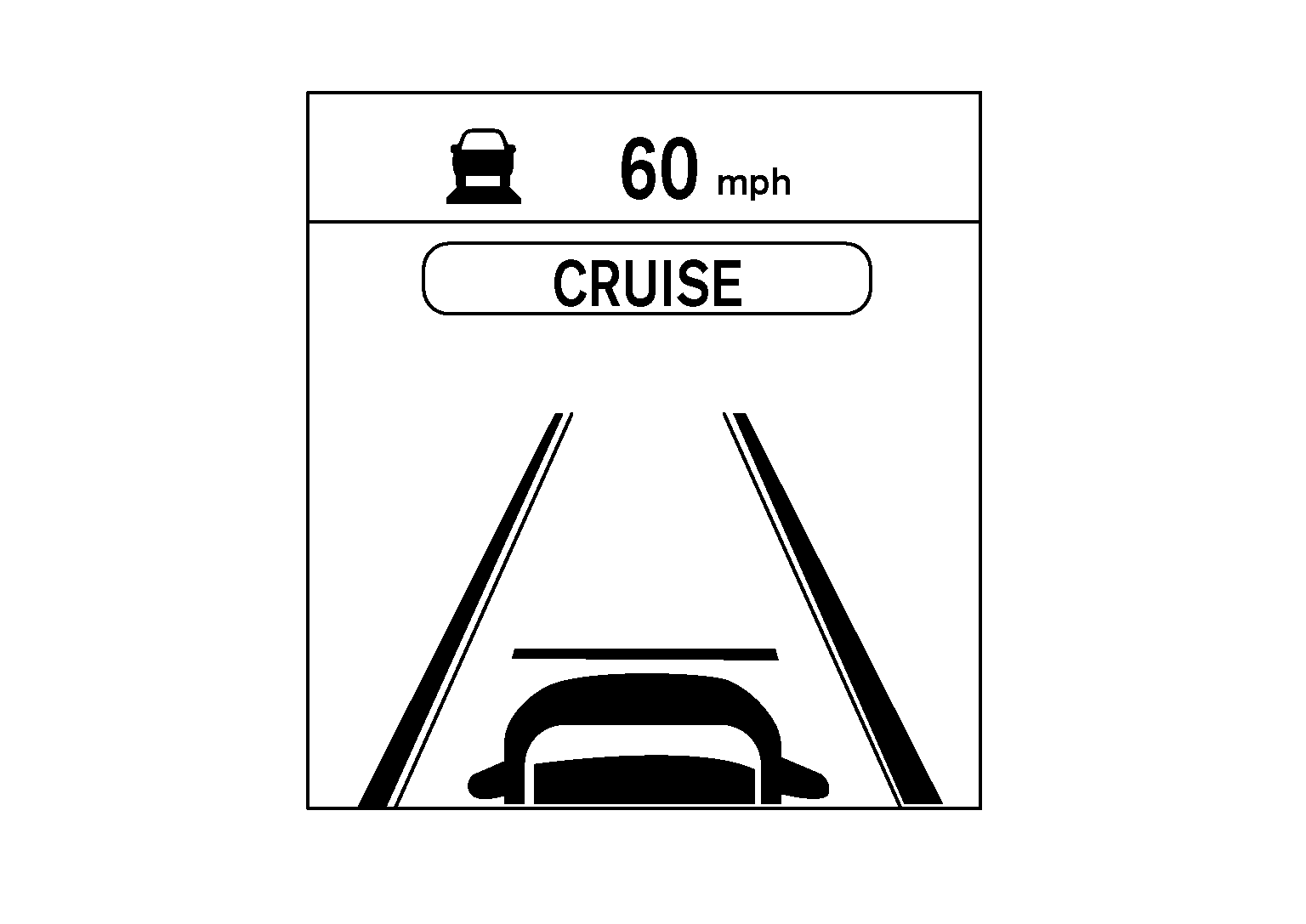

Set vehicle distance (Short)
GNSALOIA0548ZZ-548Courtesy of NISSAN NORTH AMERICA, INC.
When the vehicle speed exceeds the set speed
GNSALOIA0549ZZ-549Courtesy of NISSAN NORTH AMERICA, INC.
Control mode With a vehicle ahead Set vehicle distance (Long)
GNSALOIA0550ZZ-550Courtesy of NISSAN NORTH AMERICA, INC.
Set vehicle distance (Middle)
GNSALOIA0551ZZ-551Courtesy of NISSAN NORTH AMERICA, INC.

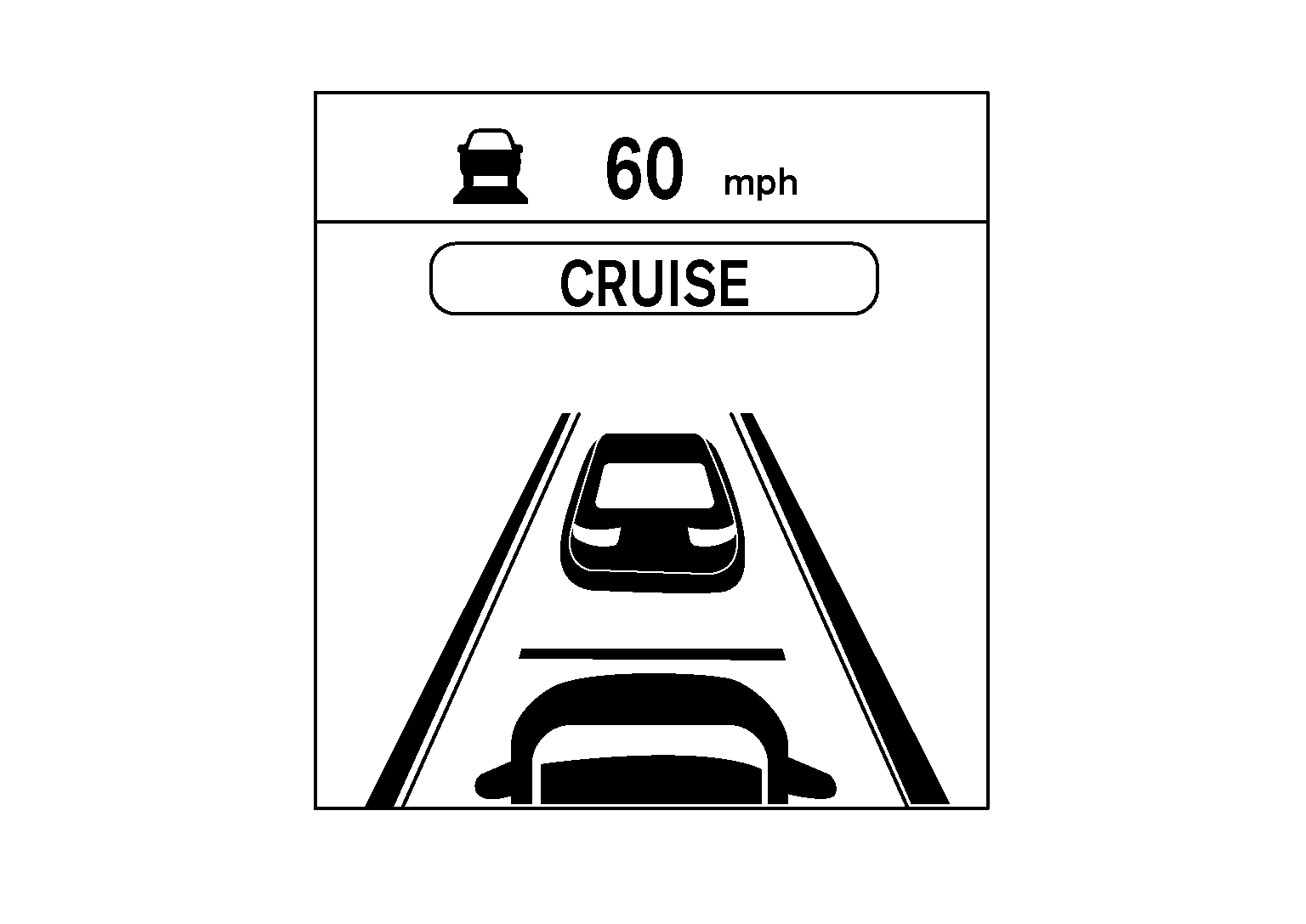

Set vehicle distance (Short)
GNSALOIA0552ZZ-552Courtesy of NISSAN NORTH AMERICA, INC.

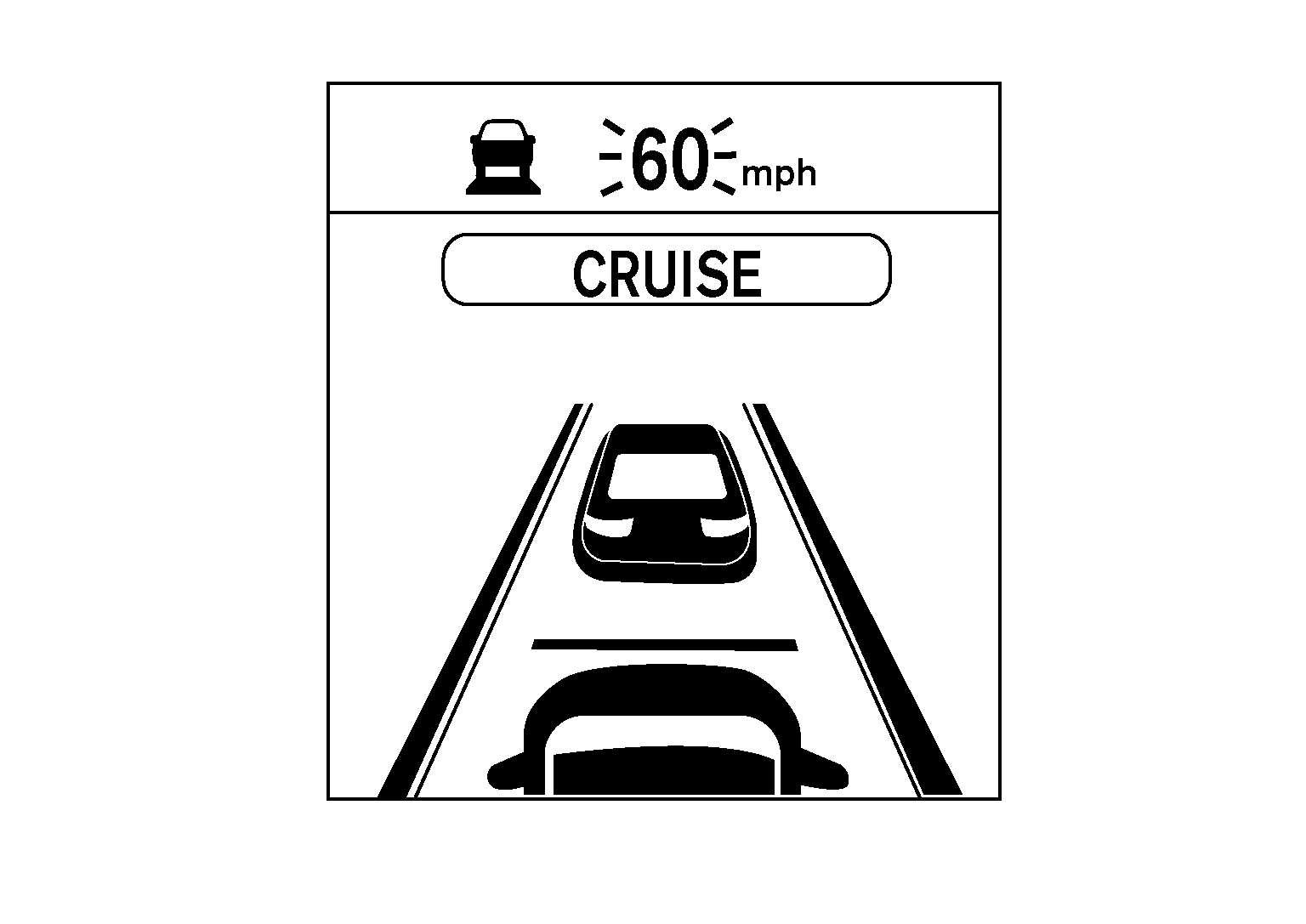

When the vehicle speed exceeds the set speed
GNSALOIA0553ZZ-553Courtesy of NISSAN NORTH AMERICA, INC.
