Component Location

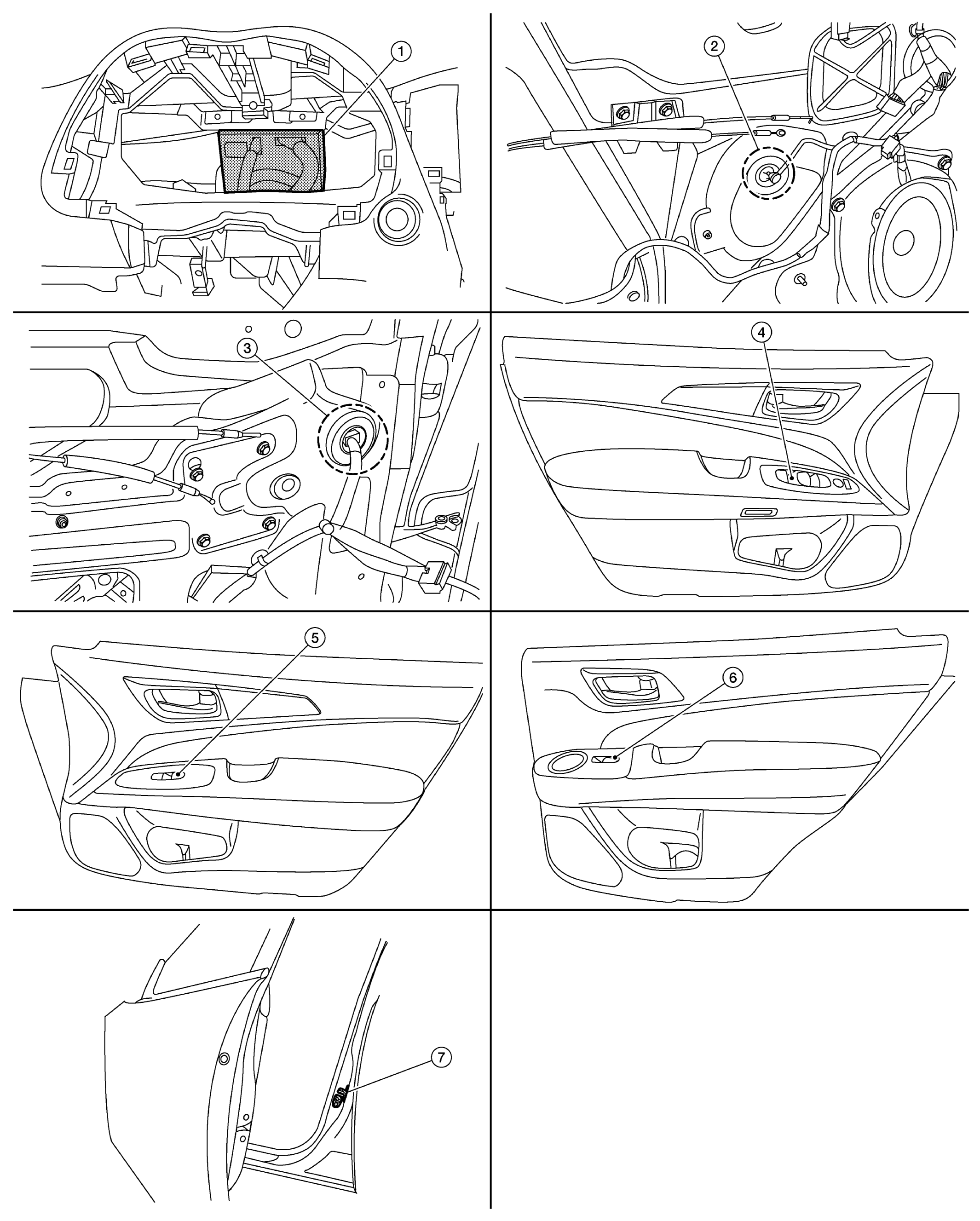

GNSAWKIA3777ZZ-777Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view with the combination meter removed) 2. Front power window motor LH (RH similar) (view with front door finisher removed) 3. Rear power window motor LH (RH similar) (view with rear door finisher removed)
4. Main power window and door lock/unlock switch 5. Power window and door lock/unlock switch RH 6. Rear power window switch LH (RH similar)
7. Front door switch LH (RH similar)
