Removal And Installation: Removal

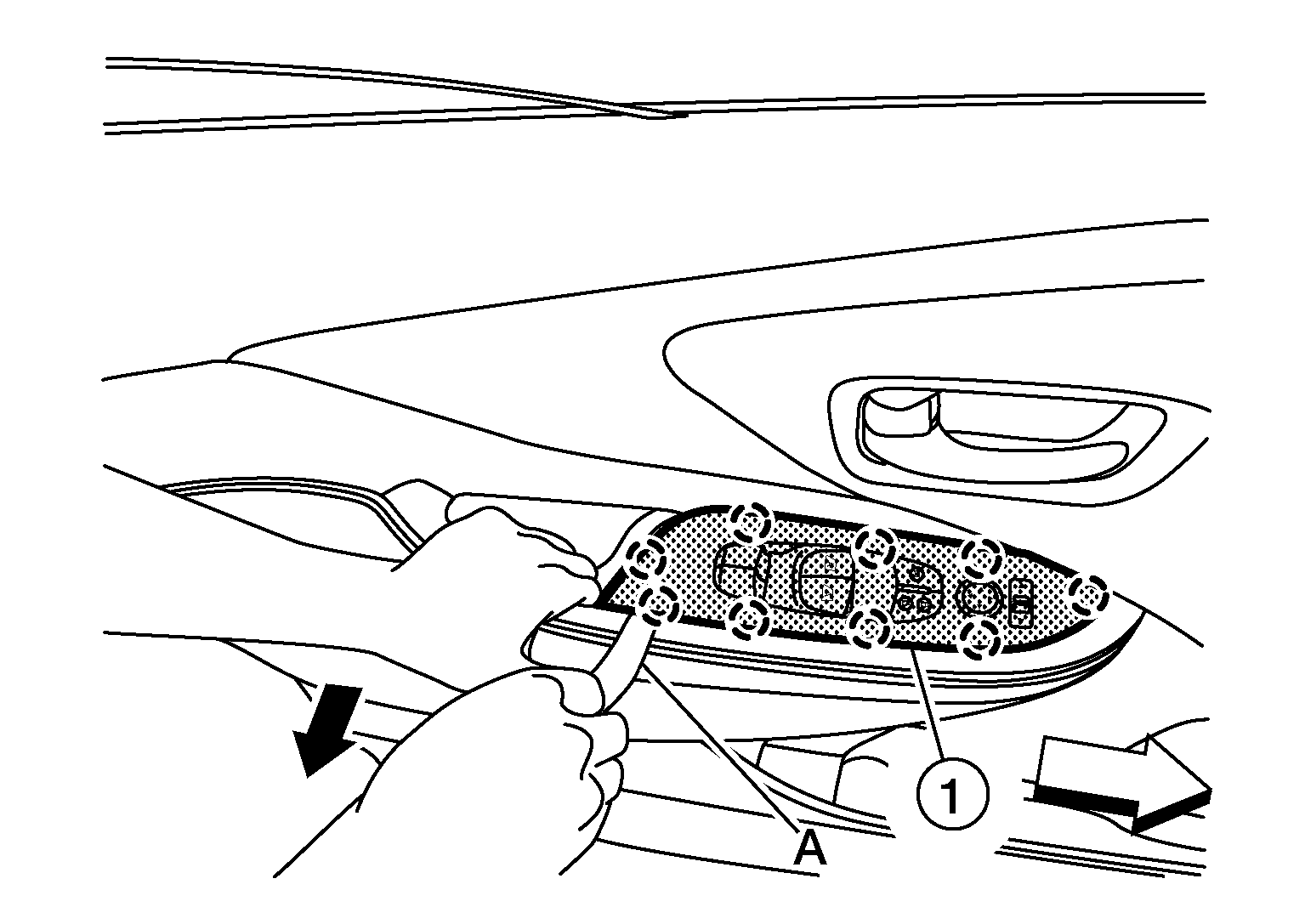

  1. Pull armrest in direction shown (ARROWF ) then starting at rear release main power window and door lock/unlock switch finisher (1) pawls using a suitable tool (A).
    GNSALJIA1664ZZ-664Courtesy of NISSAN NORTH AMERICA, INC.

    ARROW : Front

    MARU-H : Pawl

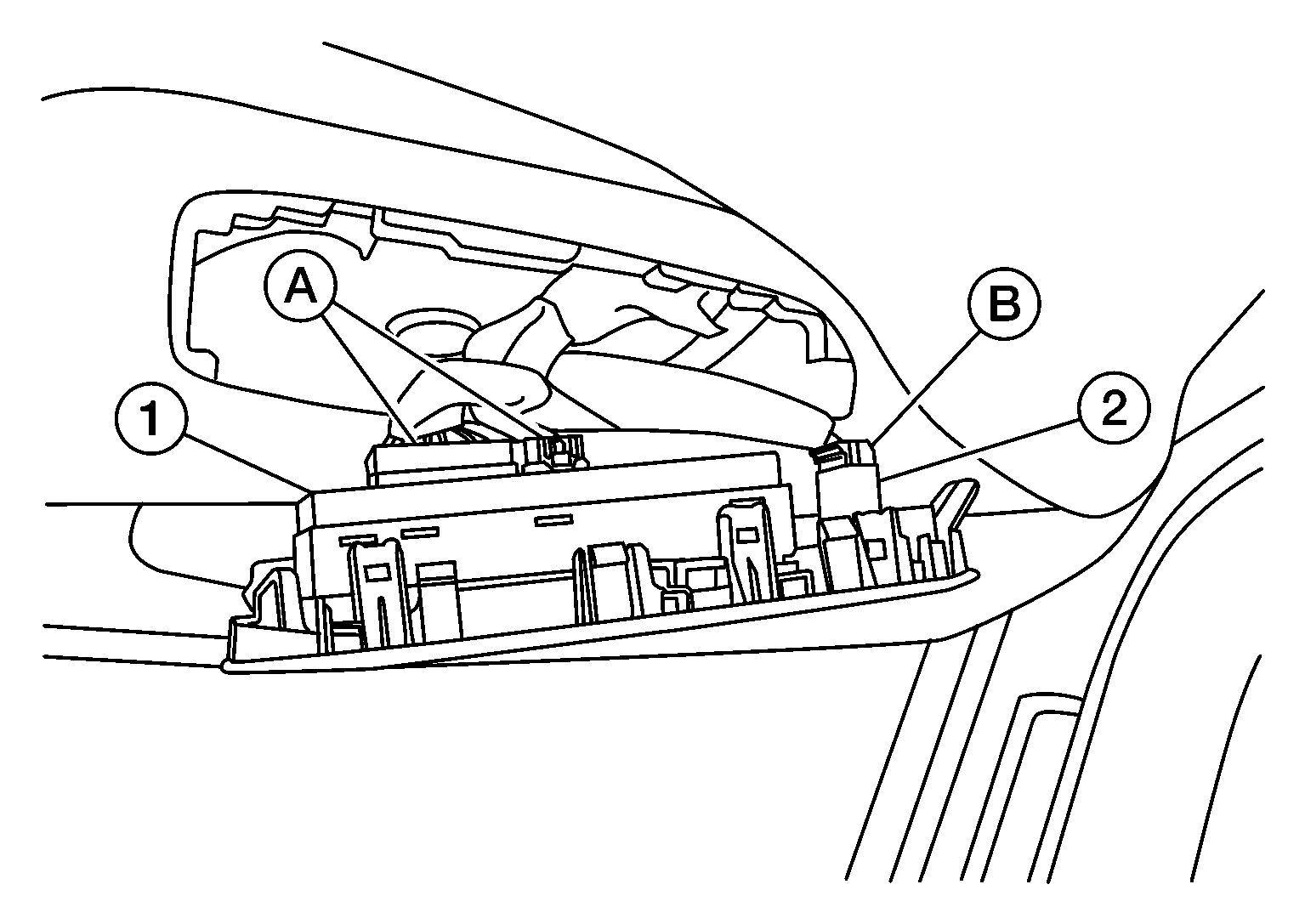

  2. Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1) and harness connector (B) from the door mirror remote control switch (2) and remove.
    G08946491Courtesy of NISSAN NORTH AMERICA, INC.

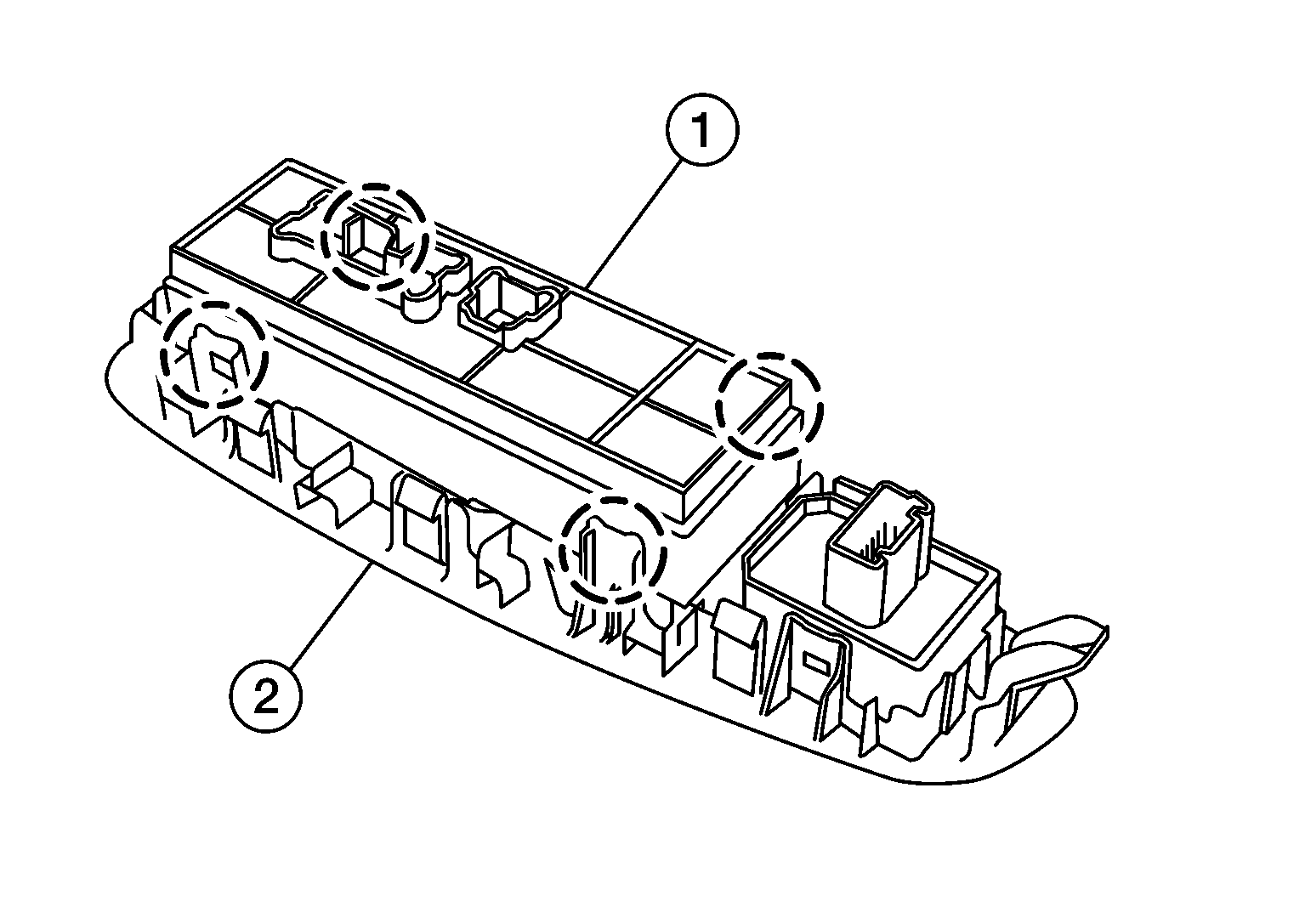

  3. Release pawls then separate main power window and door lock/unlock switch (1) from switch finisher (2).
    GNSALKIA2856ZZ-856Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl
