Exploded View

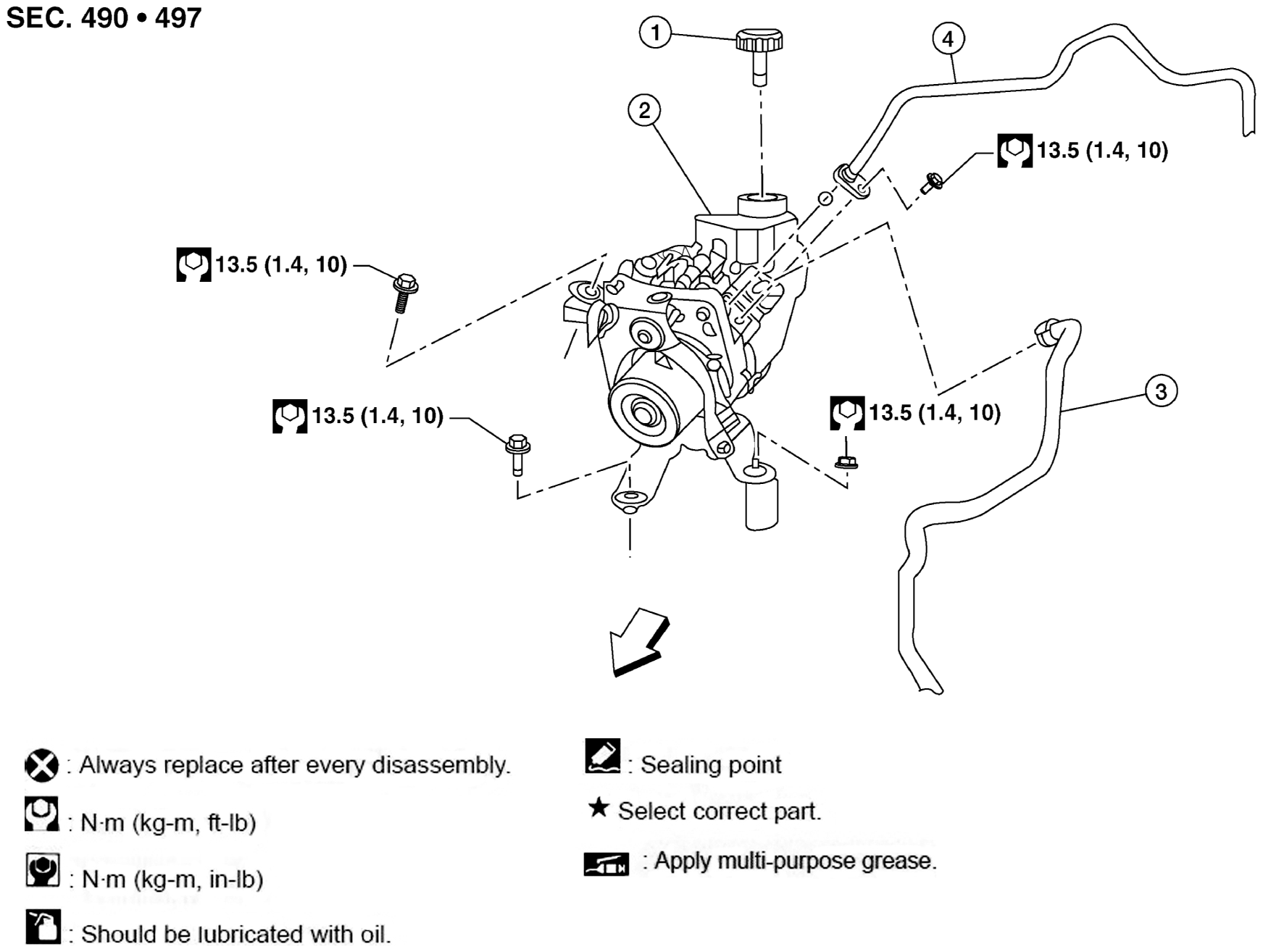

Fig 1: Power Steering Oil Pump With Torque Specifications
GNSAWGIA0338ZZ-338Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering reservoir cap 2. Power steering oil pump 3. Low-pressure piping
4. High-pressure piping ARROW Front
