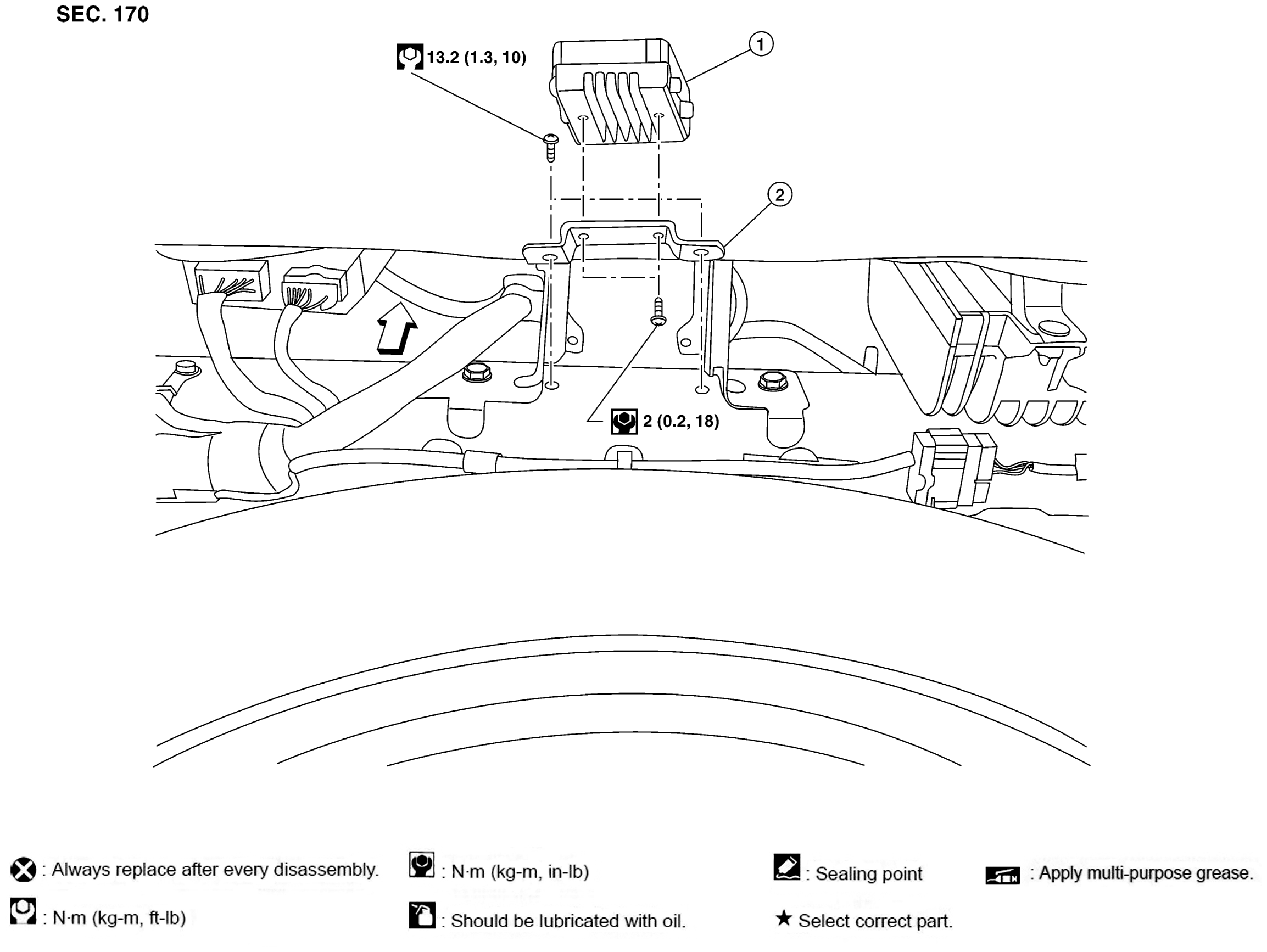

Exploded View With Torque Specifications

GNSALBIA1278ZZ-278

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel pump control module (FPCM)

2.

FPCM bracket

Front
