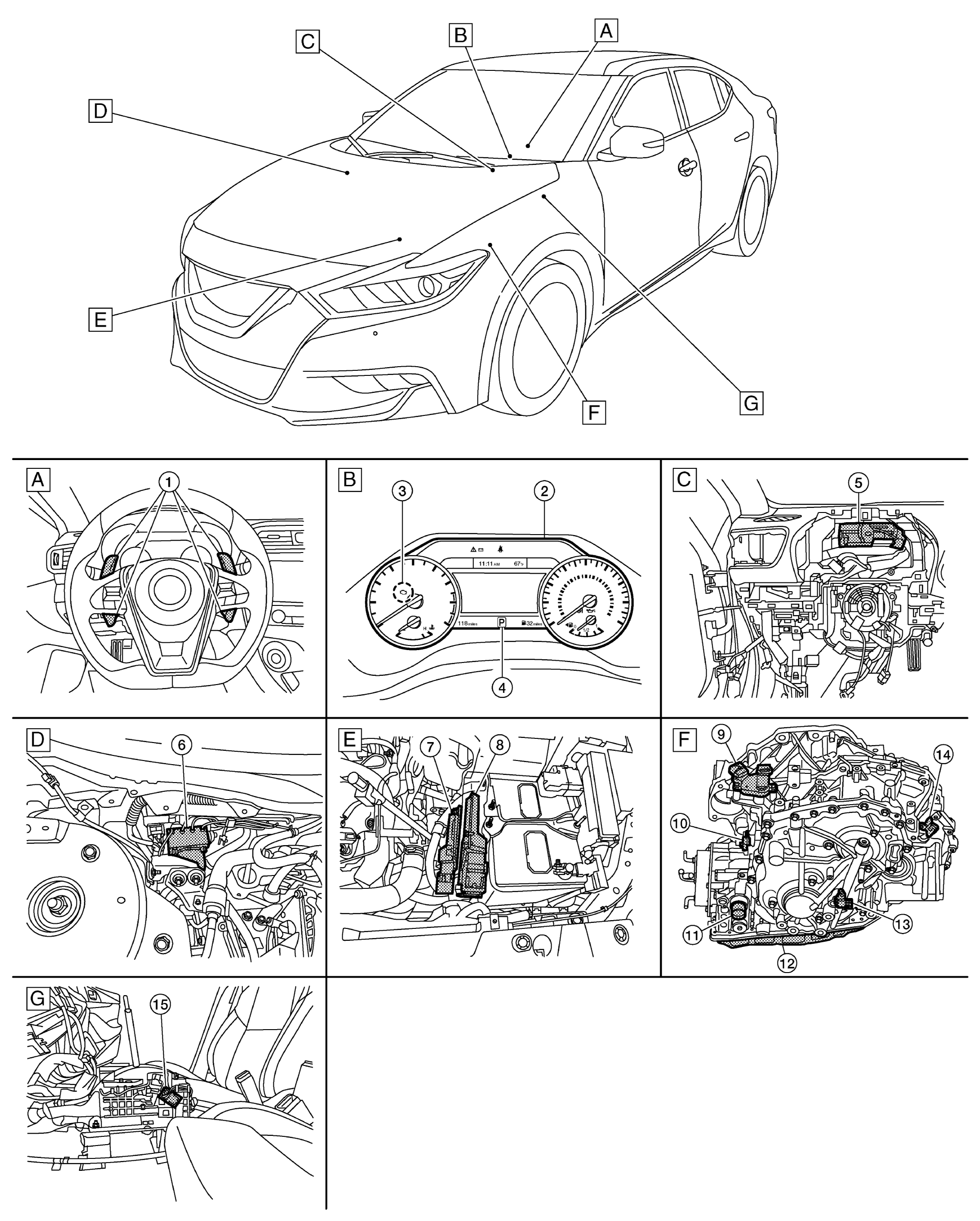

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

Behind of steering wheel	Combination meter	Behind of combination meter
Engine room RH	Engine room LH	Transaxle assembly
CVT shift selector assembly

Component		Function
Paddle shifter^{* 1}		PADDLE SHIFTER
Combination meter		The TCM receives the following signal via CAN communications from the combination meter for judging the driving request from the driver. Manual mode signal Non-manual mode signal Manual mode shift up signal Manual mode shift down signal Paddle shifter shift up signal^{* 1} Paddle shifter shift down signal^{* 1} Vehicle speed signal Sport mode switch signal The TCM transmits the following signal via CAN communications to the combination meter. Shift position indicator signal Sport mode indicator signal Refer to COMPONENT LOCATION for detailed installation location.
Malfunction indicator lamp (MIL)		MALFUNCTION INDICATOR LAMP (MIL)
Shift position indicator		SHIFT POSITION INDICATOR
BCM		Refer to COMPONENT LOCATION for detailed installation location.
ABS actuator and electric unit (control unit)		The TCM receives the following signal via CAN communications from the ABS actuator and electric unit (control unit). ABS operation signal TCS operation signal VDC operation signal ABS malfunction signal Refer to COMPONENT LOCATION (without ICC) or COMPONENT LOCATION (with ICC) for detailed installation location.
TCM		TCM
ECM		For purposes including improving the feeling when shifting speeds and preventing drops in engine speed, control signals are exchanged between the ECM and TCM, and real-time cooperative control is performed according to the vehicle driving conditions. (Engine and CVT integrated control) Engine and CVT integrated control signal NOTE: General term for the communication (torque-down permission, torque-down request, etc.) exchanged between the ECM and TCM. The TCM receives the following signal via CAN communications from the ECM. Engine speed signal Accelerator pedal position signal Closed throttle position signal The TCM transmits the following signal via CAN communications to the ECM. Malfunctioning indicator lamp signal Refer to COMPONENT LOCATION for detailed installation location.
Transmission range switch		TRANSMISSION RANGE SWITCH
Input speed sensor		INPUT SPEED SENSOR
CVT unit connector		-
Control valve	CVT fluid temperature sensor^{* 2}	CVT FLUID TEMPERATURE SENSOR
	Primary pressure sensor^{* 2}	PRIMARY PRESSURE SENSOR
	Secondary pressure sensor^{* 2}	SECONDARY PRESSURE SENSOR
	Primary pressure solenoid valve^{* 2}	PRIMARY PRESSURE SOLENOID VALVE
	Secondary pressure solenoid valve^{* 2}	SECONDARY PRESSURE SOLENOID VALVE
	Select solenoid valve^{* 2}	SELECT SOLENOID VALVE
	Torque converter clutch solenoid valve^{* 2}	TORQUE CONVERTER CLUTCH SOLENOID VALVE
	Line pressure solenoid valve^{* 2}	LINE PRESSURE SOLENOID VALVE
Primary speed sensor		PRIMARY SPEED SENSOR
Output speed sensor		OUTPUT SPEED SENSOR
Manual mode switch		MANUAL MODE SWITCH

* 1: Models with paddle shifter

* 2: These components are included in control valve assembly.
