Rear View

The rear view image improves the visibility of obstacles in the rear of the vehicle and assists backing and parking by displaying images from birds-eye view and front side view.
The rear view image displays the vehicle width guiding line and vehicle distance guiding line, in addition to the predictive course line according to the steering angle.
NOTE:
The predictive course line is not displayed at the steering neutral position.
The around view monitor control unit receives the steering angle signal from steering angle sensor via CAN communication, and controls the direction and distance of the predictive course line.
ON/OFF setting of predictive course line can be performed using CONSULT.

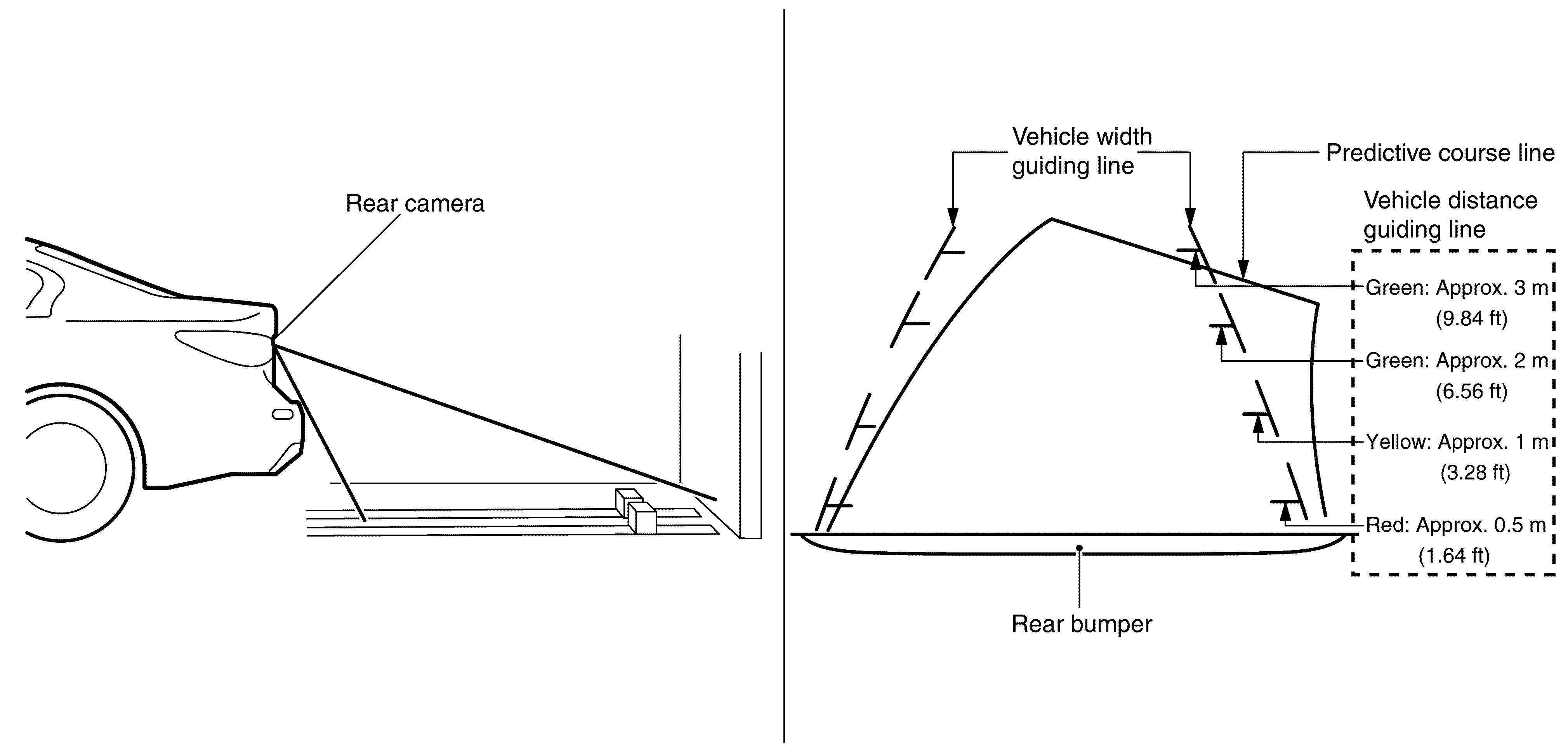

Rear view guiding lines

Courtesy of NISSAN NORTH AMERICA, INC.
