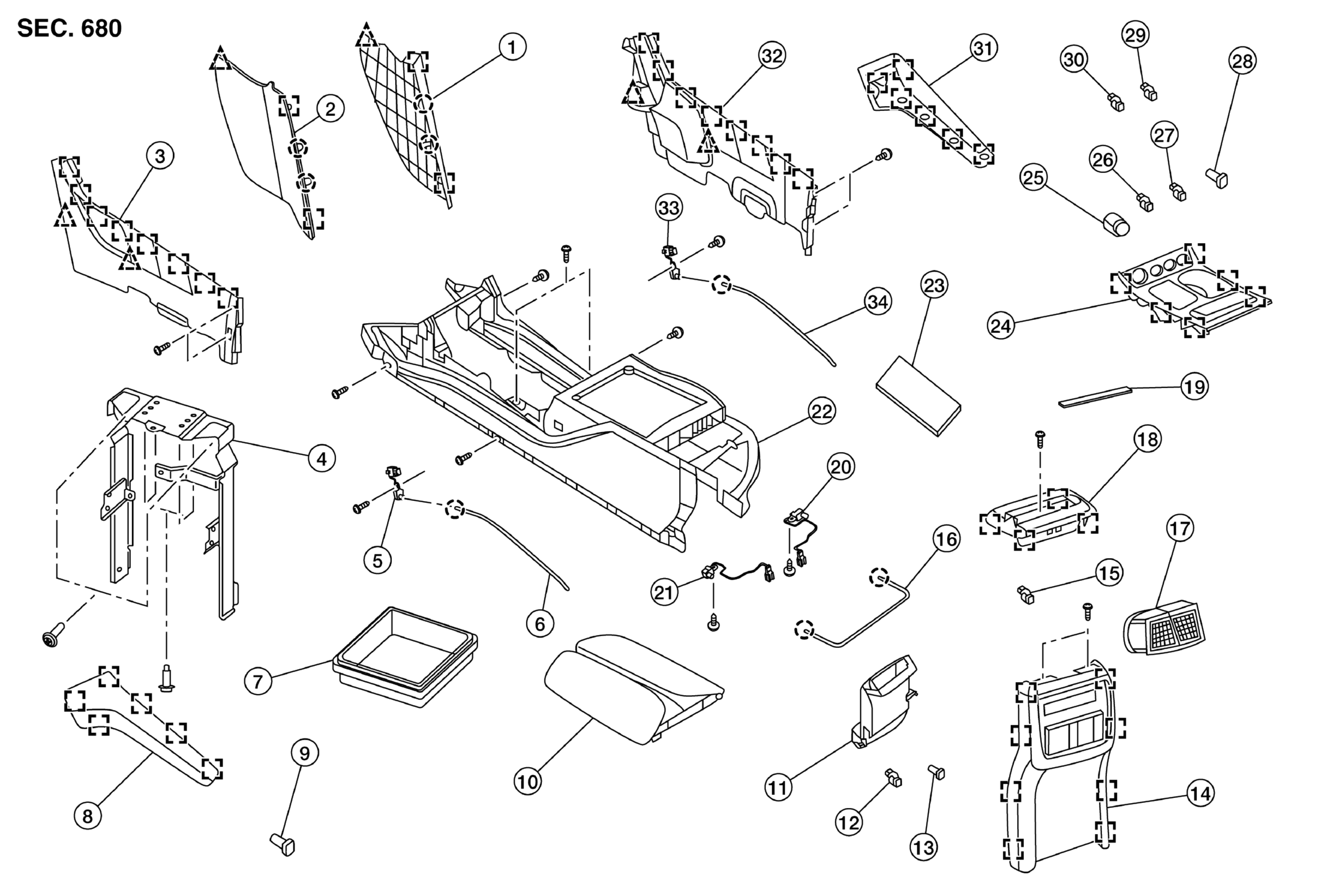

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Center console side finisher (RH) | 2. | Center console side finisher (LH) | 3. | Center console lower side finisher (LH) |
| 4. | Center console reinforcement bracket | 5. | Mood lamp [front console LH (if equipped) ] | 6. | Mood lamp lens [front console LH (if equipped) ] |
| 7. | Center console bin | 8. | Center console upper side finisher (LH) | 9. | Rear center ventilator duct |
| 10. | Center console lid | 11. | Rear center ventilator duct | 12. | 2nd row heated seat switch [LH (if equipped) ] |
| 13. | Rear USB interface | 14. | Center console rear finisher | 15. | 2nd row heated seat switch [RH (if equipped) ] |
| 16. | Mood lamp lens [rear console (if equipped) ] | 17. | Rear ventilator grille assembly | 18. | Center console tray |
| 19. | Center console rear tray mat | 20. | Mood lamp [rear console RH (if equipped) ] | 21. | Mood lamp [rear console LH (if equipped) ] |
| 22. | Center console assembly | 23. | Center console front tray mat | 24. | Shift selector finisher |
| 25. | Push-button ignition switch | 26. | Front heated seat switch [LH (if equipped) ] | 27. | Front heated seat switch [RH (if equipped) ] |
| 28. | Front power socket | 29. | Front climate controlled seat switch [RH (if equipped) ] | 30. | Front climate controlled seat switch [LH (if equipped) ] |
| 31. | Center console upper side finisher (RH) | 32. | Center console lower side finisher (RH) | 33. | Mood lamp [front console RH (if equipped) ] |
| 34. | Mood lamp lens [front console RH (if equipped) ] | Pawl | Metal clip | ||
| Clip |
