Electronically Controlled Power Steering System: Wiring Diagram

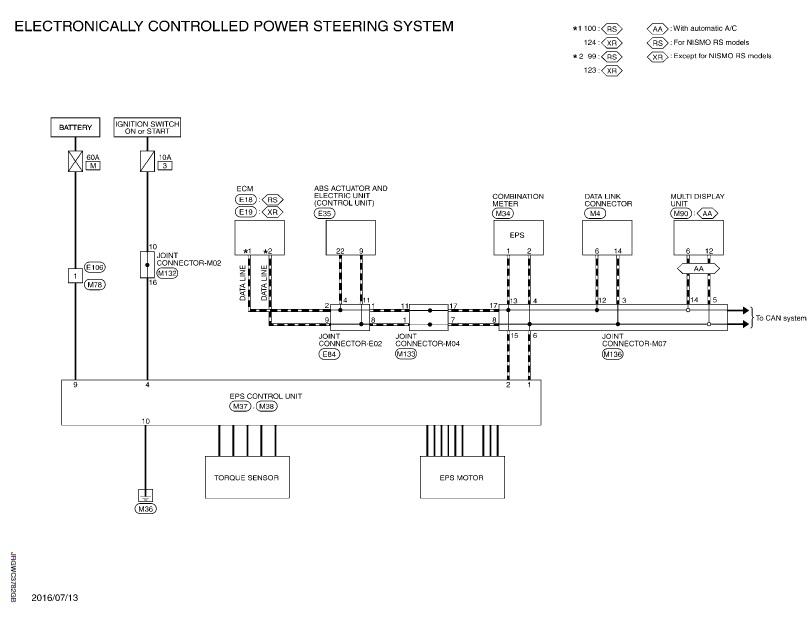

G00582231

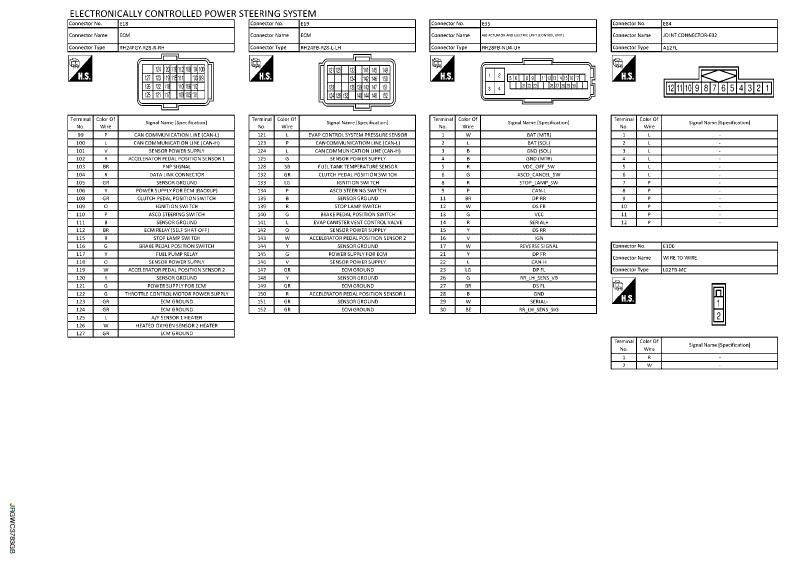

G00582232

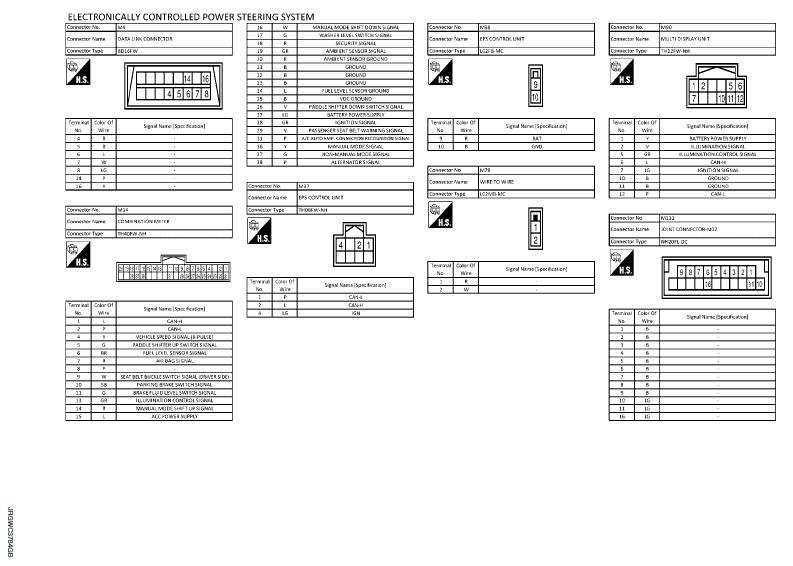

G00582233

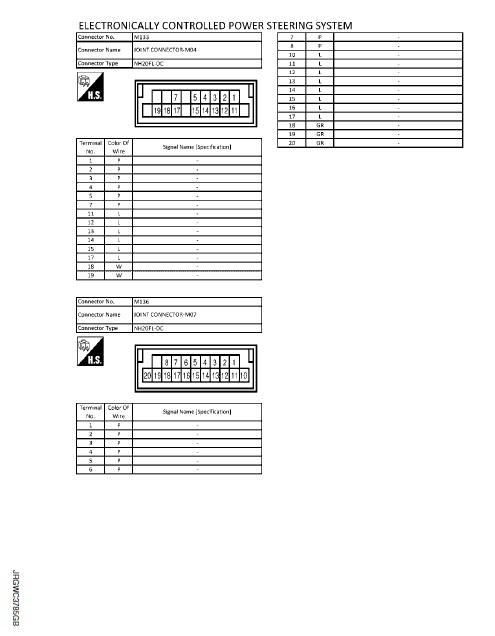

G00582234
