Exploded View

WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

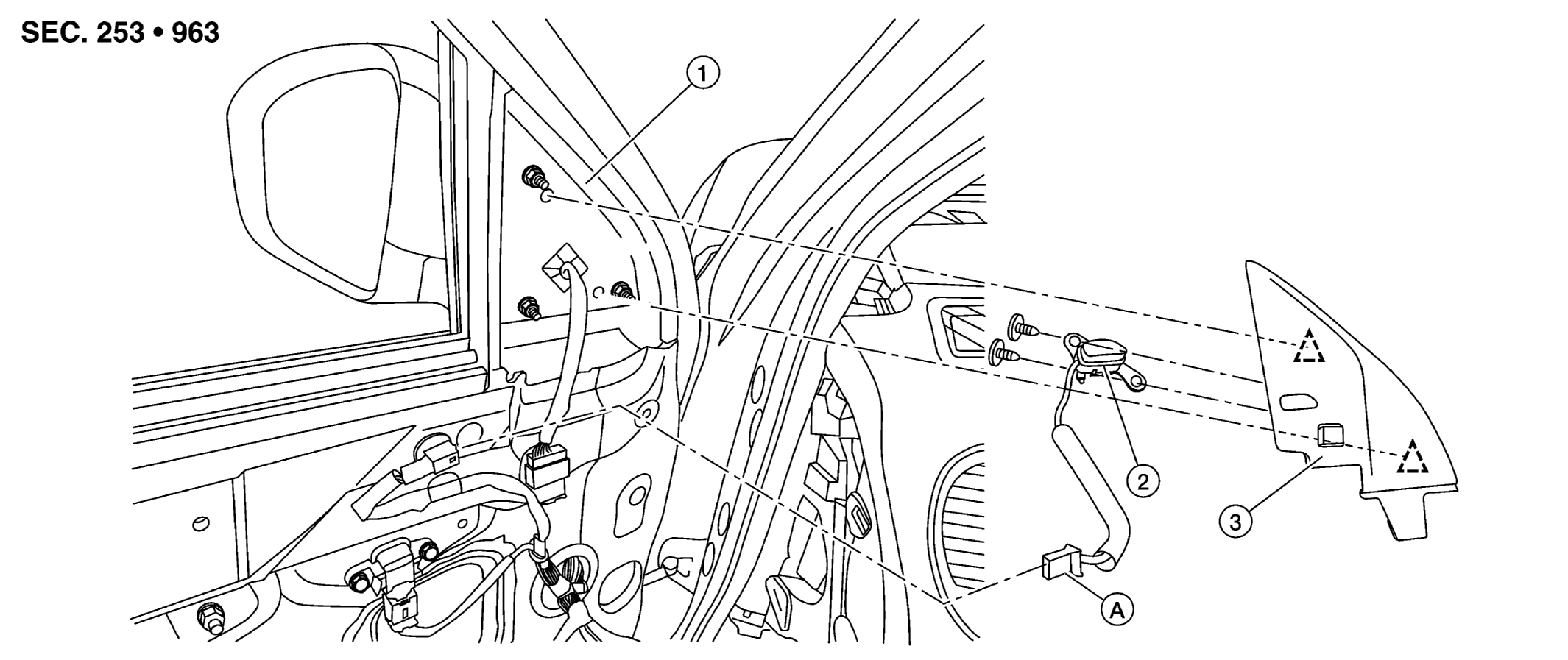

G09428855Courtesy of NISSAN NORTH AMERICA, INC.
1. Front door 2. Blind spot warning indicator 3. Door mirror corner finisher
A. Blind spot warning indicator harness connector SANKAKU-H Clip
