WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

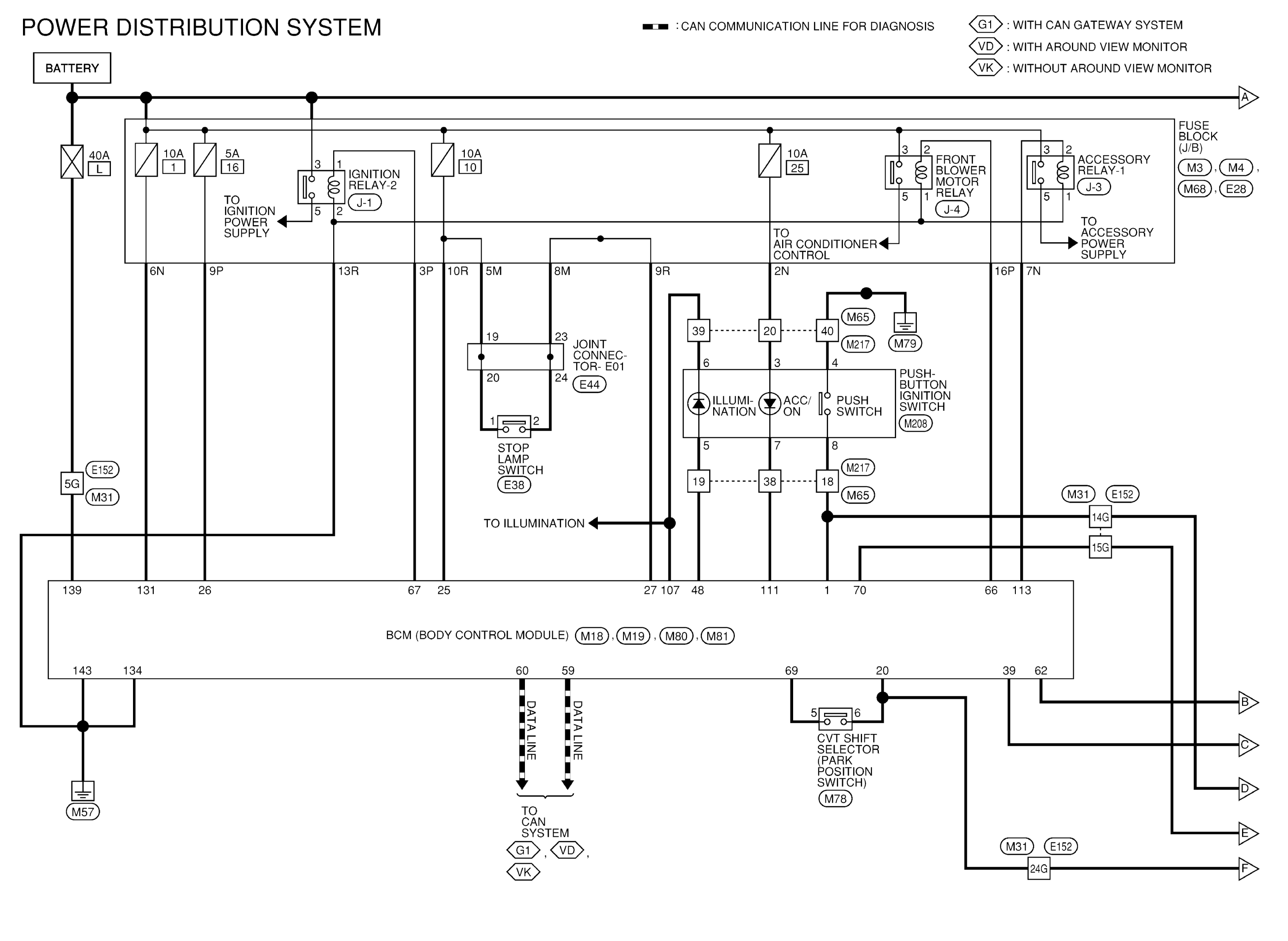

Fig 1: Power Distribution System Wiring Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

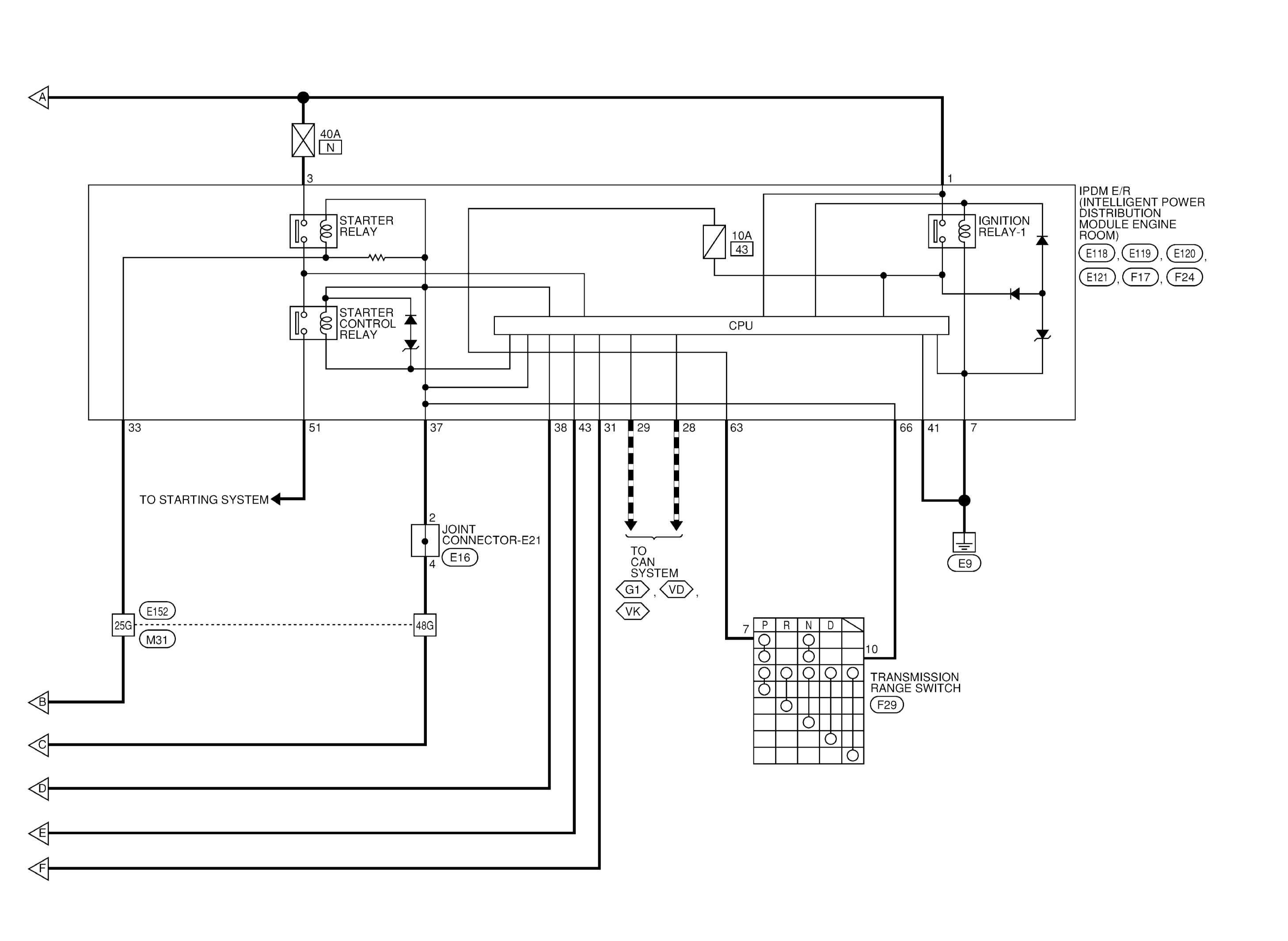

Fig 2: Power Distribution System Wiring Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

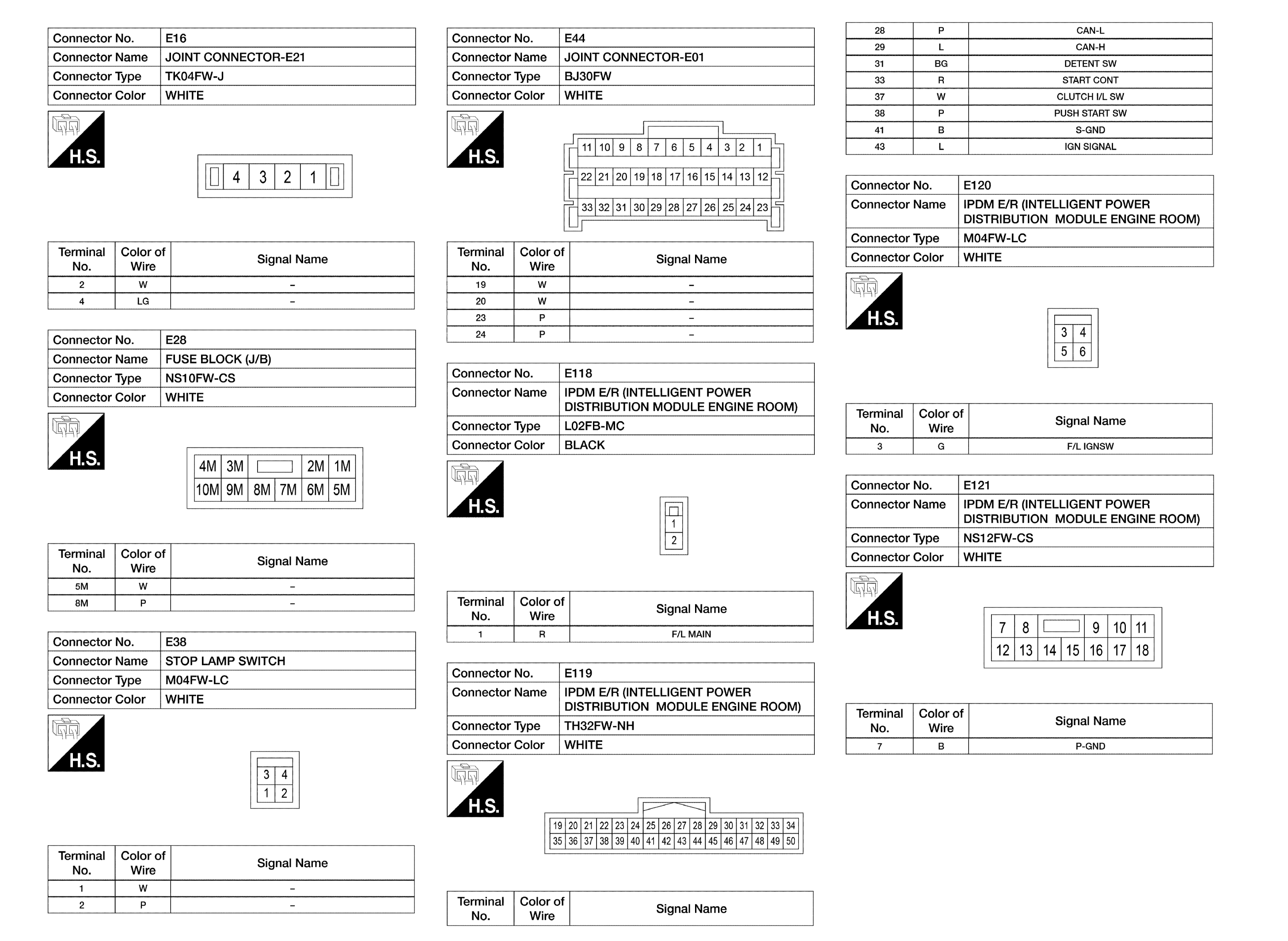

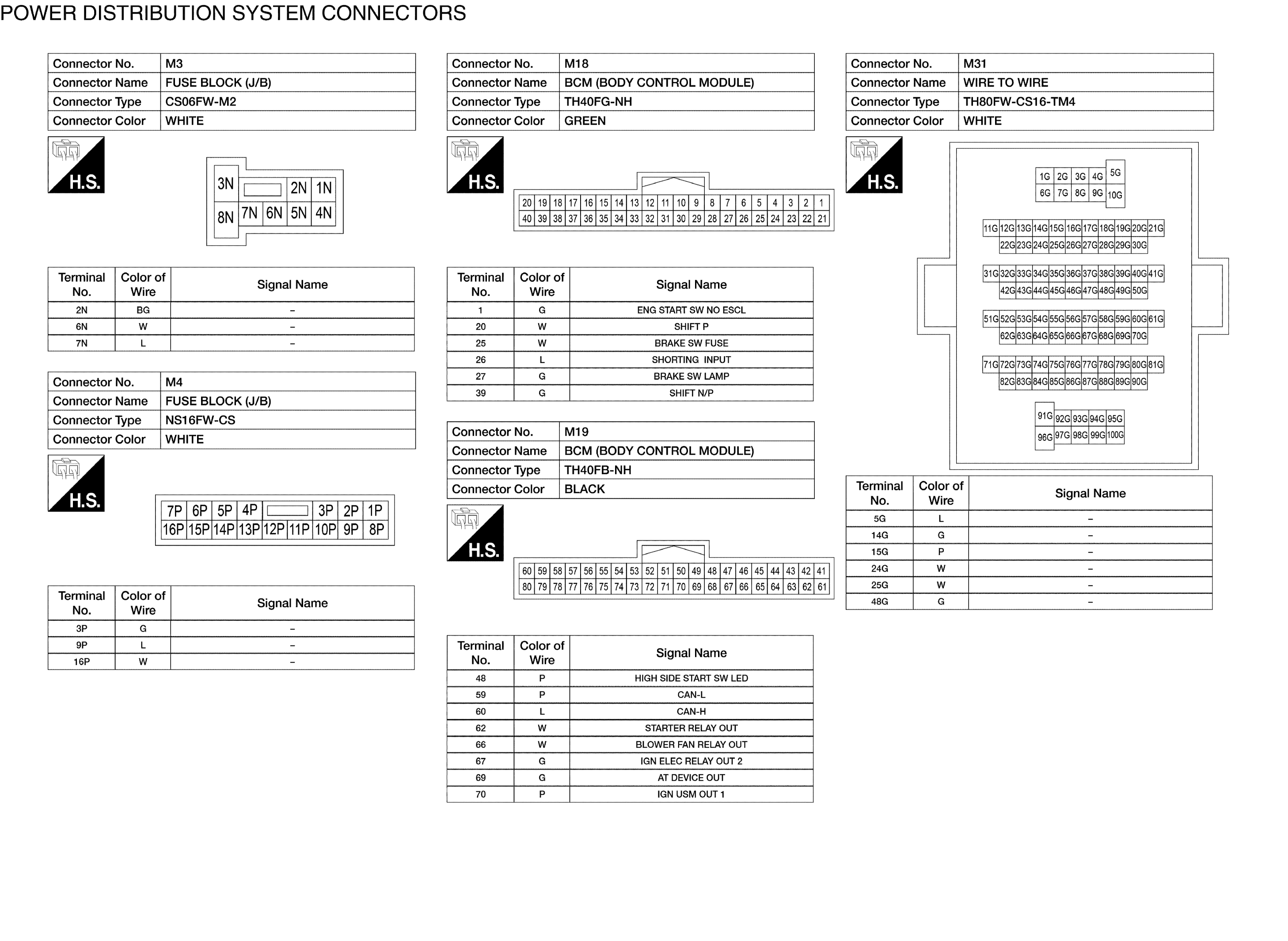

Fig 3: Power Distribution System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

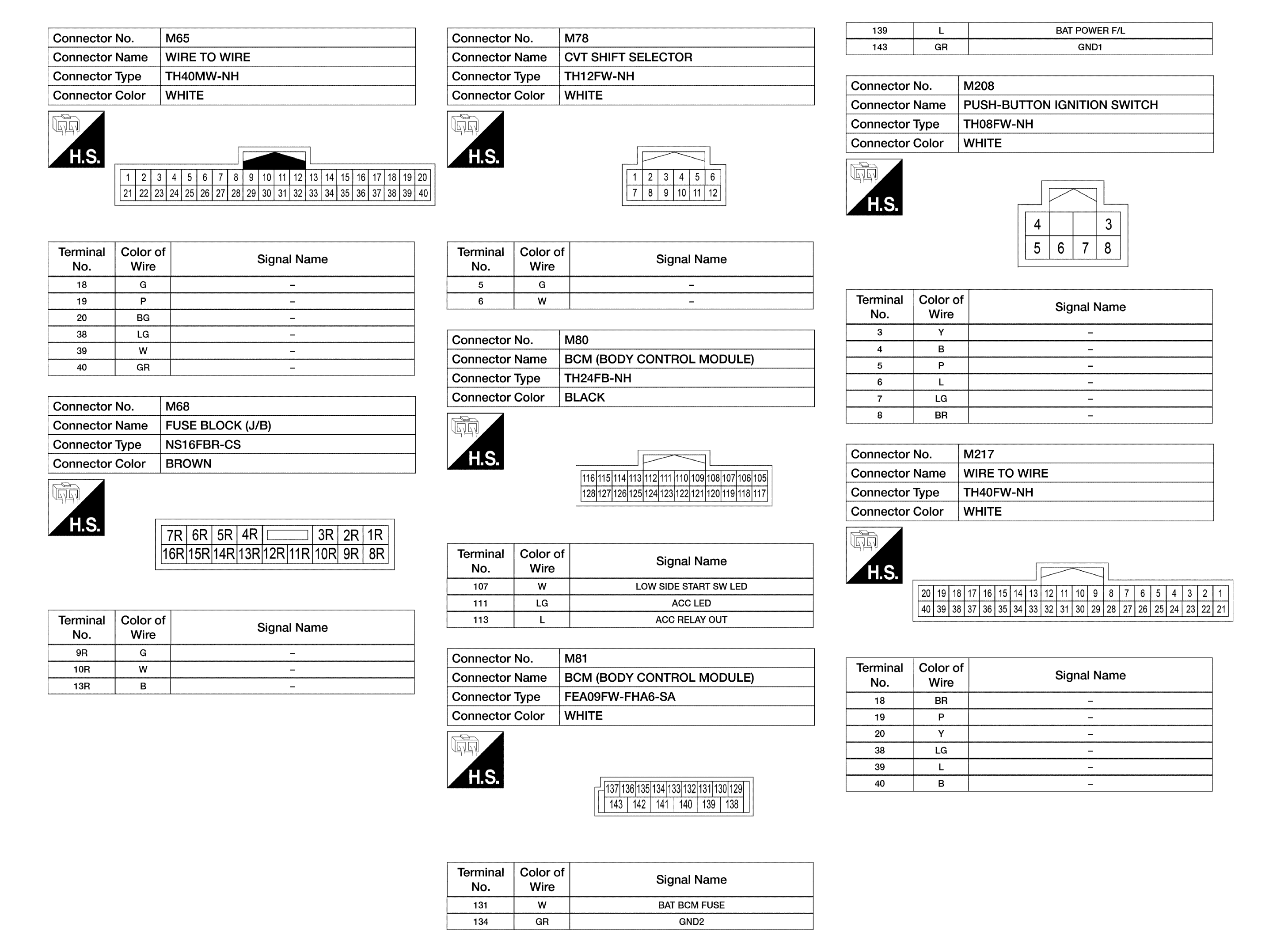

Fig 4: Power Distribution System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

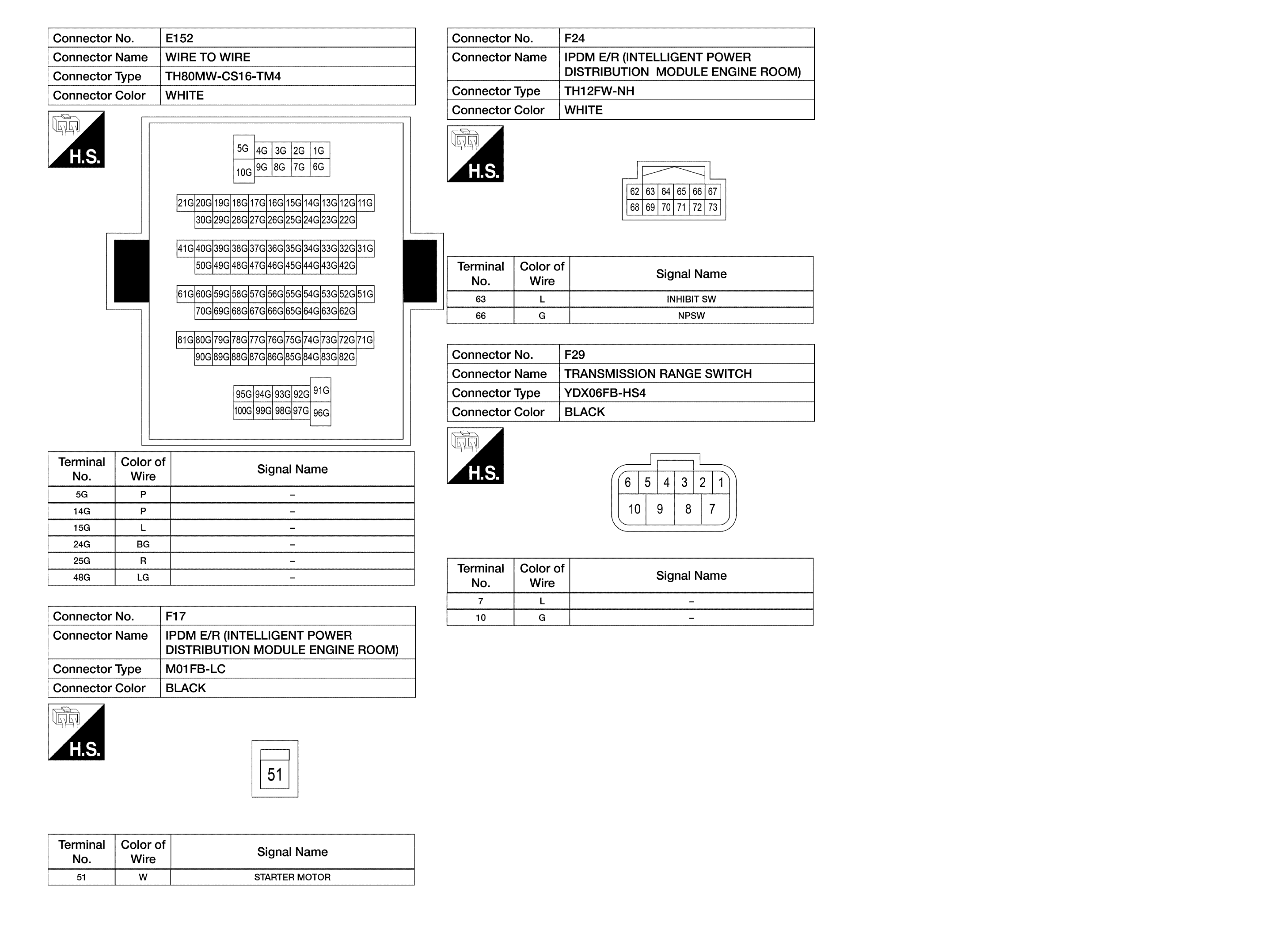

Fig 5: Power Distribution System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Power Distribution System Connector End Views (4 Of 4)
