Exploded View

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

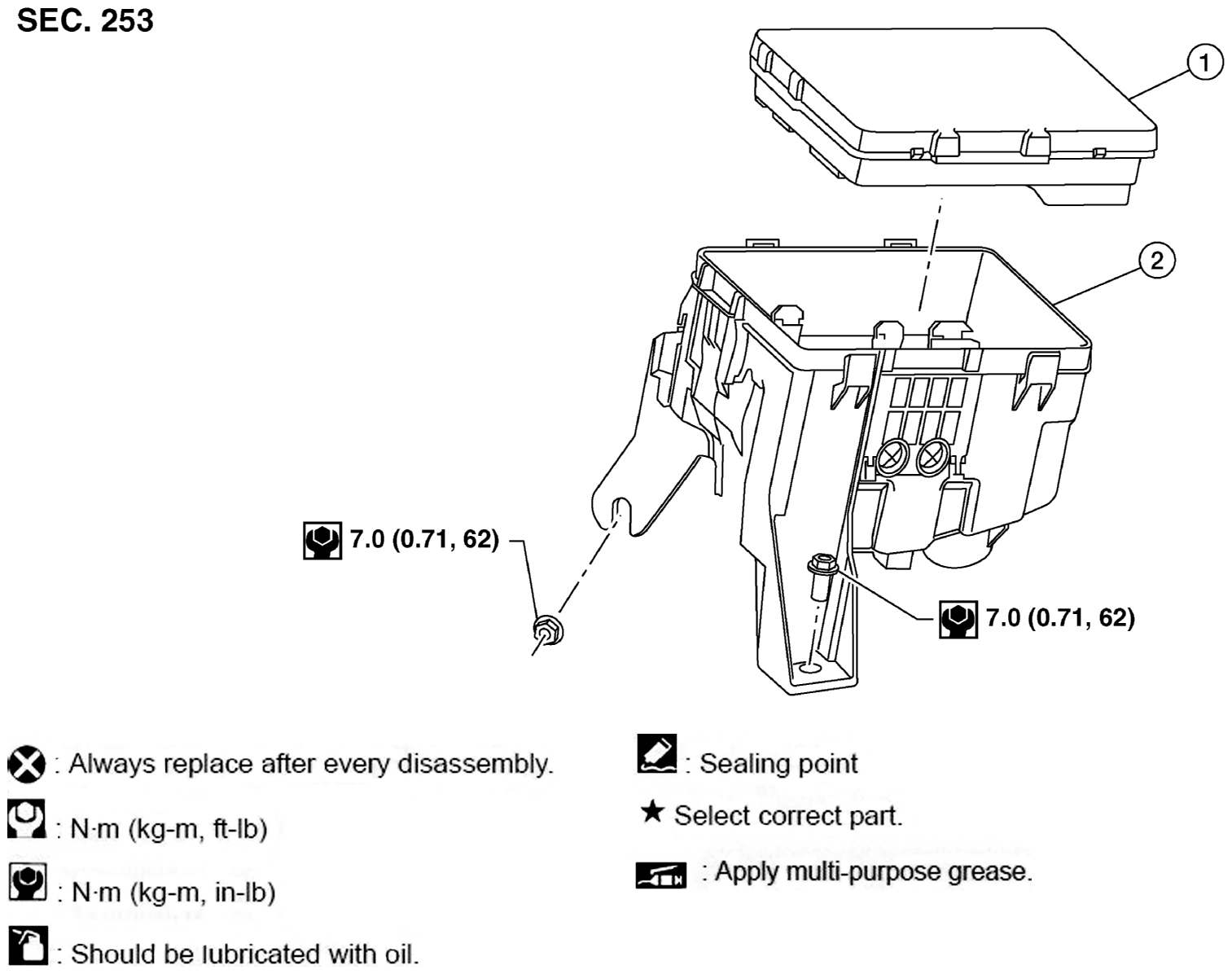

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) With Torque Specifications
GNSALBIA1245ZZ-245Courtesy of NISSAN NORTH AMERICA, INC.
1. IPDM E/R 2. IPDM E/R Case
