Side Radar
>>
Exploded View
Exploded View

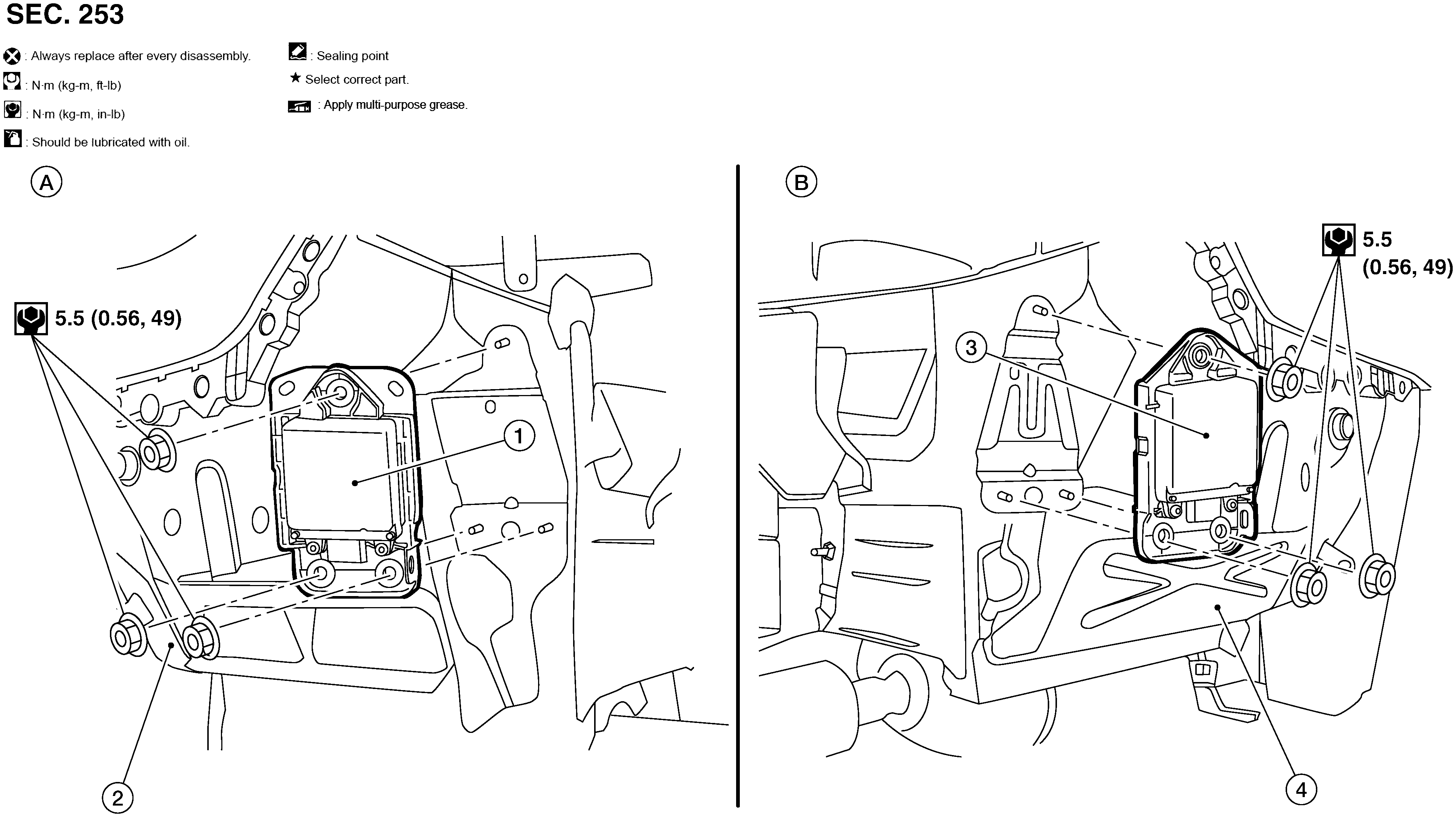

Fig 1: SIDE RADAR With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Side radar (LH)
2.
Rear fender (LH)
3.
Side radar (RH)
4.
Rear fender (RH)
A.
LH side
B.
RH side
Courtesy of NISSAN NORTH AMERICA, INC.
