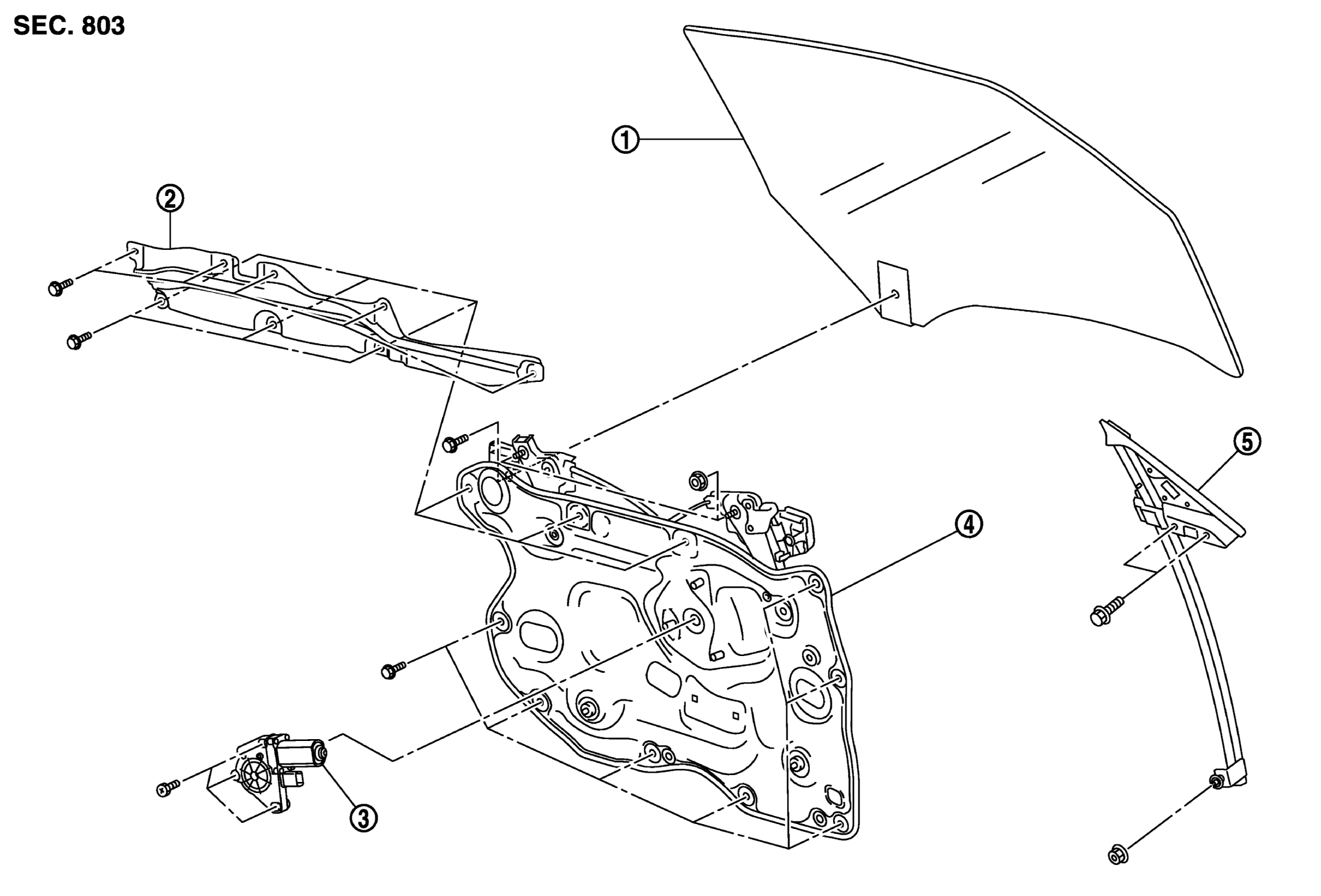

Exploded View With Torque Specifications

GNSJMKIA4645ZZ-645

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Door glass assembly	2.	Door inner stiffener	3.	Power window motor
4.	Module assembly	5.	Corner piece assembly
