Exploded View With Torque Specifications

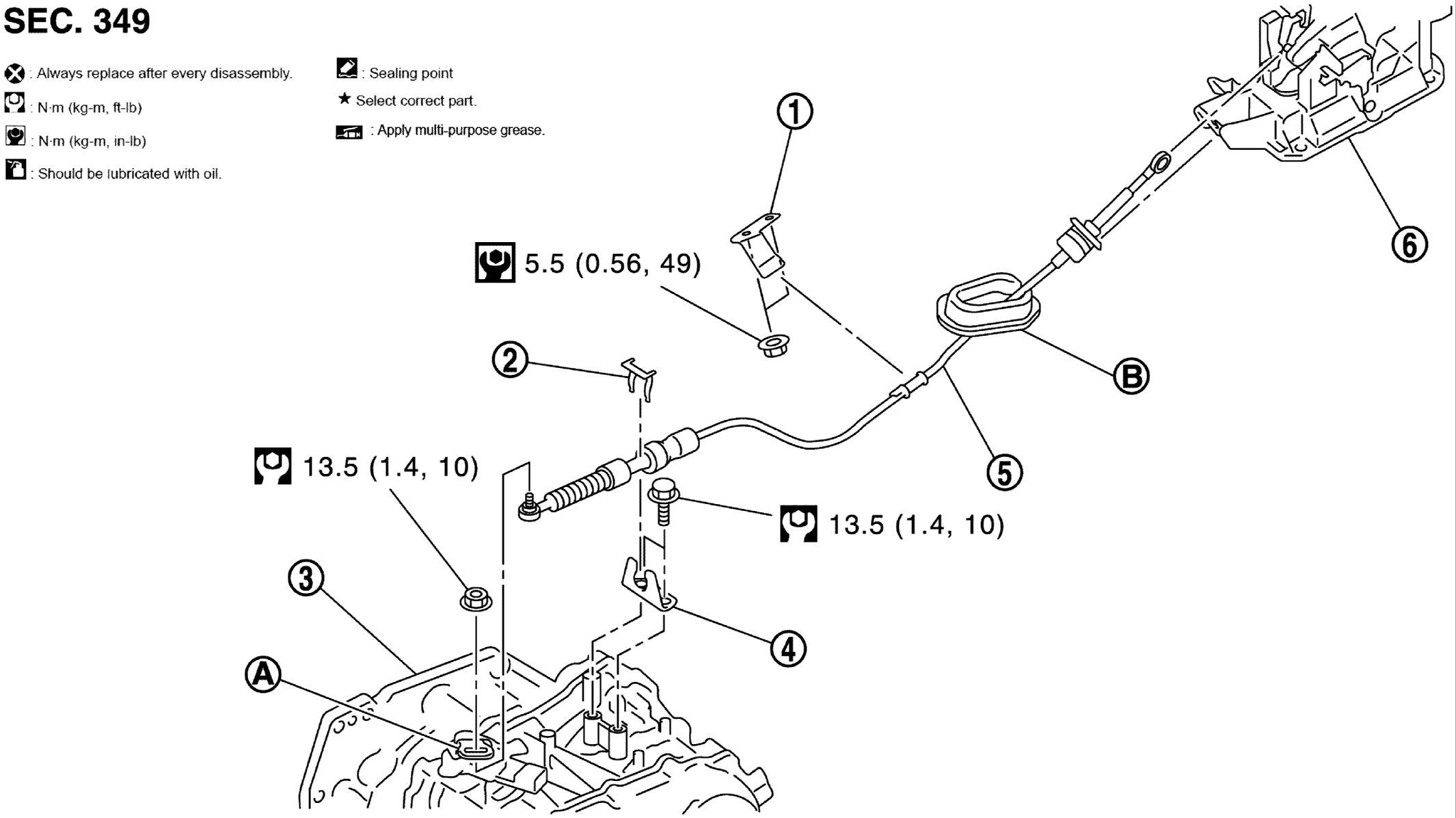

Fig 1: Exploded View Of Control Cable With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bracket B	2.	Lock plate	3.	Transaxle assembly
4.	Bracket A	5.	Control cable	6.	Shift selector assembly
A:	Manual lever	B:	Grommet
